Removal And Installation: Installation

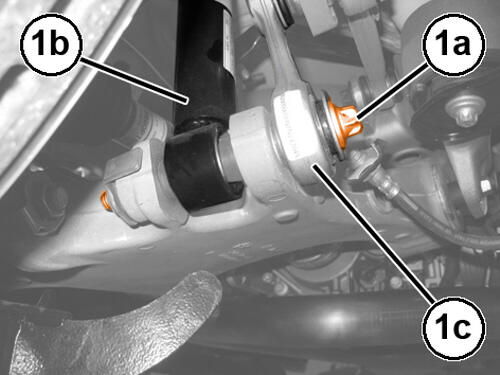

- Position the tension link (1c) in place on the vehicle, feed the upper link stud through the mounting hole in the knuckle.
- Install the lower shock absorber (1b) to knuckle mounting bolt (1a).
- Install the wheel studs on the hub and bearing without tightening.
- Mount the special tool (special tool #2000025100, Measuring Tool, Wheel Centering) (1) on the wheel stud heads.
- Using an appropriate plump-bob (2a) determine and mark the stud curvature (2b) that corresponds to the wheel axle (2c).
- Lift the lower control arm up until the height 366.5 mm between the wheel center (1a) and the corresponding mark on the wheel arch (1b).
- Tighten the shock absorber to knuckle mounting bolt to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Tighten the toe link to knuckle mounting bolt to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Remove the special, tool, Measuring Tool, Wheel Centering 2000025100.
- Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Remove the supports and lower the vehicle.
- Perform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
