Removal And Installation: Removal

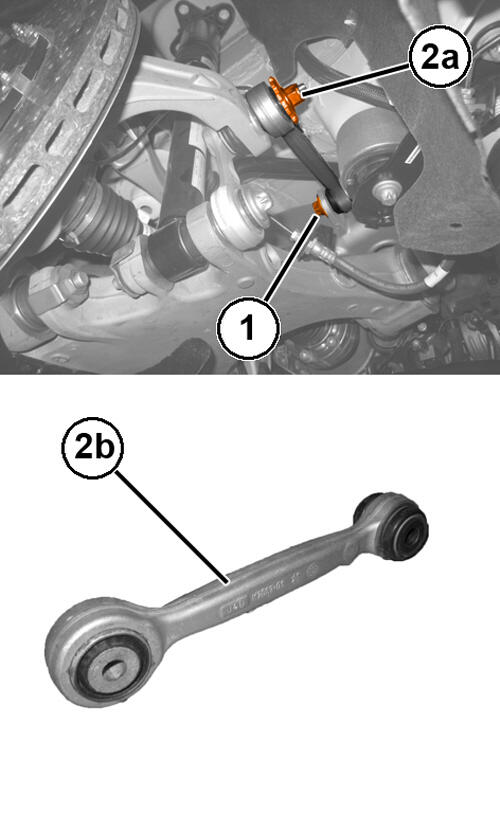

GC0198055Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
  3. Remove and DISCARD  the toe link to crossmember mounting bolt (1).
  4. Remove the toe link to knuckle mounting bolt (2a) and rotate the toe link (2b) down out of the crossmember.
  5. Remove the toe link (2a) from the vehicle.
