QUADRIFOGLIO - Carbon Ceramic: Installation

NOTE:

The rear brake caliper installation process is the same for both sides of the vehicle.

GC0095743Courtesy of CHRYSLER GROUP, LLC

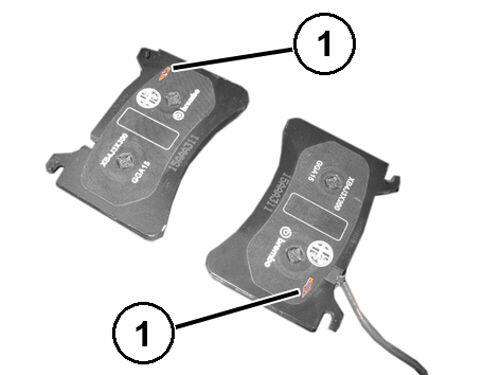

  1. Install the brake pads into the caliper with the arrows (1) facing in the forward direction.
    GC0194131Courtesy of CHRYSLER GROUP, LLC
  2. Install a NEW  anti-rattle spring (2a) into the caliper and insert the brake pad retainer pins (2b).
    GC0193813Courtesy of CHRYSLER GROUP, LLC
  3. Install the electrical harness connector (1b) in the retaining bracket and install a new zip tie (1a).
    GC0194157Courtesy of CHRYSLER GROUP, LLC

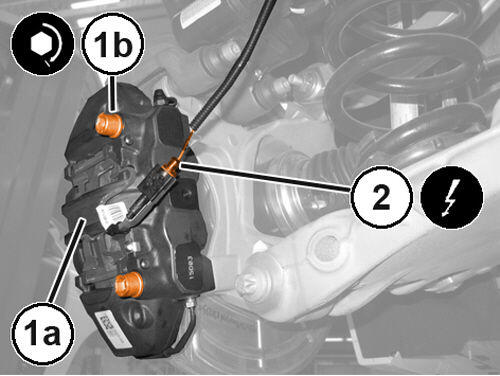

  4. Install the rear brake caliper (1a) complete with brake pads onto the rear knuckle and tighten the brake caliper bolts (1b) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  5. Connect the brake pad wear sensor electrical connector (2).
    GC0193123Courtesy of CHRYSLER GROUP, LLC
  6. Install the brake hose (1b) to the brake caliper and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0195288Courtesy of CHRYSLER GROUP, LLC
  7. Install the hose in the bracket and install the retaining clip (1a) and tighten the brake tube nut (1b) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  8. Remove the brake pedal holding tool.
  9. Bleed the brakes. Refer to STANDARD PROCEDURE .
  10. Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
  11. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  12. Remove the supports and lower the vehicle
