Rear Base: Removal

NOTE:

When replacing the rear brake disc, connect the scan tool to the Data Link Connector (DLC), select "ABS" select "MAINTENANCE MODE".

  1. Disconnect and isolate the negative battery cable.
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Remove the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
    GC0193054Courtesy of CHRYSLER GROUP, LLC

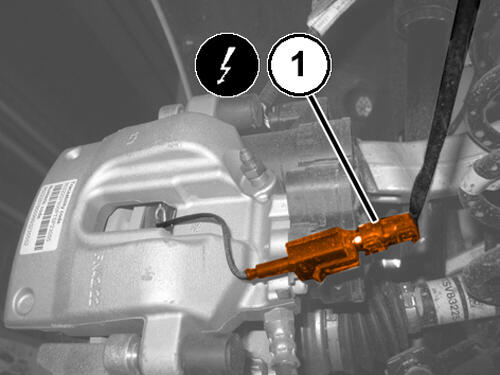

  4. Disconnect the brake pad wear sensor electrical harness connector (1).
    GC0193815Courtesy of CHRYSLER GROUP, LLC

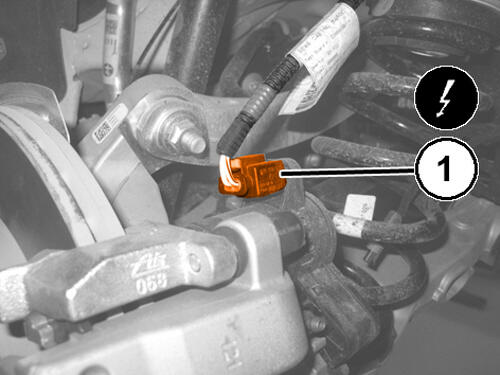

  5. Disconnect the electrical harness connector for the Electric Parking Brake (EPB) actuator on the rear brake caliper.
    GC0198053Courtesy of CHRYSLER GROUP, LLC

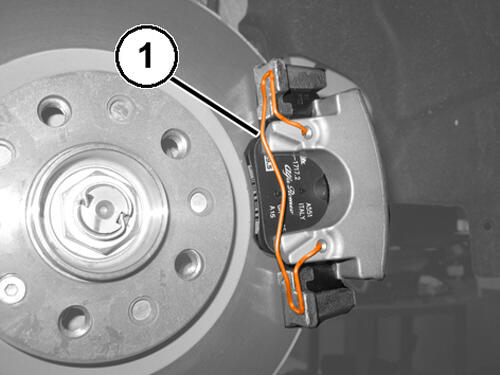

  6. Remove the rear brake caliper retaining clip (1).
    GC0198031Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Secure the rear brake caliper to the suspension spring, taking care not to damage the hose.

  7. Remove the protective cap from the rear brake caliper mounting bolts.

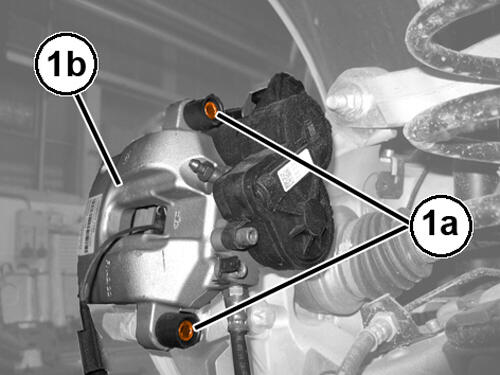

  8. Remove the brake caliper to caliper adapter bracket mounting bolts (1a) and move the rear brake caliper (1b) aside, complete with oil hose.
    GC0195007Courtesy of CHRYSLER GROUP, LLC
  9. Remove the inner and outer brake pads (1).
    GC0193151Courtesy of CHRYSLER GROUP, LLC
  10. Remove the brake caliper adapter bracket to knuckle mounting bolts (1a) and remove the bracket (1b) from the vehicle.
    GC0197486Courtesy of CHRYSLER GROUP, LLC
  11. Remove the rotor to hub and bearing mounting bolt (1a) and remove the rear brake disc (1b) from the vehicle.
