Removal And Installation: Installation

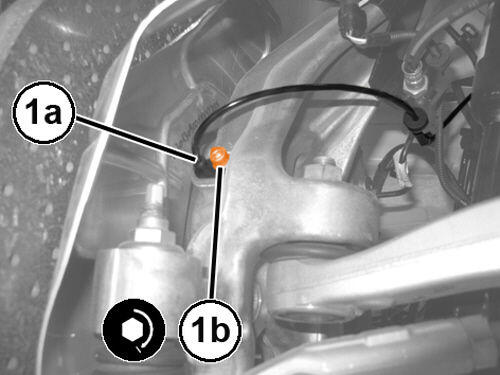

- Position the front wheel speed sensor (1a) back in its housing, install and tighten the mounting screw (1b) to the proper and engage the wiring in the retaining brackets. Refer to TORQUE SPECIFICATIONS
.

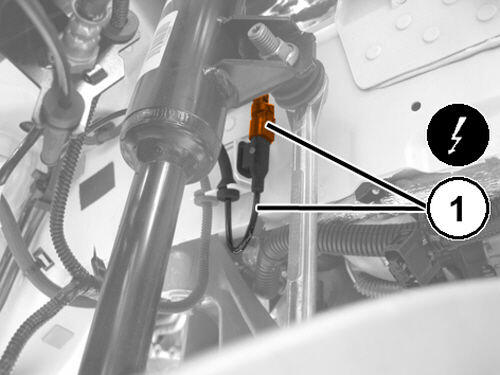

- Connect the electrical harness connector (1) for the right front wheel speed sensor and engage it in the retaining bracket.
- Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- Remove the supports and lower the vehicle.
