Removal And Installation: Installation

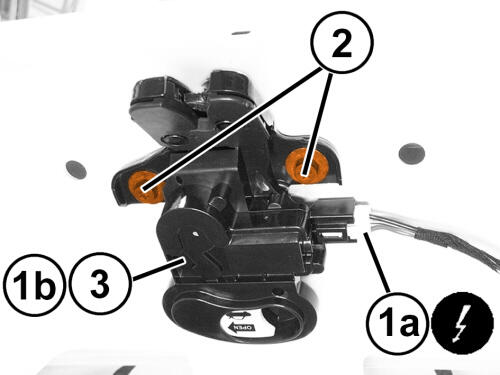

GC0197564Courtesy of CHRYSLER GROUP, LLC
  1. Install the liftgate latch (3) and the bolts (2).
  2. Tighten the liftgate latch bolts securely.
  3. Connect the wire harness connector (1a).
  4. Install the decklid trim panel. Refer to PANEL, TRIM, REMOVAL AND INSTALLATION .
