Removal And Installation: Removal

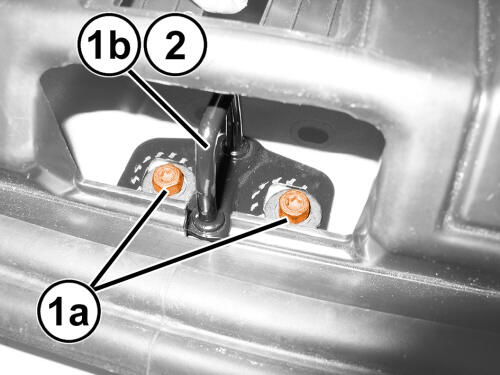

GC0198378Courtesy of CHRYSLER GROUP, LLC
  1. Using a grease pencil or equivalent, mark the position of the decklid striker (1b) to aid in installation.
  2. Remove the two bolts (1a) and the decklid striker.
