Removal And Installation: Secondary: Installation

Courtesy of CHRYSLER GROUP, LLC

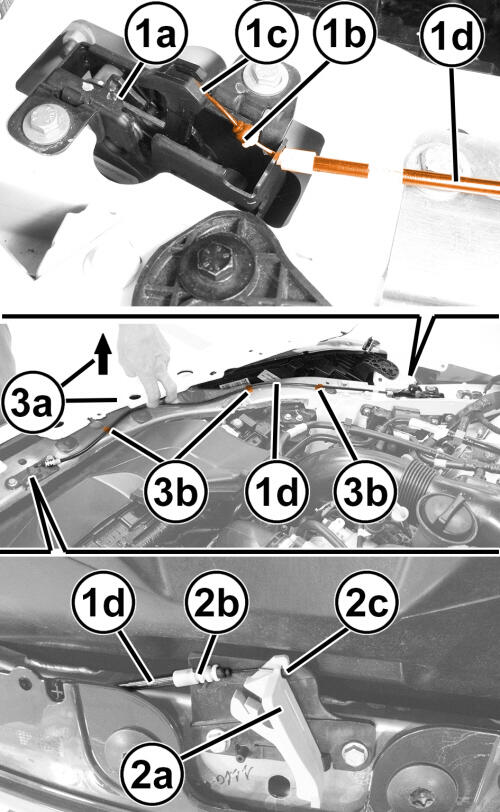

1. Lift the front fascia (3a) and clip the safety latch cable (3b) from the body.
2. Install the safety latch cable (1d) into the safety latch (2a).
3. Install the safety latch cable (1b) into the right hood latch (1a).

   Courtesy of CHRYSLER GROUP, LLC

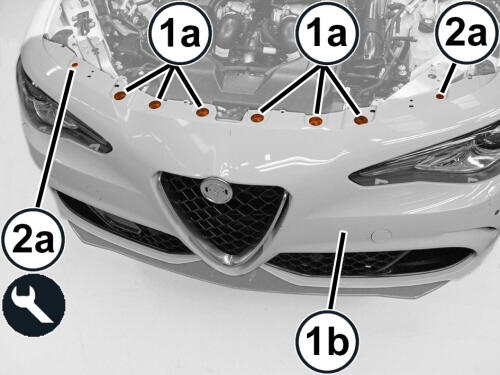

4. Install the front fascia (1b) and the push fasteners (2a).

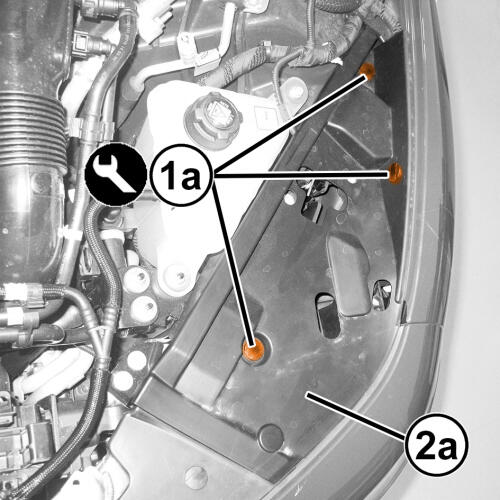

5. Install the screws (1a) and tighten securely.

   Courtesy of CHRYSLER GROUP, LLC

6. Install the hood hinge cover (2a) and the push fasteners (1a).

   Courtesy of CHRYSLER GROUP, LLC

7. Install the cover (2a) and the push fasteners (1a).
