Removal And Installation: Removal

Courtesy of CHRYSLER GROUP, LLC

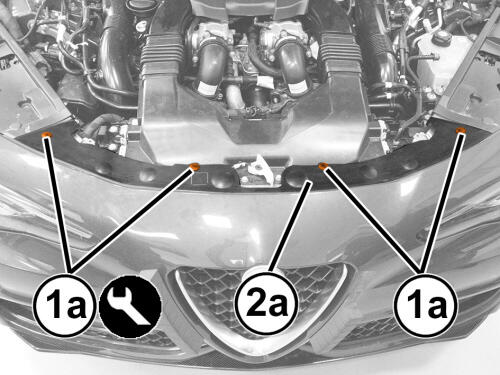

1. Release the push pins (1a) using trim stick (special tool #C-4755, Trim Stick) or equivalent, and remove the cover (2a).

   Courtesy of CHRYSLER GROUP, LLC

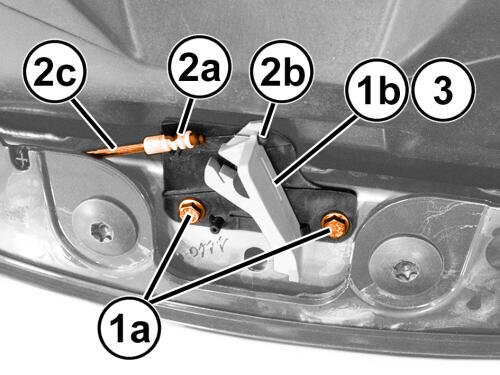

2. Remove the screws (1a) securing the safety latch (1b).
3. Disconnect the retainer (2a) and then the retainer (2b) of the release cable (2c).
4. Remove the safety latch (1b).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

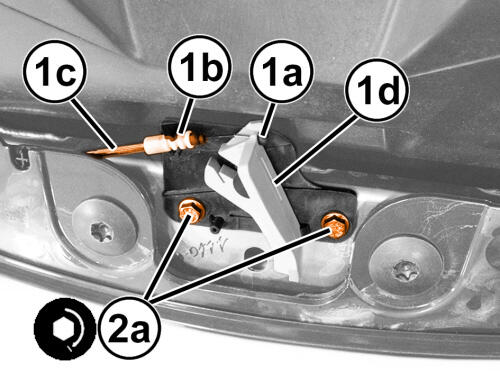

1. Connect the retainer (1a) and then the retainer (1b) of the release cable (1c) to the safety latch (1d).
2. Install the safety latch (1d) then tighten the screws (2a) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

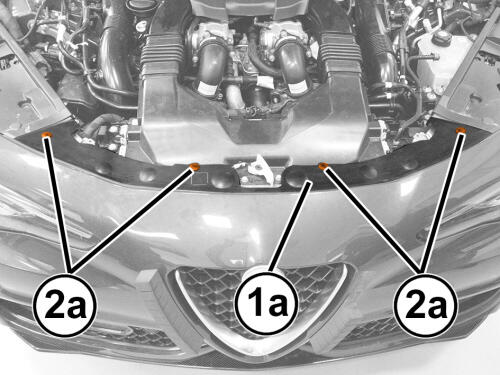

3. Install the front cover (1a).
4. Install the push pins (2a) and seat fully.
