Removal And Installation: Removal
- Disconnect and isolate the negative battery cable.

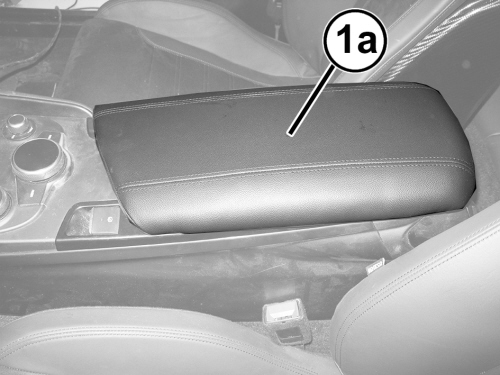

- Open the armrest (1a).

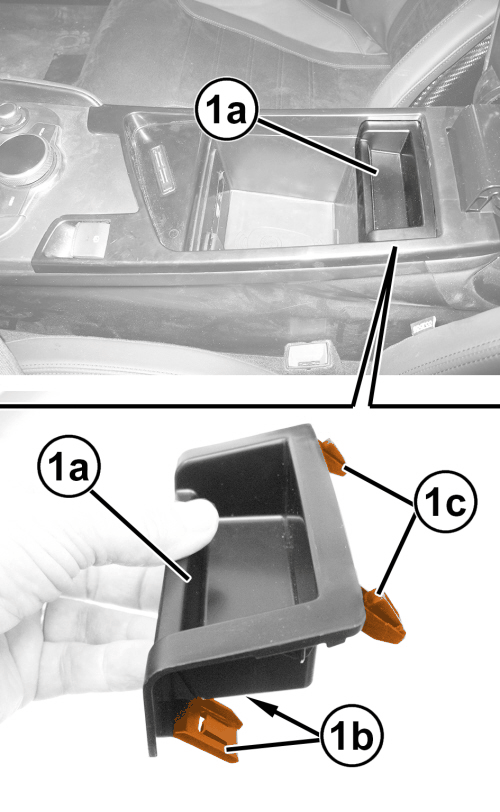

- Using a trim stick or equivalent, release the retaining clips (1b and 1c) and remove the coin holder (1a).

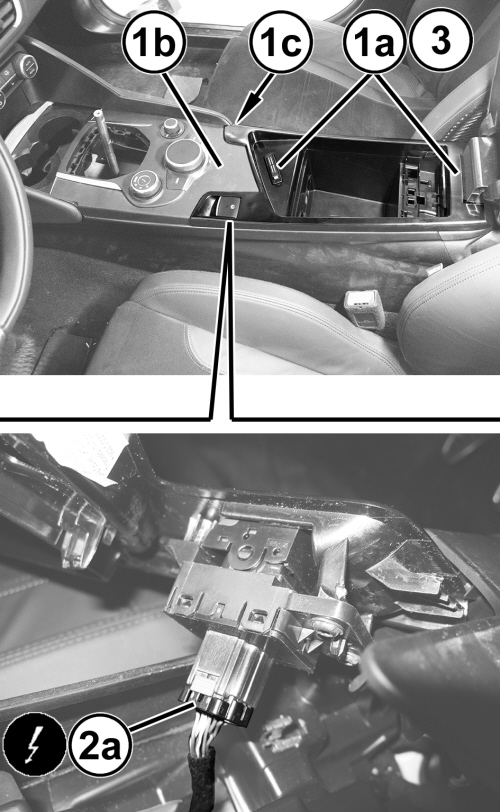

- Using a trim stick or equivalent, loosen the shifter bezel (1b) and the storage bin (1a) where they meet at area (1c).
- Lift up the storage bin and disconnect the wire harness connector (2a), and remove.
