Removal And Installation: Removal

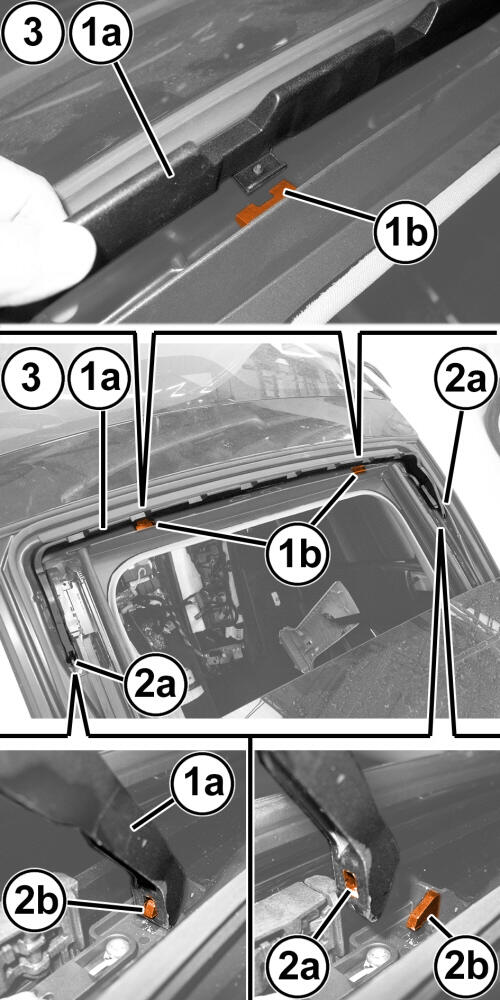

GC0193729Courtesy of CHRYSLER GROUP, LLC
  1. Move the front glass into the full open position.
  2. Lift the wind deflector (1a) upwards, releasing it from its two plastic retainers (1b).
  3. Rotate the wind deflector up to align the feature (2a) and remove the it from the frame (2b).
