Manual Sunshade: Removal

Courtesy of CHRYSLER GROUP, LLC

NOTE:

It is not necessary to completely remove the headliner from the vehicle.

Lower the headliner, in vehicle. Refer to HEADLINER, REMOVAL AND INSTALLATION .

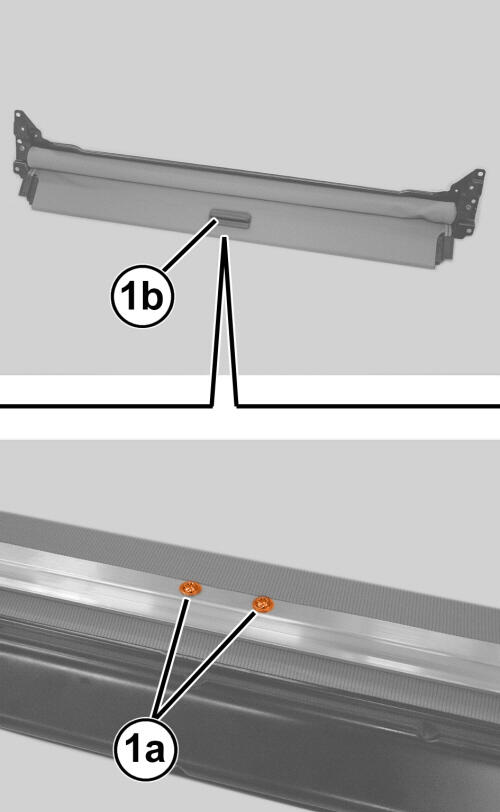

Remove the screws (1a) at each side of the sunshade (1b).

Courtesy of CHRYSLER GROUP, LLC

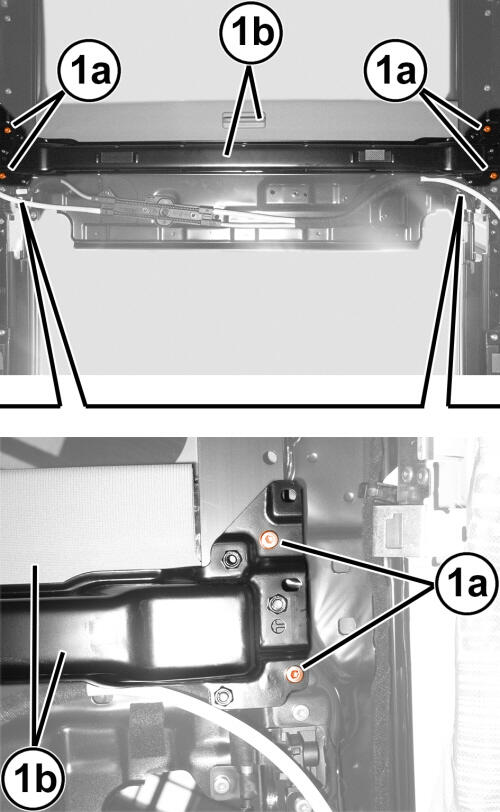

Lower the sunshade and remove the end slides (1b) from the guides on the sunroof frame.

Courtesy of CHRYSLER GROUP, LLC

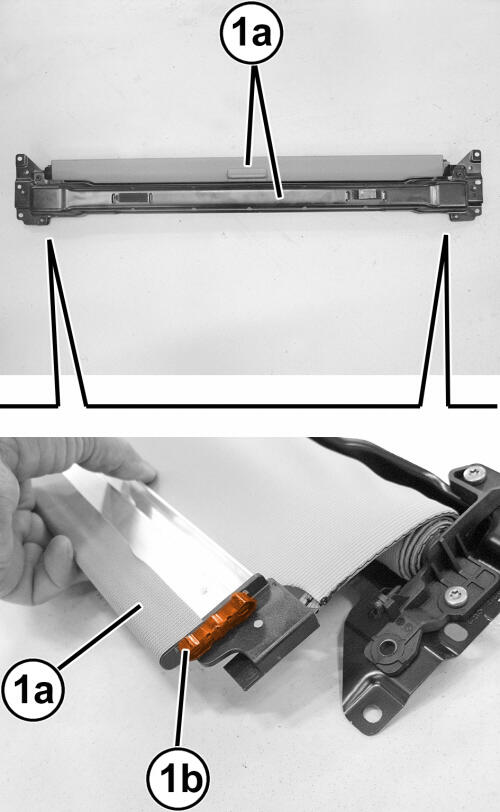

If necessary to remove the handle, remove the screws (1a) then the handle (1b).
