Removal And Installation: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable.
2. Remove the rear door glass channel weatherstrip. Refer to CHANNEL, DOOR GLASS, REAR, REMOVAL AND INSTALLATION  Refer to, CHANNEL, DOOR GLASS WEATHERSTRIP, REMOVAL AND INSTALLATION .
3. Remove the outer belt molding. Refer to MOLDING, DOOR BELT, INNER, REMOVAL AND INSTALLATION  Refer to, MOLDING, DOOR BELT, OUTER, REMOVAL AND INSTALLATION .
4. Remove the screws (1a) for the stationary glass (1b).
5. Remove the stationary glass (1b), releasing its retainers (2a).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

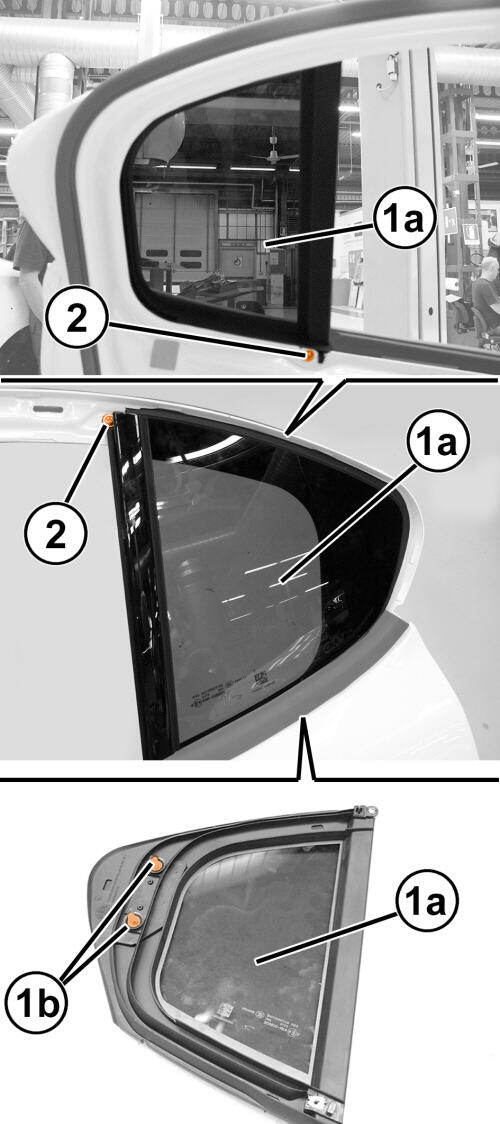

1. Position the stationary glass (1a) and engage its retainers (1b).
2. Tighten the screws (2) fastening the stationary glass.
3. Remove the outer belt molding. Refer to MOLDING, DOOR BELT, INNER, REMOVAL AND INSTALLATION  Refer to, MOLDING, DOOR BELT, OUTER, REMOVAL AND INSTALLATION .
4. Remove the rear door glass channel weatherstrip. Refer to CHANNEL, DOOR GLASS, REAR, REMOVAL AND INSTALLATION  Refer to, CHANNEL, DOOR GLASS WEATHERSTRIP, REMOVAL AND INSTALLATION .
5. Connect the negative battery cable.
