Removal And Installation: Installation

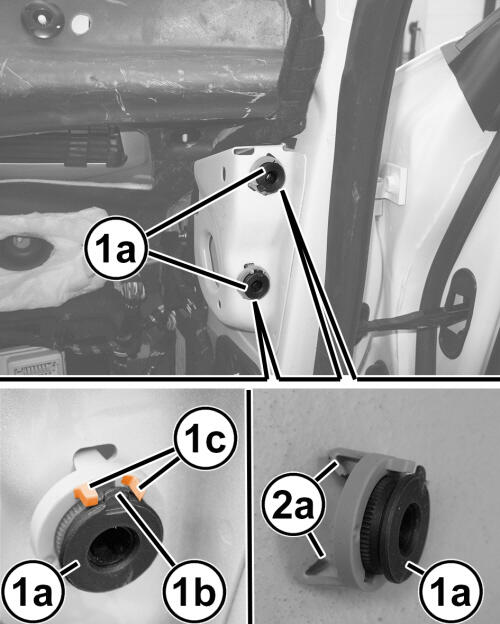

GC0197652Courtesy of CHRYSLER GROUP, LLC
  1. Verify that the four centering bushings (1a) are fully screwed in until the tab (1b) is between the stop (1c).
    NOTE:

    The resetting of the centering bushings allows the instrument panel carrier to be installed properly.

    NOTE:

    Inspect the centering bushings and replace if necessary.

  2. Position the instrument panel carrier into the vehicle.
    NOTE:

    Make sure that all wiring harnesses are routed properly and are not pinched when installing the instrument panel carrier.

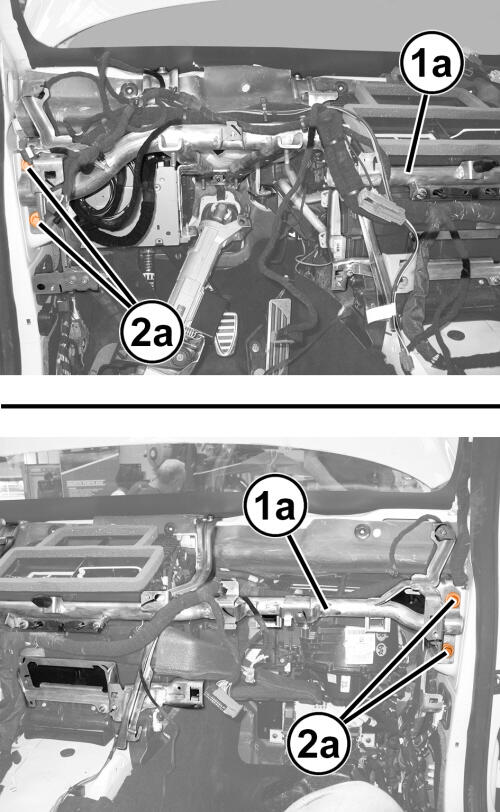

    GC0197926Courtesy of CHRYSLER GROUP, LLC
  3. Start the bolts (2a) on both sides of the vehicle. Do not tighten the bolt until the instrument panel carrier (1a) is positioned properly.
  4. Once all four bolts are secured, tighten the instrument panel carrier bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0197611Courtesy of CHRYSLER GROUP, LLC
  5. Install the nut (1a) and tighten securely.
  6. Tighten the bolts (2a).
    GC0198096Courtesy of CHRYSLER GROUP, LLC
  7. Install the brackets (3a). tighten the bolts (1a and 2a) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0197838Courtesy of CHRYSLER GROUP, LLC
  8. On the right side of vehicle, install the ground strap (2c) and nut.
  9. Connect the wire harness connectors (2a, 2b and 2c).
  10. Connect the wire harness connectors (1a and 1b) to the body control module.
    GC0198269Courtesy of CHRYSLER GROUP, LLC
  11. In the engine compartment, install the bolts (1b) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  12. Install the cowl cover panel and wiper arms. Refer to COVER, COWL PANEL, REMOVAL AND INSTALLATION .
    GC0197690Courtesy of CHRYSLER GROUP, LLC
  13. Install the nut (1a) and tighten the bolts (2a). Tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0197765Courtesy of CHRYSLER GROUP, LLC
  14. Install the nuts (1a) that secure the air conditioning case (1b) and tighten securely.
    GC0197976Courtesy of CHRYSLER GROUP, LLC
  15. Connect the wire harness connectors (1a) to the steering wheel lock module (1b).
    GC0198205Courtesy of CHRYSLER GROUP, LLC
  16. Install the steering column nuts (1a and 1b) and tighten to the proper torque specification.
    GC0197816Courtesy of CHRYSLER GROUP, LLC
  17. On the left side of vehicle, connect the wire harness connectors (1a, 1b, 1c and 1d).
    GC0197879Courtesy of CHRYSLER GROUP, LLC
  18. Route and secure the wire harness (3b) to the body clips (3a).
  19. Install the ground strap (2a) and tighten the nut securely.
  20. Connect the wiring harness connector (1a) to the airbag control module (1b).
  21. Install the instrument panel cover. Refer to COVER, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
