Removal - Rear Door

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable.
2. Refer to PLATE, CARRIER, REMOVAL AND INSTALLATION .
3. Refer to HANDLE, EXTERIOR, REMOVAL AND INSTALLATION  or HANDLE, EXTERIOR, SUPPORT, REMOVAL AND INSTALLATION  or HANDLE, INTERIOR, REMOVAL AND INSTALLATION .

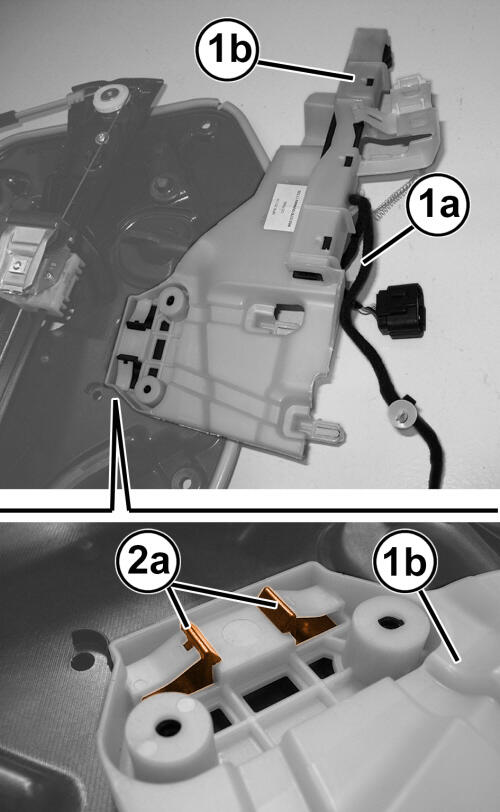

4. Release the wiring (1a) from the rear guide (1b).
5. Remove the rear guide (1b), releasing the retainers (2a) from the support frame.

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

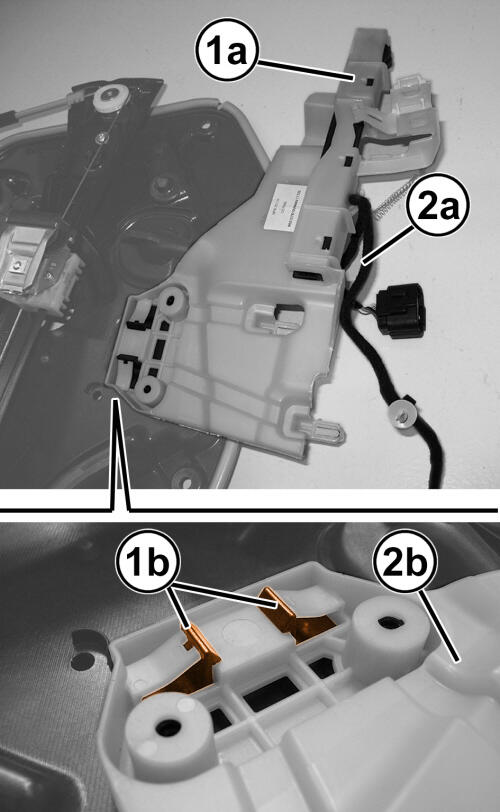

1. Position the rear guide (1a) and engage the retainers (1b) with the support frame.
2. Engage the wiring (2a) in the rear guide (2b).
3. Refer to LATCH, DOOR, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
