Removal And Installation: Removal

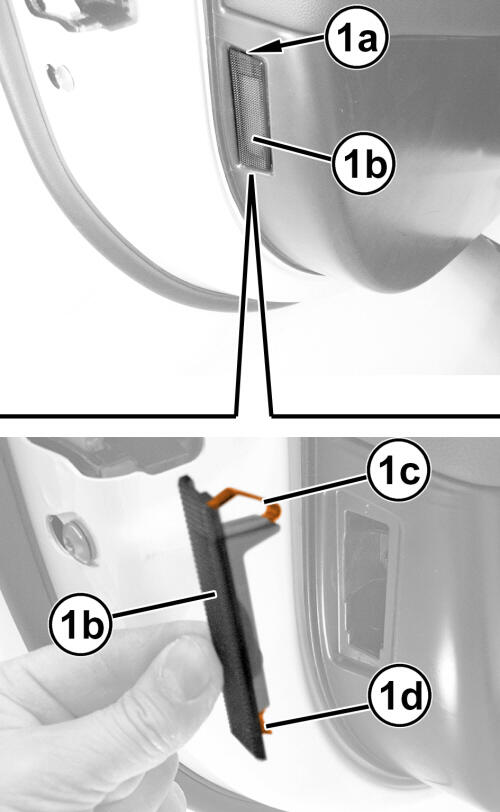

GC0195425Courtesy of CHRYSLER GROUP, LLC
  1. Insert a screwdriver in the recess (1a) and remove the reflector (1b) by disengaging the flexible retainer (1c) and the rigid retainer (1d).

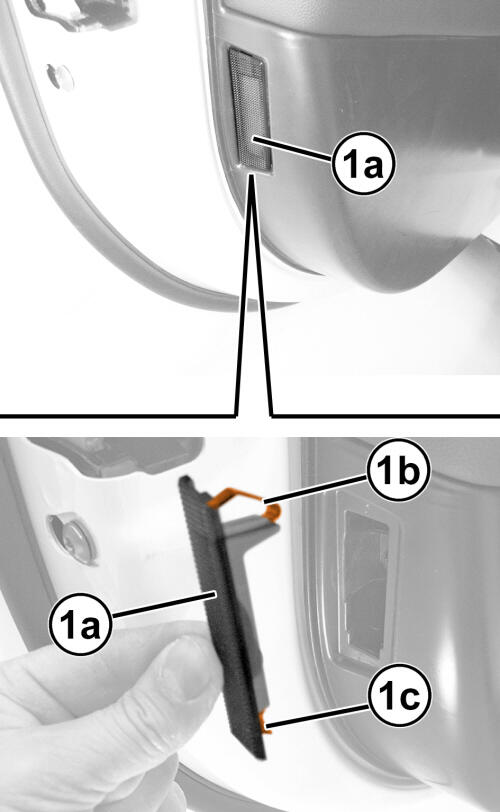

GC0193617Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

  1. Position the reflector (1a) and engage its retainers (1b, 1c).
