Removal And Installation: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Remove the door latch. Refer to LATCH, DOOR, REMOVAL AND INSTALLATION .

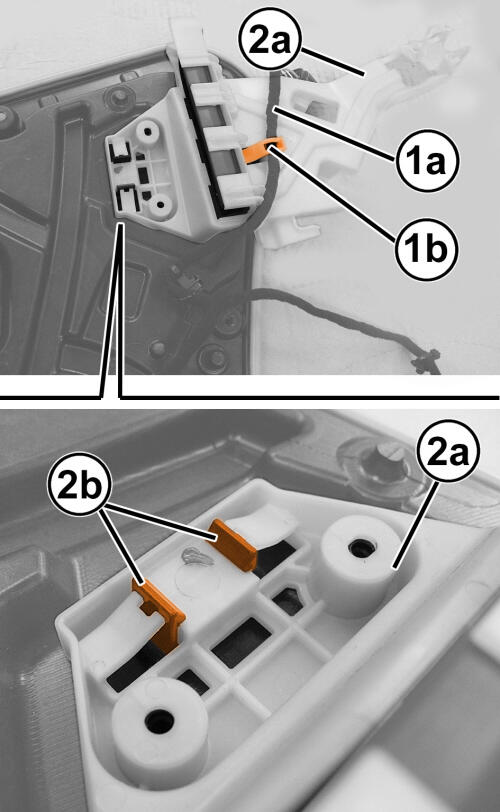

2. Disengage the wiring (1a) from the retainer (1b).
3. Remove the rear guide (2a), releasing the retainers (2b) from the support frame.

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

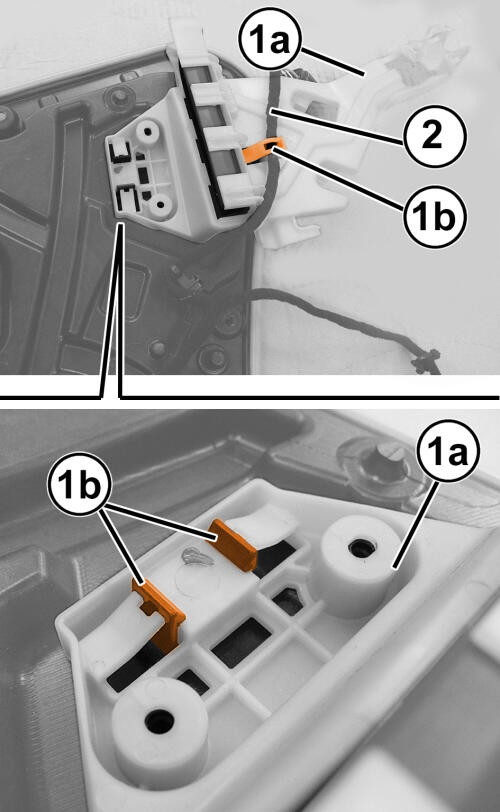

1. Position the rear guide (1a) and engage the retainers (1b) with the support frame.
2. Engage the wiring with the retainer.
3. Install the door latch. Refer to LATCH, DOOR, REMOVAL AND INSTALLATION .
