Removal And Installation: Removal.

Courtesy of CHRYSLER GROUP, LLC

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect and isolate the negative battery cable.
3. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

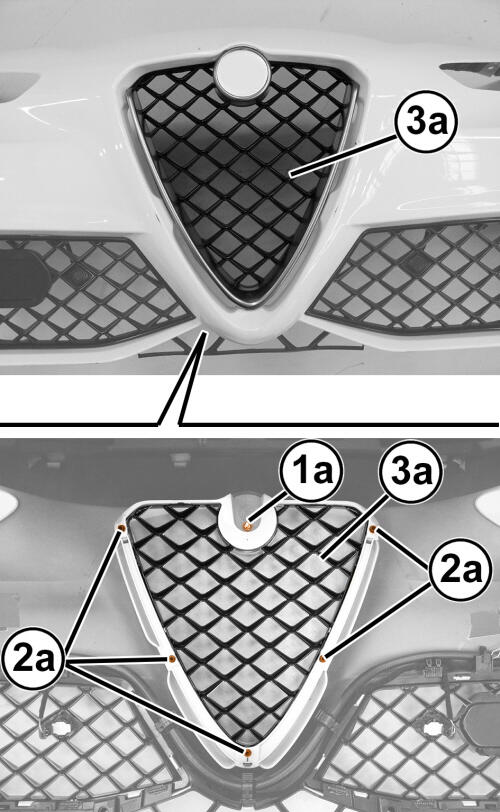

4. Working inside the front fascia, undo the nut (1a).
5. Undo the screws (2a).
6. Remove the badge (3a) from the seat.

Courtesy of CHRYSLER GROUP, LLC

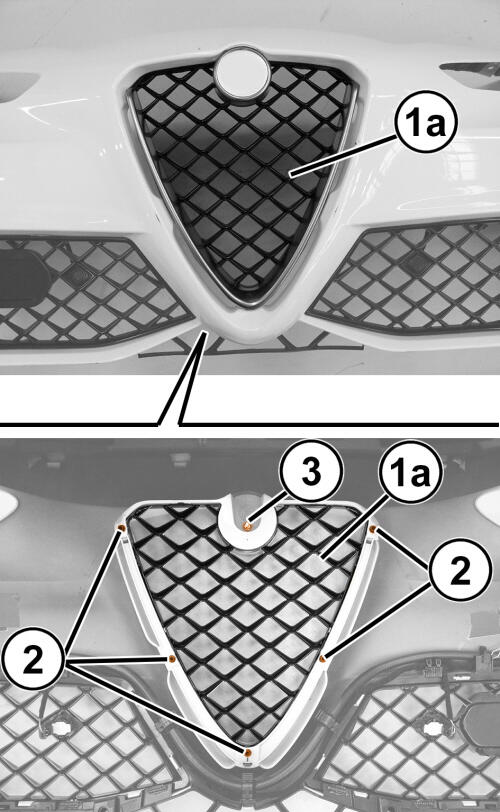

INSTALLATION

1. Position the badge (1a) and engage it in its seat.
2. Tighten the screws.
3. Tighten the nut.
4. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
5. Connect the negative battery cable.
