Removal And Installation: Removal

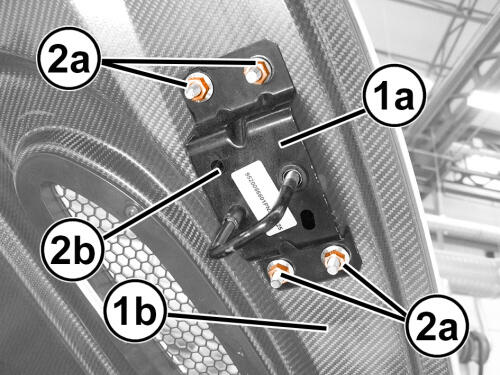

GC0198158Courtesy of CHRYSLER GROUP, LLC
  1. Using a grease pencil or equivalent, mark the position of the hood striker (1a) to aid in installation.
  2. Remove the nuts (2a) and the hood striker from the hood (1b).
