Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

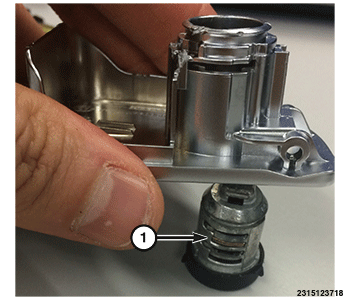

Install the lock cylinder (1) into the handle.

Courtesy of CHRYSLER GROUP, LLC

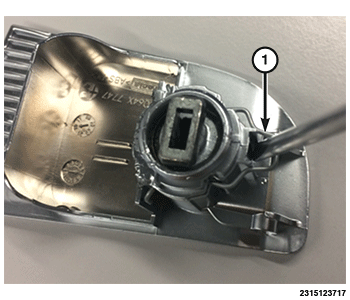

Install the lock spring (1).

Courtesy of CHRYSLER GROUP, LLC

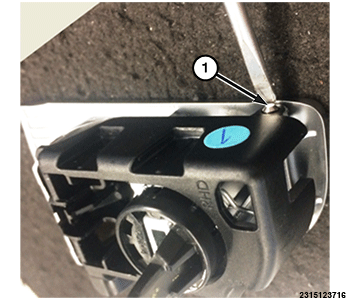

Install the rear cover and pin (1).
Install the glove box handle. Refer to HANDLE, GLOVE BOX, WITH LOCK, REMOVAL AND INSTALLATION Refer to, HANDLE, GLOVE BOX, WITHOUT LOCK, REMOVAL AND INSTALLATION .
