Removal And Installation: Removal

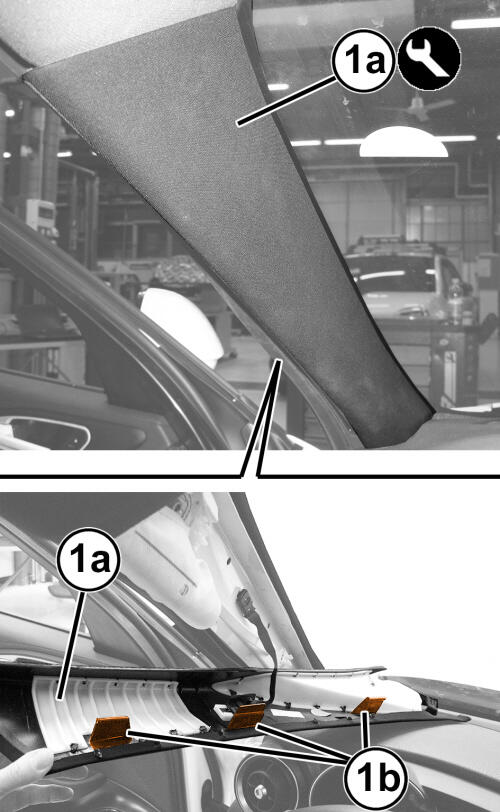

GC0198551Courtesy of CHRYSLER GROUP, LLC
  1. Using a trim stick or equivalent, released the A-pillar trim retaining clips (1b) and lower the trim panel (1c).

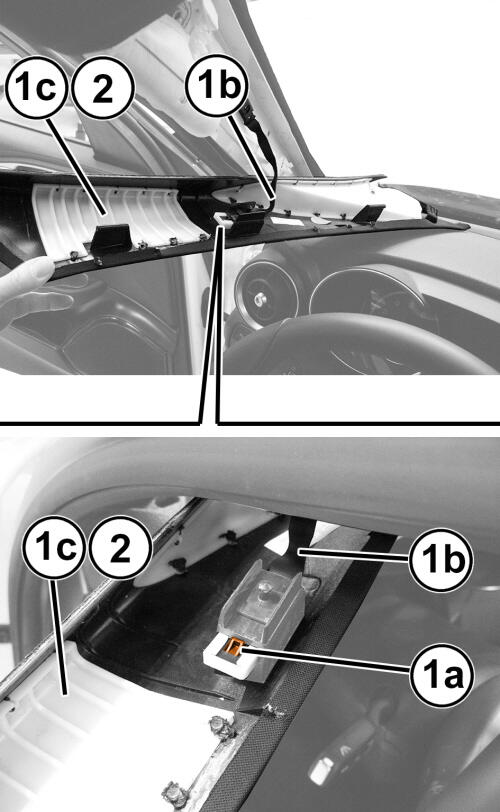

    GC0193541Courtesy of CHRYSLER GROUP, LLC
  2. Using a small flat bladed tool, release the tether clip (1a) and pull it out (1b) from the bottom, then remove the A-pillar trim panel.
