Removal And Installation: Installation

GC0197673Courtesy of CHRYSLER GROUP, LLC

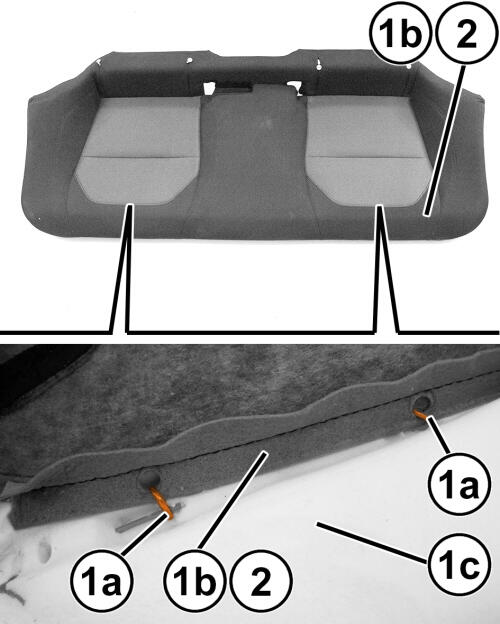

  1. Position the seat cushion cover (1b) onto the seat cushion foam (1c) and install new hog rings (1a).
    GC0198014Courtesy of CHRYSLER GROUP, LLC

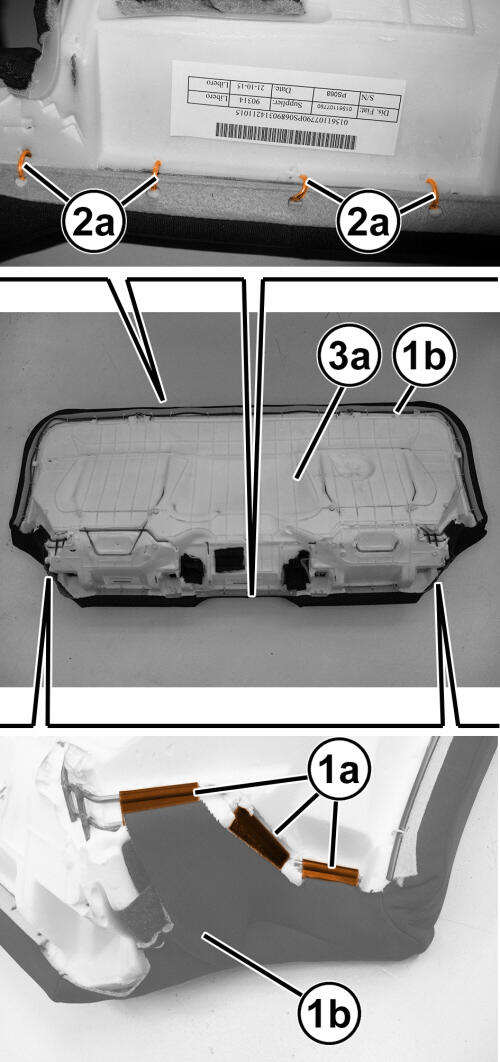

  2. Secure all the J-hook retainers (1a) to the seat cushion frame (3a).
  3. From the bottom, pull the cover (1b) tight and install new hog rings (2a).
  4. Install the rear seat cushion. Refer to SEAT CUSHION, REMOVAL AND INSTALLATION .
