Description And Operation: Exterior
This vehicle can be equipped with three types of mirrors:
- A basic level mirror with electronic adjustment options
- A mid level mirror with electronic adjustment options and power folding.
- A top level mirror with electronic adjustments, power folding, memory function and a Blind Spot Monitor (BSM) functionality.

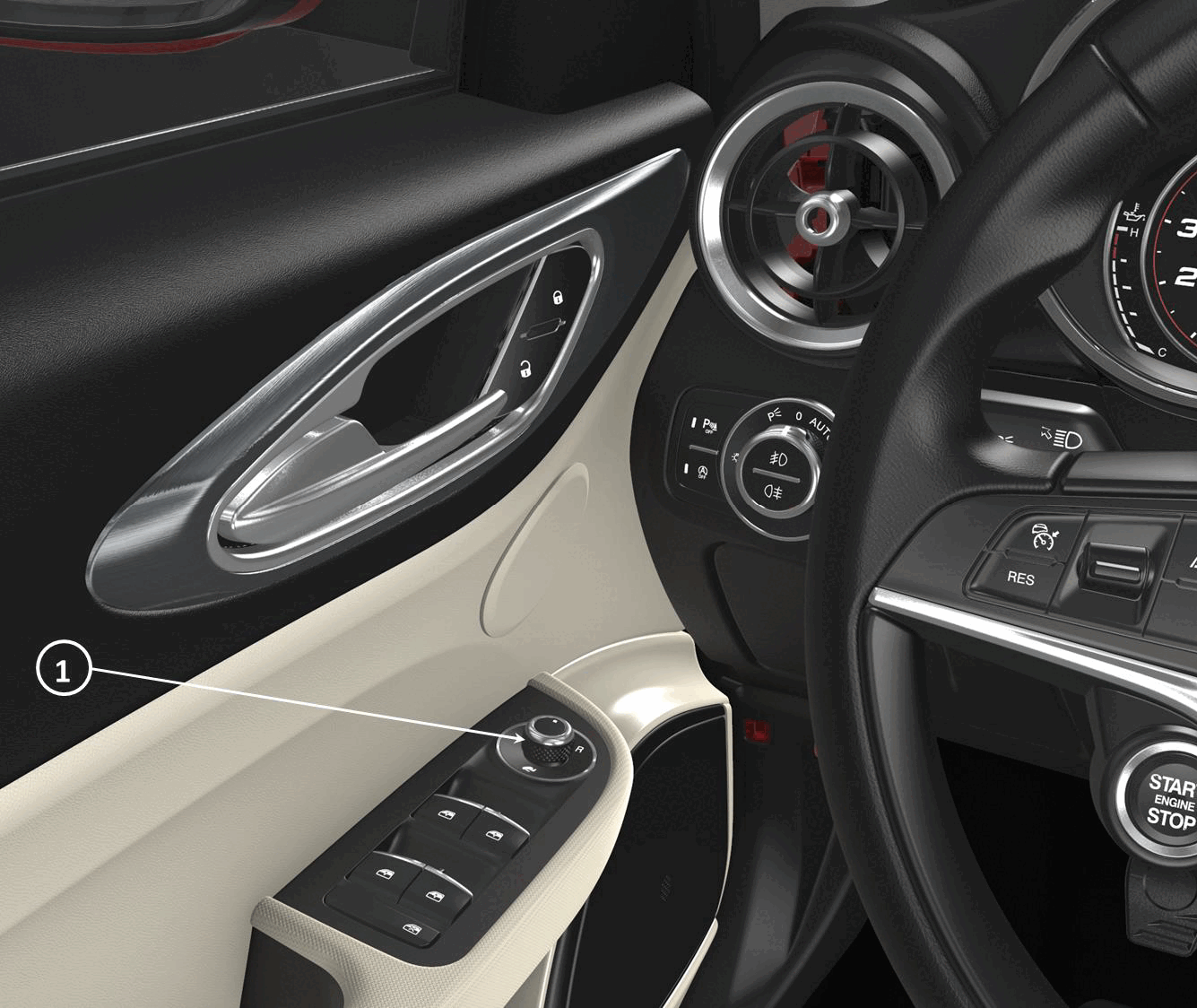

The vehicle operator can adjust the orientation of the power mirrors on the driver and passenger side using a small joystick. This is placed on the front door panel on driver's side within the same switch bank that contains the power window switches.

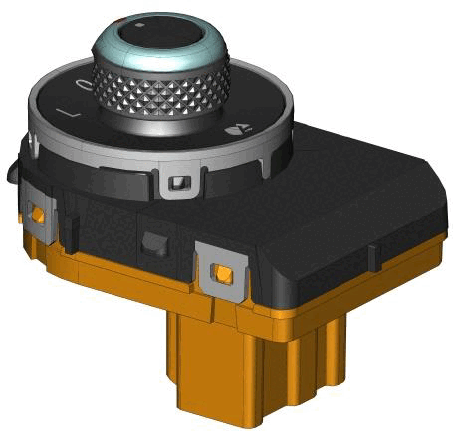

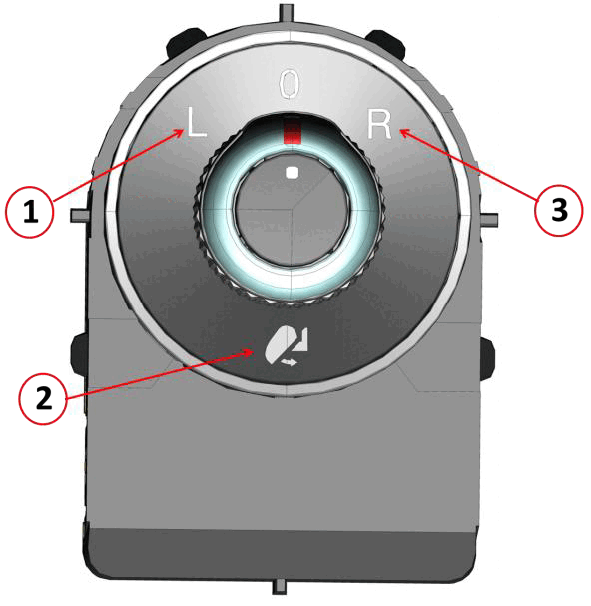

The control joystick (1) is integrated in the DMCM (Driver Mirror Control Module) which is located within the switch bank itself.
| PIN | DESCRIPTION |
|---|---|
| 1 | Drivers side adjustment position |
| 2 | Power folding mirror position |
| 3 | Passenger side adjustment position |

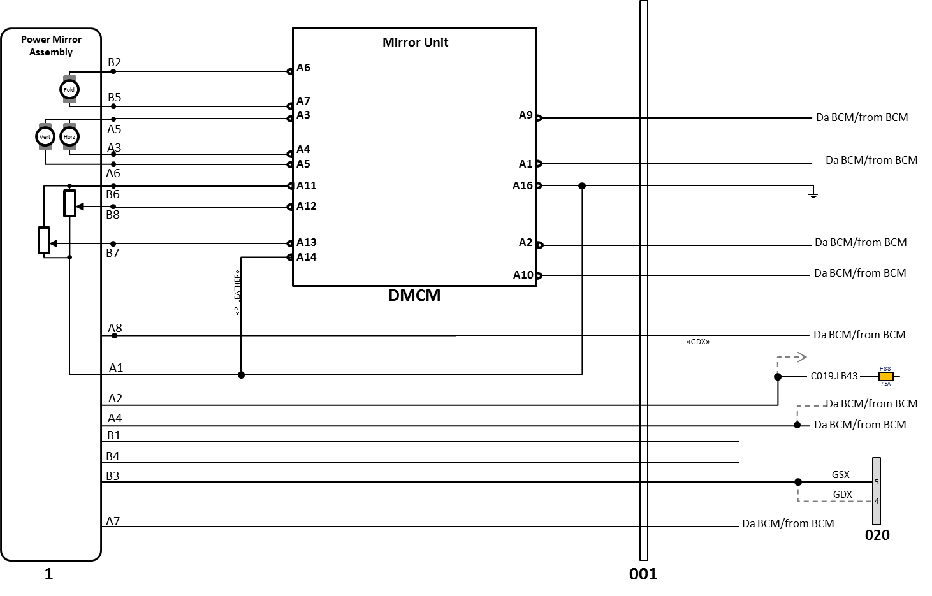

The DMCM interfaces on the LIN with the Body Control Module (BCM). The DMCM directly controls the driver's side power mirrors directly and the passenger's side front power mirror indirectly.

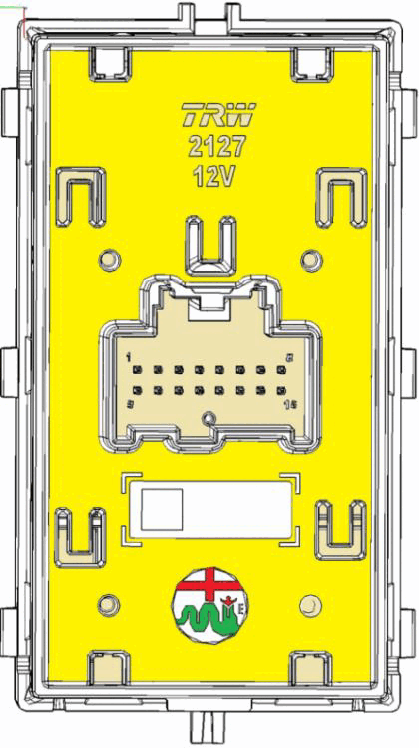

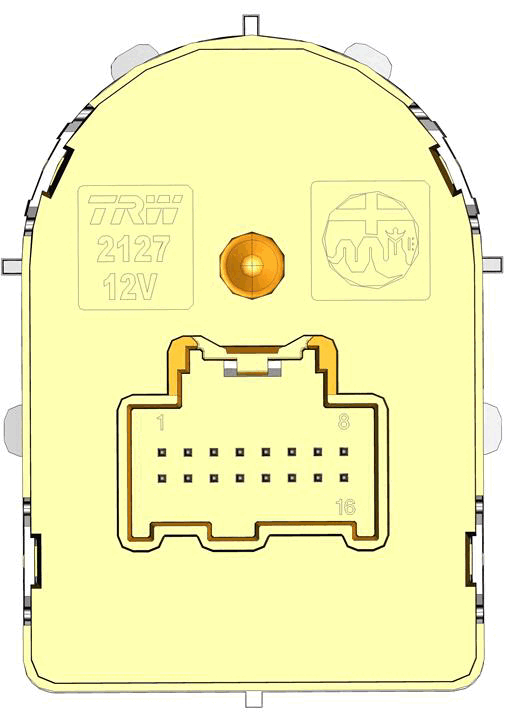

| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | Direct power supply from battery +30 | 9 | LIN line |
| 2 | Comfort enable control (from BCM) | 10 | Backlight control |
| 3 | Power mirror motor power supply | 11 | Position sensor power supply |
| 4 | Horizontal operating motor control | 12 | Vertical position sensor signal |
| 5 | Vertical operating motor control | 13 | Horizontal position sensor signal |
| 6 | Mirror fold-in motor control | 14 | Ground |
| 7 | Mirror fold-out motor control | 15 | N/A |
| 8 | N/A | 16 | Ground |

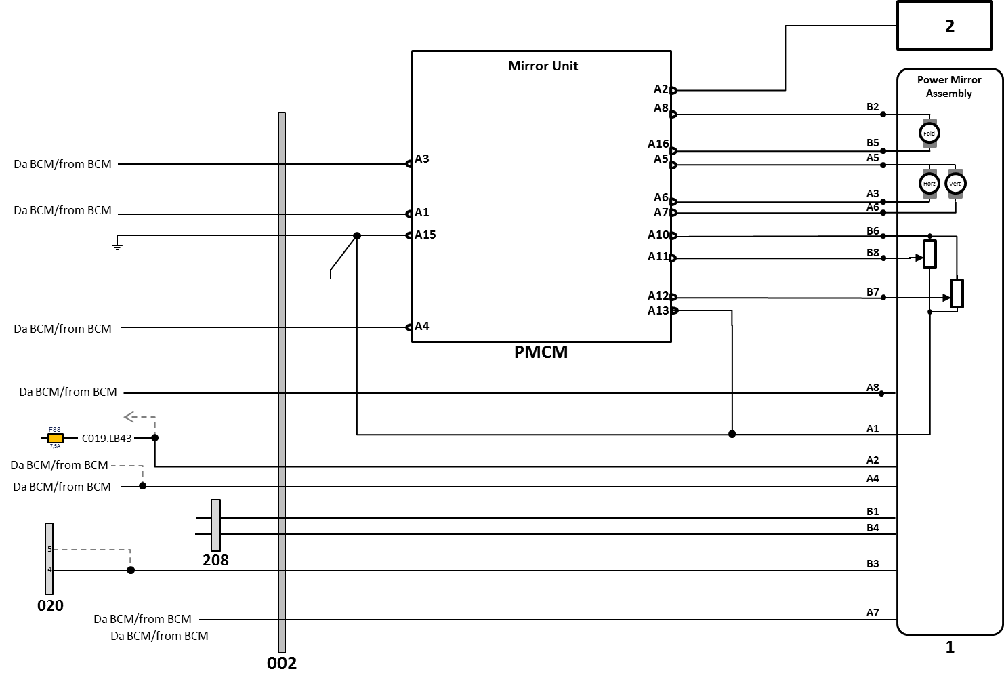

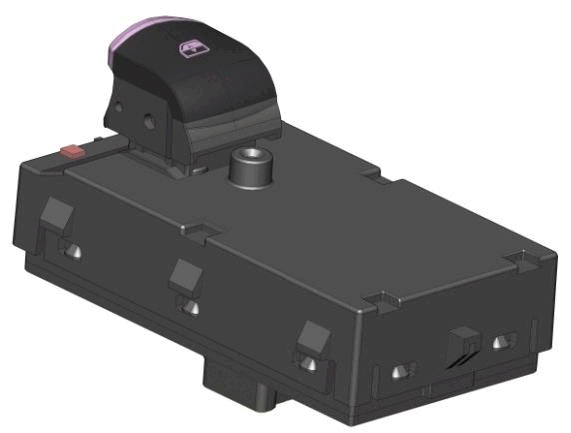

The joystick on driver's side can be used to adjust the power mirror on passenger's side. The power window control module on passenger side integrates an electronic module which also manages the operation of the mirror on the corresponding vehicle side. It is called Passenger Mirror Control Module (PMCM). The DMCM integrates the joystick and informs the BCM to operate the mirror on passenger side over the LIN data bus network. The BCM then transfers the request (again via LIN) to the PMCM, which controls the power mirror motors to adjust the mirror. Activating the power lock system from outside the vehicle automatically folds the mirrors. The mirror return to the driving position when the ignition switch is transitions back to the ON position.
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | Direct power supply from battery +30 | 9 | N/A |
| 2 | Power window up/down control | 10 | Position sensor power supply |
| 3 | LIN line | 11 | Vertical position sensor signal |
| 4 | Backlight control | 12 | Horizontal position sensor signal |
| 5 | Power mirror motor common power supply | 13 | Ground |
| 6 | Horizontal operating motor control | 14 | N/A |
| 7 | Vertical operating motor control | 15 | Ground |
| 8 | Mirror fold-in motor control | 16 | Mirror fold-out motor control |

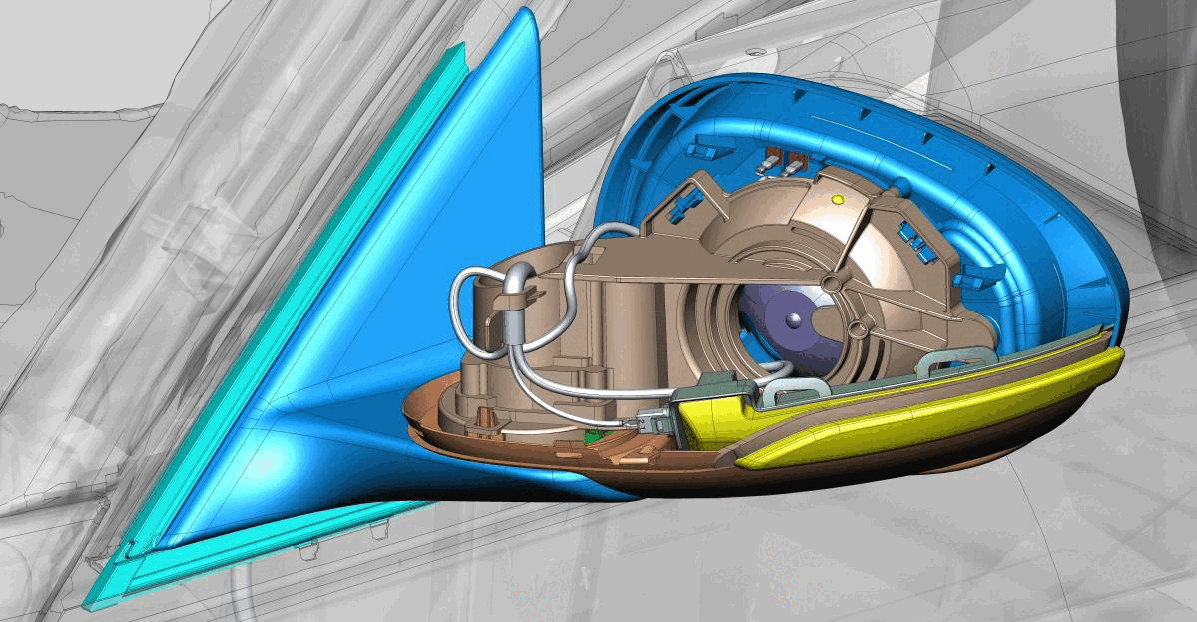

1 - Drivers Side Mirror
- 1 - Passenger Side Mirror
- 2 - Passenger Side Mirror Motor
| Pin | Description |
|---|---|
| 1 | Ground |
| 2 | Heater power supply |
| 3 | Horizontal operation electric motor control |
| 4 | Direction indicator control |
| 5 | Operating power mirror motor common power supply |
| 6 | Vertical operation power mirror motor control |
| 7 | External temperature sensor signal (for the BCM) |
| 8 | External temperature sensor earth (from the BCM) |
| 9 | N/A |
| 10 | N/A |
The external air temperature sensor is always positioned on the right side of the vehicle.
The pin-out of the driver's side mirror connector and of the passenger's side mirror connector are identical.

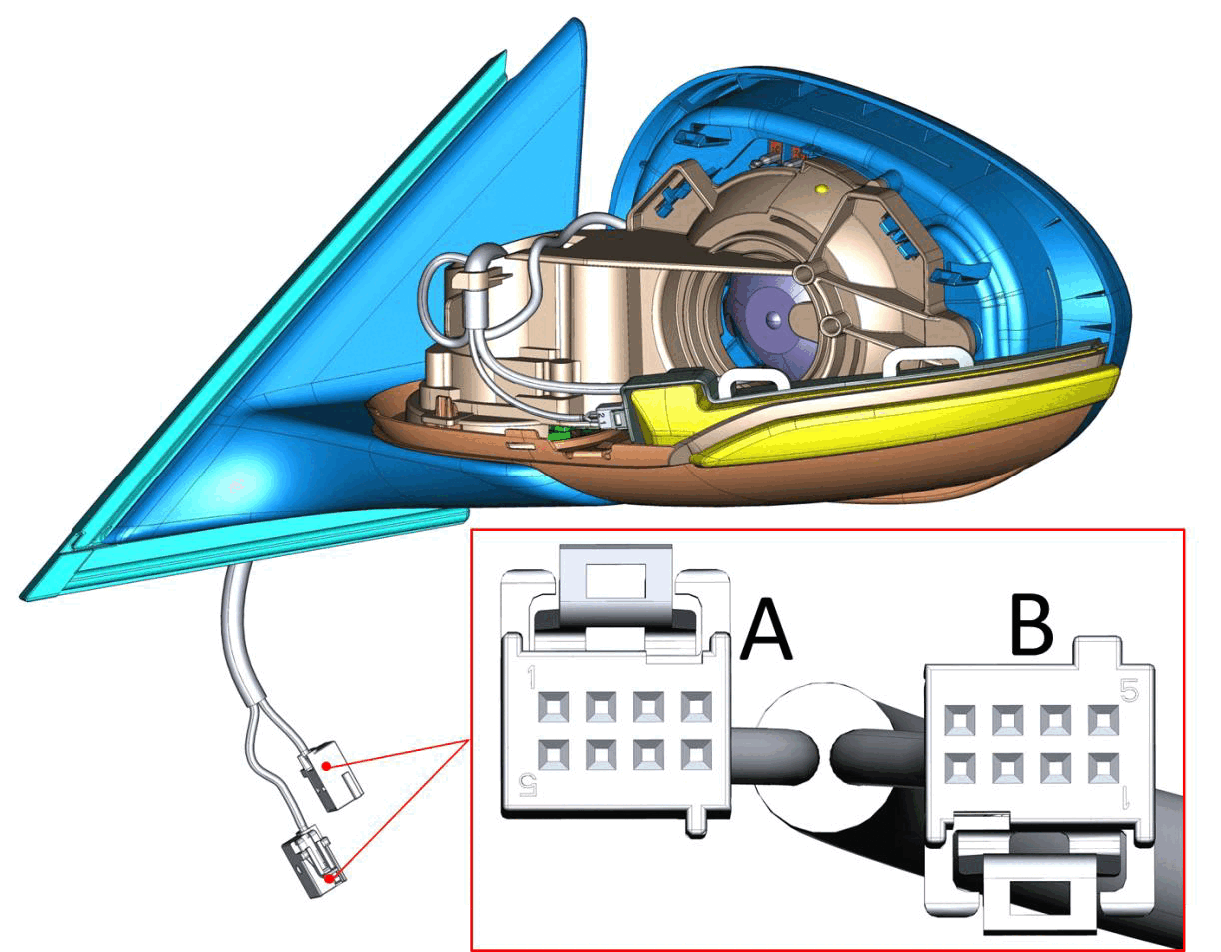

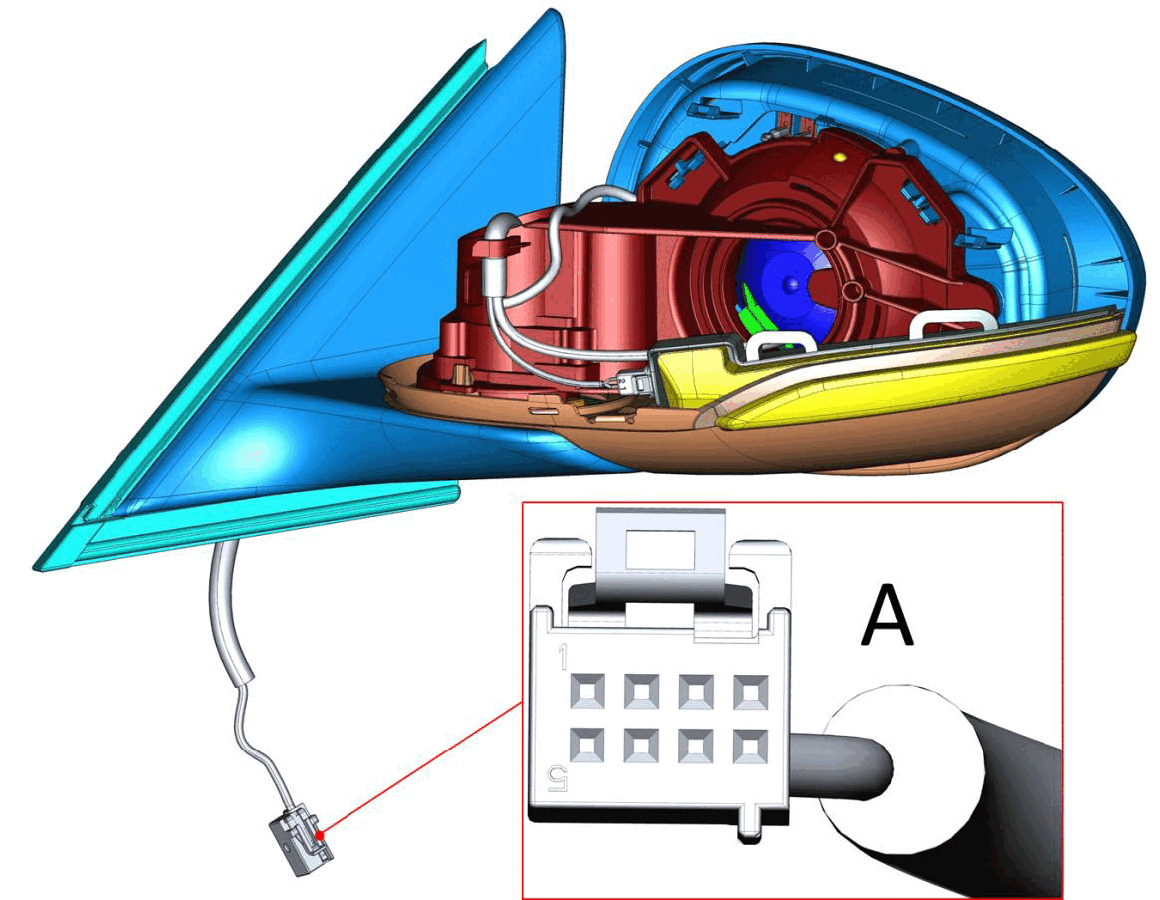

The mid level and top level mirrors connect to the vehicle wiring system via two connectors A and B.
| Pin | Description |
|---|---|
| 1 | Electrochromic function (+) |
| 2 | Mirror fold-in control |
| 3 | Blind Spot icon control |
| 4 | Electrochromic function (-) |
| 5 | Mirror fold-out control |
| 6 | Common power supply for position sensors (if memory function is present only) |
| 7 | Horizontal position sensor signal (if memory function is present only) |
| 8 | Vertical position sensor signal (if memory function is present only) |
| 9 | N/A |
| 10 | N/A |
The pin-out of connector A corresponds to the pin-out of connector on the basic level mirror.
The pin-outs of the driver's side mirror connectors A and B and of the passenger's side mirror connectors A and B are identical.
