Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the front seat back cover and cushion as an assembly. Refer to COVER, SEAT BACK, FRONT, REMOVAL AND INSTALLATION .
   NOTE:

   It is not necessary to completely remove the cover from the cushion.

3. Remove the seat air bag. Refer to AIR BAG, SEAT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

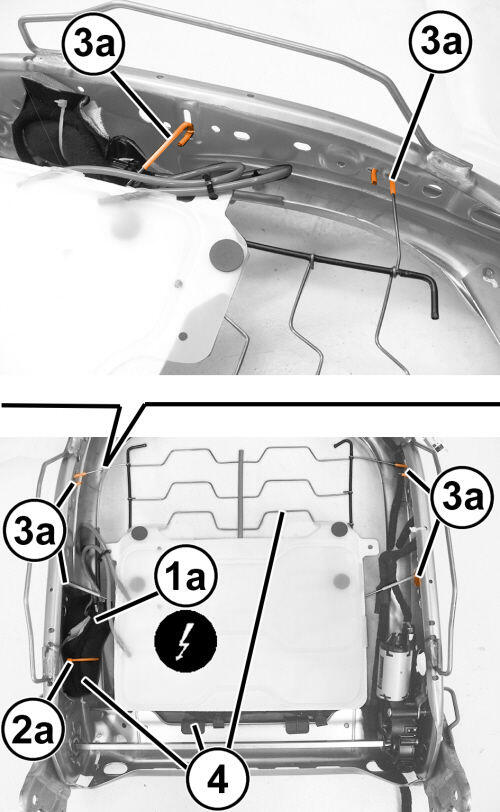

4. Disconnect the wiring harness connector (1a) from the lumbar adjustment motor.
5. Cut the strap (2a) fastening the lumbar adjustment motor to the frame.
6. Remove the spring hooks (3a) from the seat back frame.
7. Remove the lumbar adjustment motor complete with the seat back spring (4).

INSTALLATION

1. Inspect the lumbar adjustment motor and spring integrity.

   Courtesy of CHRYSLER GROUP, LLC

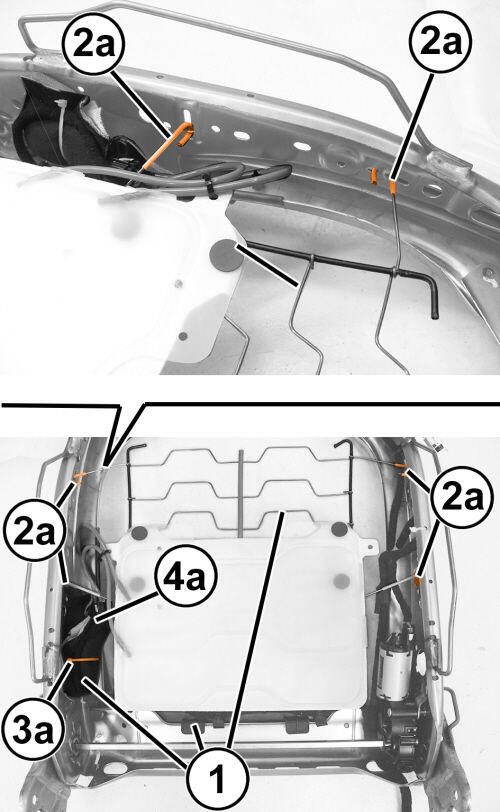

2. Position the lumbar adjustment motor with the spring (1) to the seat.
3. Install the spring hooks (2a) to the seat back frame.
4. Using a NEW strap (3a) to fasten the lumbar adjustment motor.
5. Connect the wiring harness connector (4a) to the lumbar adjustment motor.
6. Install the seat air bag. Refer to AIR BAG, SEAT, REMOVAL AND INSTALLATION .
7. Install the front seat back cover and cushion assembly. Refer to COVER, SEAT BACK, FRONT, REMOVAL AND INSTALLATION .
8. Do not connect the negative battery cable at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Refer to STANDARD PROCEDURE .
9. Connect the negative battery cable.
