Removal And Installation

REMOVAL

1. Raise the seat until to the end of travel position.
2. Disconnect and isolate the negative battery cable.
3. Remove the seat side shield. Refer to SIDE SHIELDS, SEAT CUSHION, FRONT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

4. Release the power seat switch retainers (1a) and remove the switch (1b).

INSTALLATION

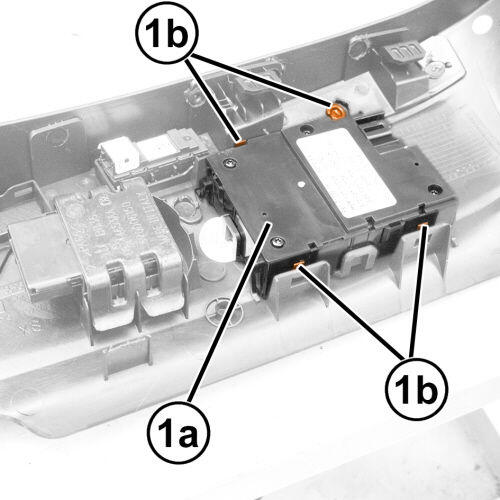

1. Install the power seat switch (1a) on the side seat shield and secure the retainers (1b).

   Courtesy of CHRYSLER GROUP, LLC

2. Install the seat side shield. Refer to SIDE SHIELDS, SEAT CUSHION, FRONT, REMOVAL AND INSTALLATION .
3. Connect the negative battery cable.
