Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.

   Courtesy of CHRYSLER GROUP, LLC

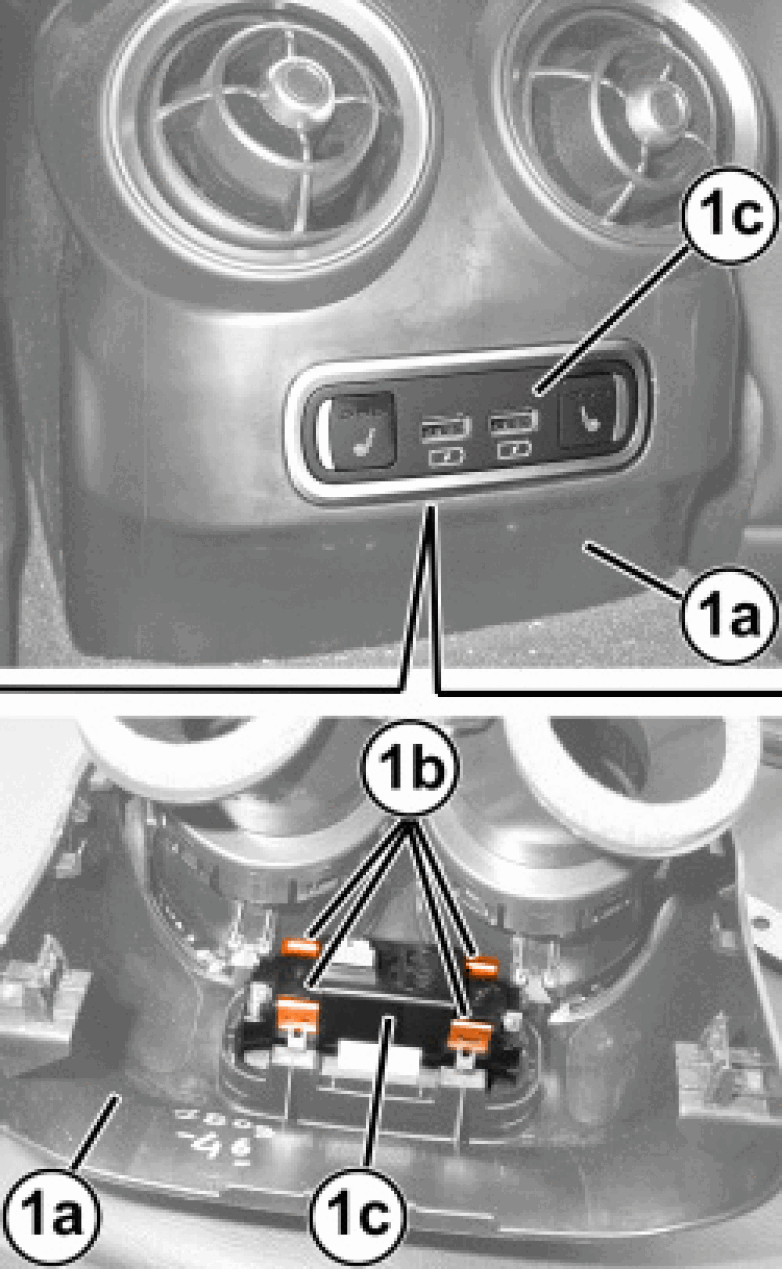

2. Using a suitable tool, remove the floor console end cap (1a) by releasing the four retaining clips and disconnect the wire harness connectors.
3. Working on the inside of the floor console end cap (1a), release the four retaining clips (1b) and remove the rear heated seat switch and USB port assembly (1c).

INSTALLATION

1. Install the rear heated seat switch and USB port assembly (1a). Be certain the four retaining tabs (1b) are engaged to the floor console end cap.
2. Connect the wire harness connectors then install the floor console end cap.
3. Connect the negative battery cable.

Courtesy of CHRYSLER GROUP, LLC
