DRL Led Control Unit

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
2. Remove the front lamp unit. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

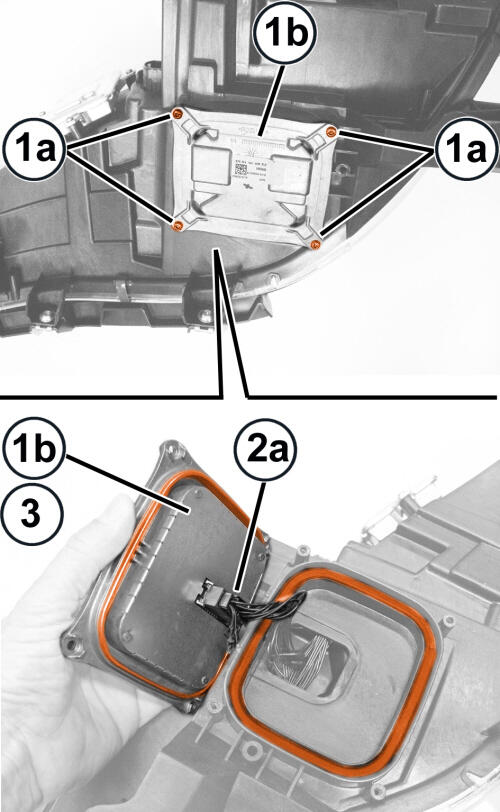

3. Remove the control unit (1b) fasteners (1a) from the lamp unit.
4. Disconnect the wire harness connector (2a) from the control unit.
5. Remove the control unit.

INSTALLATION

1. Inspect the integrity of the control unit and the wire harness connectors.

   Courtesy of CHRYSLER GROUP, LLC

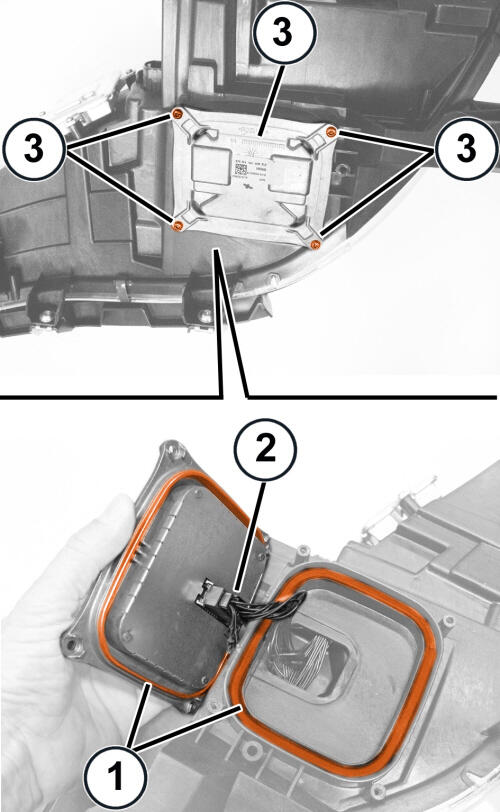

2. Connect the wire harness connector (2) to the control unit.
3. Position the control unit on the lamp unit, then install and securely tighten the fasteners (3).
4. Install the front lamp unit. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .
5. Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
