Solenoid-WASTEGATE (2.0L) Connector End View (D2932A)

Harness-Family: Engine_20L

Color: BLACK

Gender: FEMALE

Part Number: 2272975-5

Part Description: Not Available

Connector No: D2932A

Option: 2.0L

Repair Kit Part Number: Not Available

Cavity Count: null

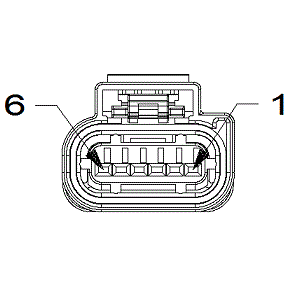

Fig 1: Solenoid-Wastegate Connector End View (2.0L)

Courtesy of CHRYSLER

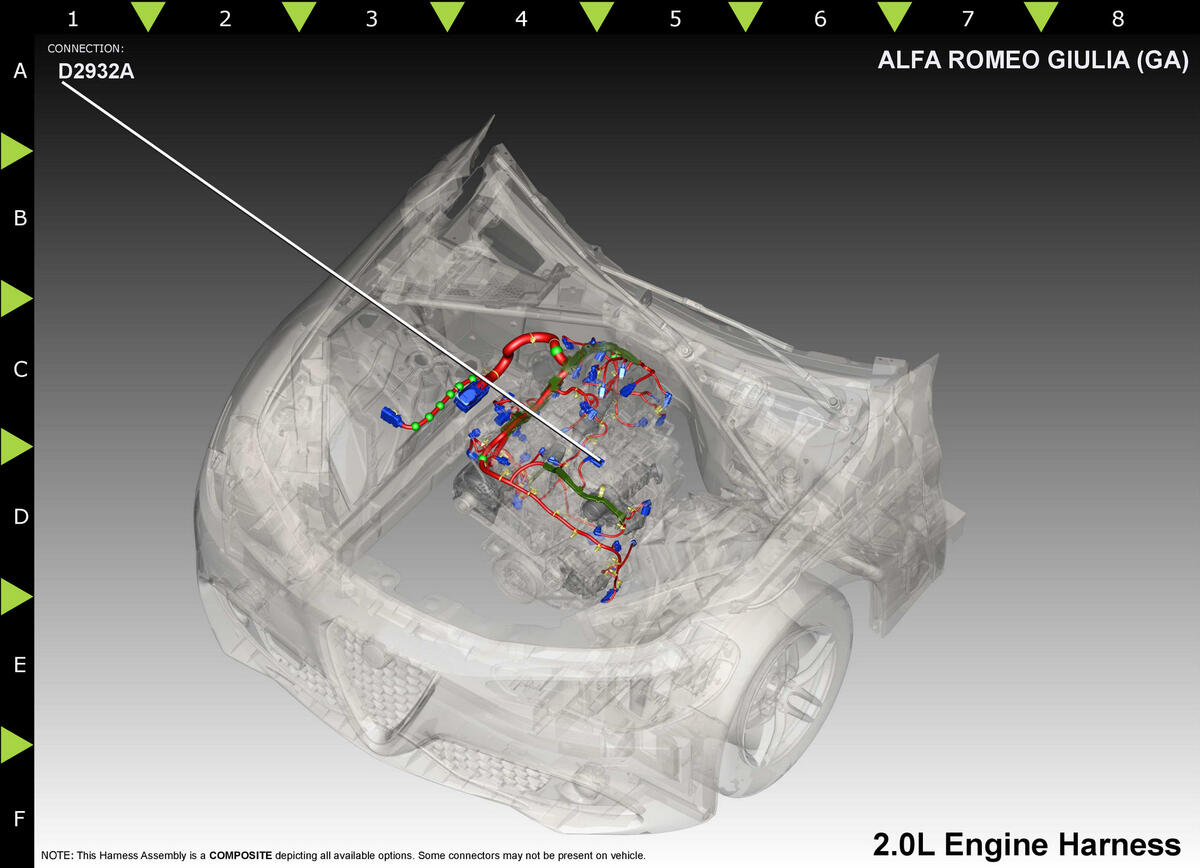

Fig 2: Solenoid-Wastegate Component Location (2.0L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K900

BU/GN

0.35

SENSOR GROUND

2.0L

K136

BU/OG

0.35

WASTEGATE POSITION SIGNAL

2.0L

F856

YE/VT

0.35

5 VOLT SUPPLY

2.0L

K139

0.35

WASTEGATE SOLENOID (-) CONTROL

2.0L

K131

BU/VT

0.35

WASTEGATE SOLENOID (+) CONTROL

2.0L

⁽¹⁾	Pins not listed are not used for this connector
