Speaker-Door-Right Front-Tweeter (Standard) Connector End View (D5909A)

Harness-Family: Door_Front_Pass

Color: BLACK

Gender: FEMALE

Part Number: 1/05989/87

Part Description: Not Available

Connector No: D5909A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

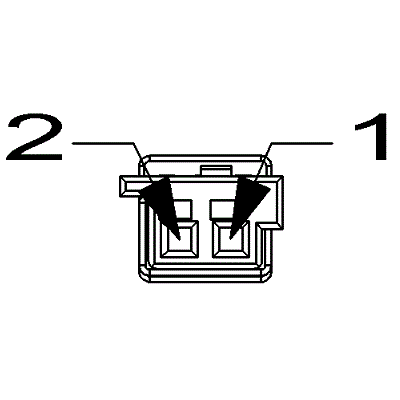

Fig 1: Speaker-Door-Right Front-Tweeter Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Speaker-Door-Right Front-Tweeter Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X292

VT/OG

0.75

RIGHT FRONT SPEAKER (-)

PREMIUM AUDIO

X202

0.75

RIGHT FRONT SPEAKER (+)

PREMIUM AUDIO

⁽¹⁾	Pins not listed are not used for this connector
