Removal And Installation: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the instrument panel cluster (IPC). Refer to REMOVAL AND INSTALLATION .
- Remove the right instrument panel trim. Refer to PANEL, INSTRUMENT PANEL TRIM, CENTER, REMOVAL AND INSTALLATION .
- Remove the center air outlets. Refer to OUTLET, AIR, REMOVAL AND INSTALLATION
.

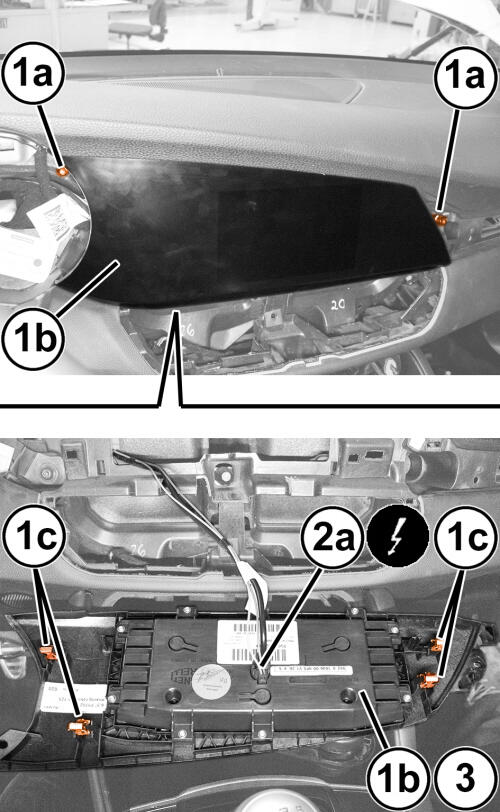

- Remove the two radio display panel screws (1a).
- Using a suitable tool, release the integral latches (1c) and gently remove the radio display (1b).
- Disconnect the wire harness connector (2a).
- Remove the radio display (1b) from the vehicle.
