Removal And Installation: Installation

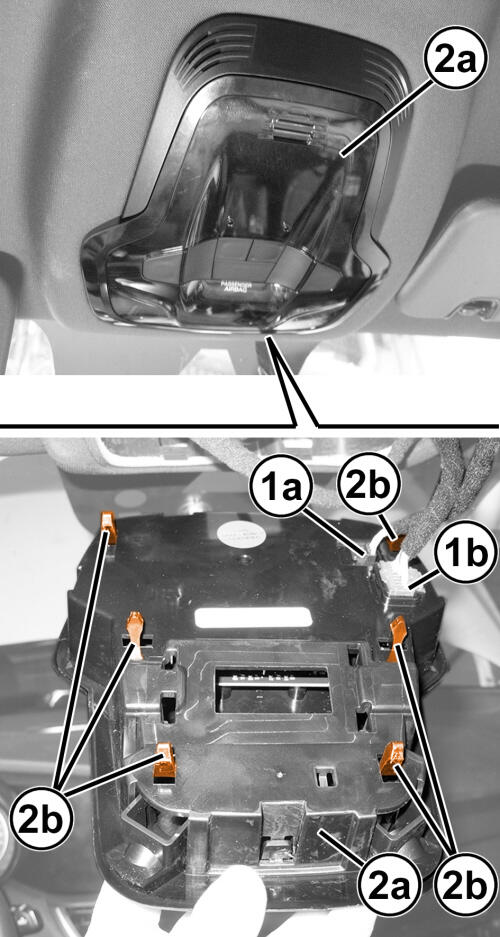

GC0194778Courtesy of CHRYSLER GROUP, LLC
  1. Position the roof lamp unit housing (2a) (with integral Ultra-sonic and anti-tilt module) to the headliner.
  2. Connect the roof wire harness connectors (1a and 1b) to the roof lamp unit (2a).
  3. Install the roof lamp unit (2a) to the headliner. Refer to CONSOLE, OVERHEAD, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
