Generator C2 (2.0L) Connector End View (D3000B)

Harness-Family: Engine_20L

Color: BLACK

Gender: FEMALE

Part Number: 3-1718624-2

Part Description: Not Available

Connector No: D3000B

Option: 2.0L

Repair Kit Part Number: Not Available

Cavity Count: null

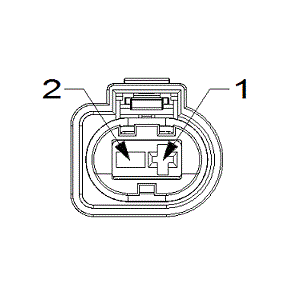

Fig 1: Generator C2 Connector End View (2.0L)

Courtesy of CHRYSLER

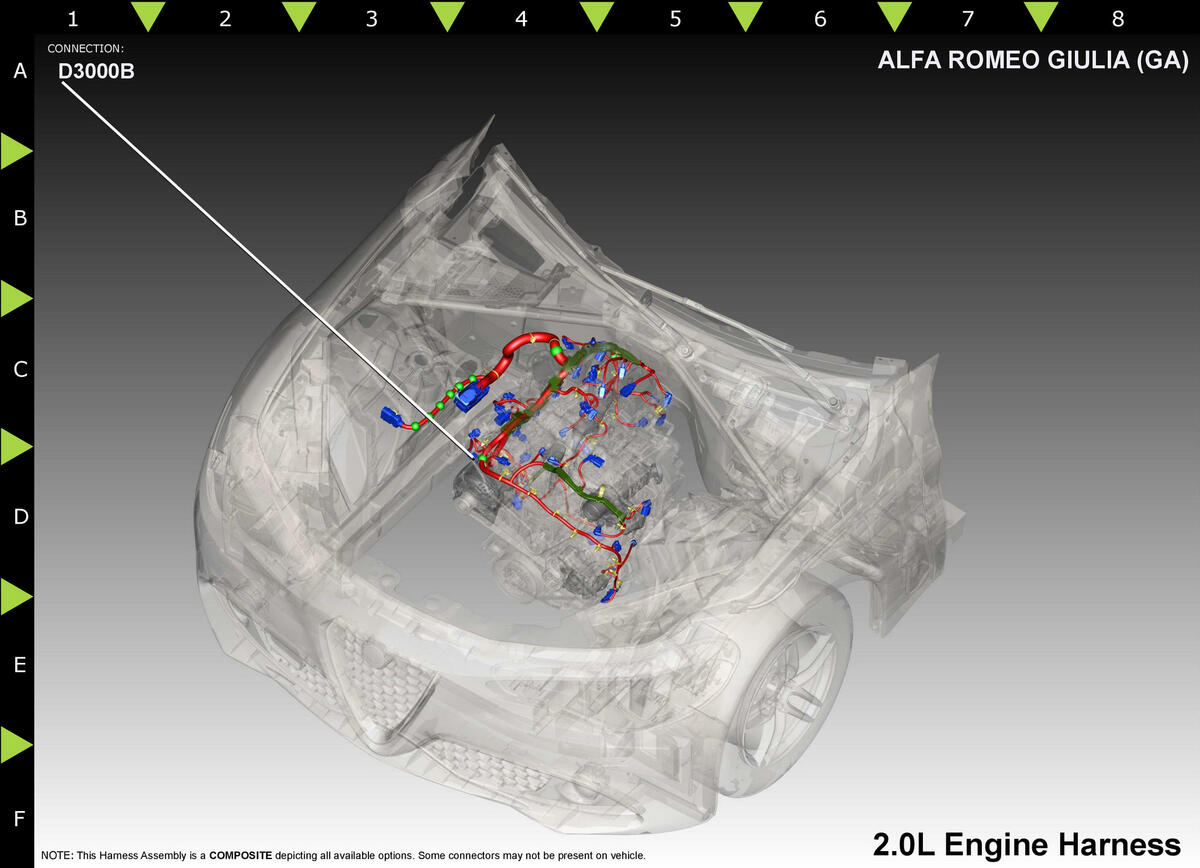

Fig 2: Generator C2 Component Location (2.0L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D511

WH/BN

0.5

LIN BUS

2.0L

⁽¹⁾	Pins not listed are not used for this connector
