S815 (Standard) Connector End View (S815)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S815

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S815 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

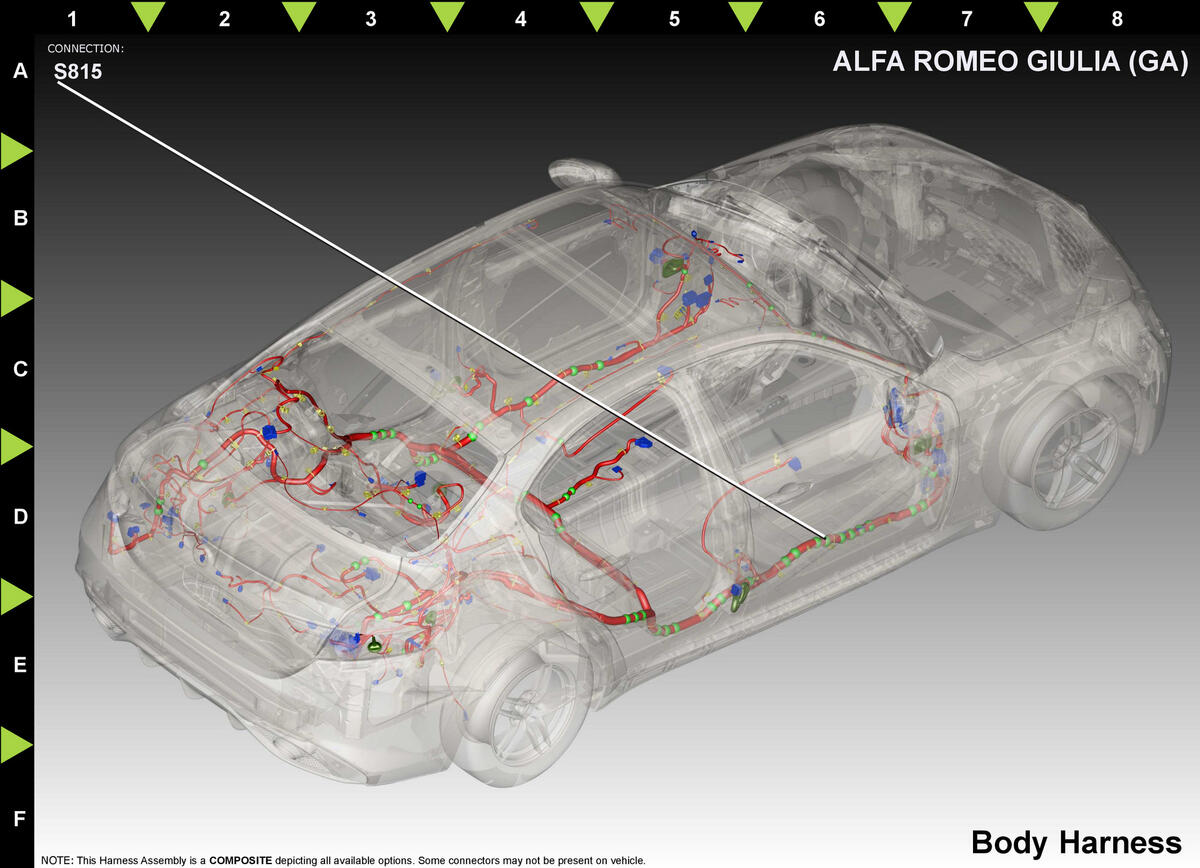

Fig 2: S815 Component Location (Standard)

GCWD1267555

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

P1

OG/GN

1.5

DOOR UNLOCK DRIVER

N/A

2

P1

OG/GN

1.5

DOOR UNLOCK DRIVER

N/A

3

P1

OG/DB

0.75

DOOR UNLOCK DRIVER

EXPORT EXCEPT 2.2L EU6

4

P1

OG/GN

1.5

DOOR UNLOCK DRIVER

N/A

5

P1

OG/GN

1.5

DOOR UNLOCK DRIVER

N/A

6

P1

OG/GN

1.5

DOOR UNLOCK DRIVER

EXPORT

7

P1

OG/DB

0.75

DOOR UNLOCK DRIVER

EXPORT 2.2L EU6

⁽¹⁾	Pins not listed are not used for this connector
