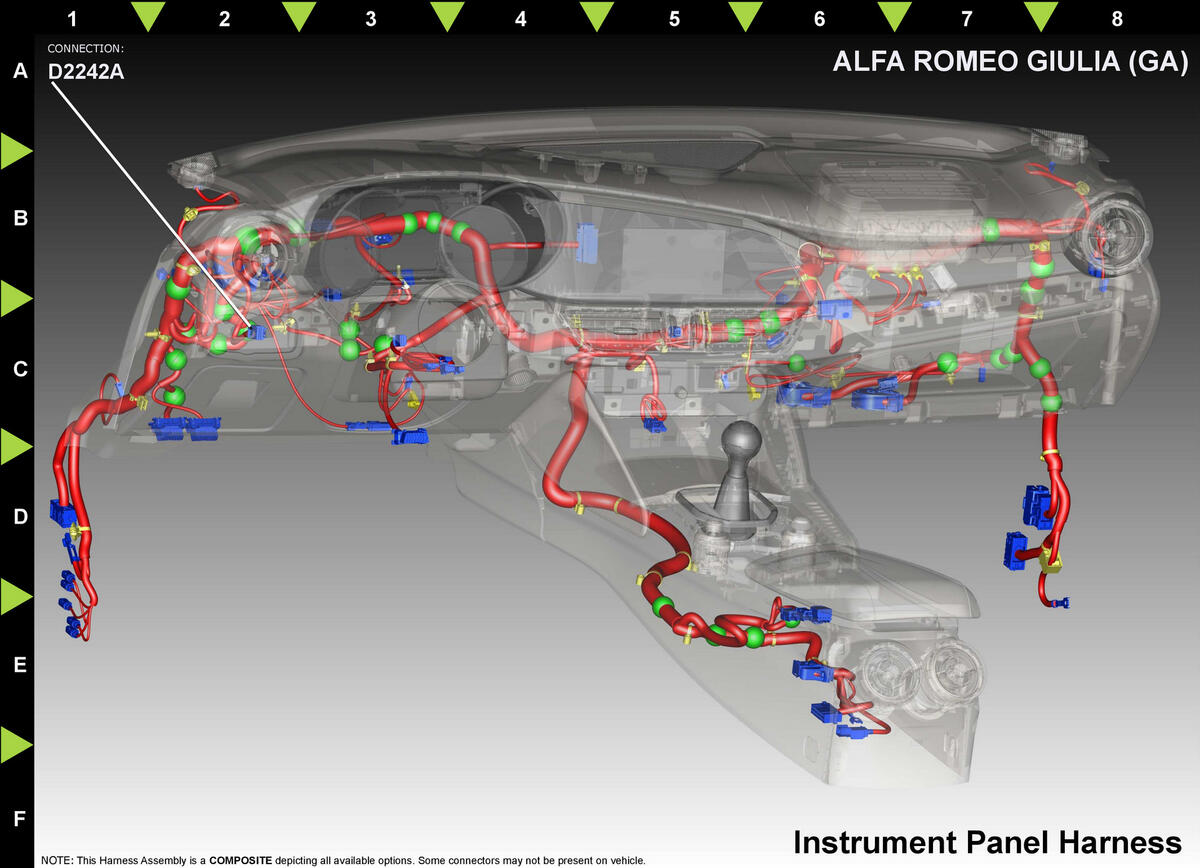

Switch-Headlamp (Standard) Connector End View (D2242A)
Harness-Family: IP
Color: BLACK
Gender: FEMALE
Part Number: 1/10061/97
Part Description: Not Available
Connector No: D2242A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | F926 | DB | 0.5 | FUSED IGNITION SWITCH OUTPUT (RUN) | LHD | ||
| 2 | E3 | YE | 0.35 | PANEL LAMPS DIMMER SWITCH MUX | N/A | ||
| 3 | L960 | VT/GY | 0.35 | HEADLAMP LEVELING SENSOR FRONT SIGNAL | BASE | ||
| 4 | M9 | WH/YE | 0.35 | HEADLAMP SWITCH SIGNAL | LHD | ||
| 5 | D24 | GN/OG | 0.35 | FRONT FOG LAMP RELAY CONTROL | LHD | ||
| 7 | E16 | GY/DB | 0.35 | PANEL LAMPS DRIVER | LHD | ||
| 8 | K801 | WH/RD | 0.35 | STOP/START SWITCH DISABLE/ENABLE | LHD | ||
| 9 | K805 | WH/VT | 0.35 | STOP/START SWITCH ILLUMINATION CONTROL | N/A | ||
| 10 | K808 | WH/GY | 0.35 | FRONT PARK ASSIST SWITCH ILLUMINATION CONTROL | N/A | ||
| 11 | K807 | DB/WH | 0.35 | FRONT PARK ASSIST SWITCH DISABLE/ENABLE | N/A | ||
| 12 | Z209 | BK/VT | 0.5 | GROUND | LHD | ||
|
|||||||
