Pinpoint Test B: Incorrect Fuel Gauge Indication

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

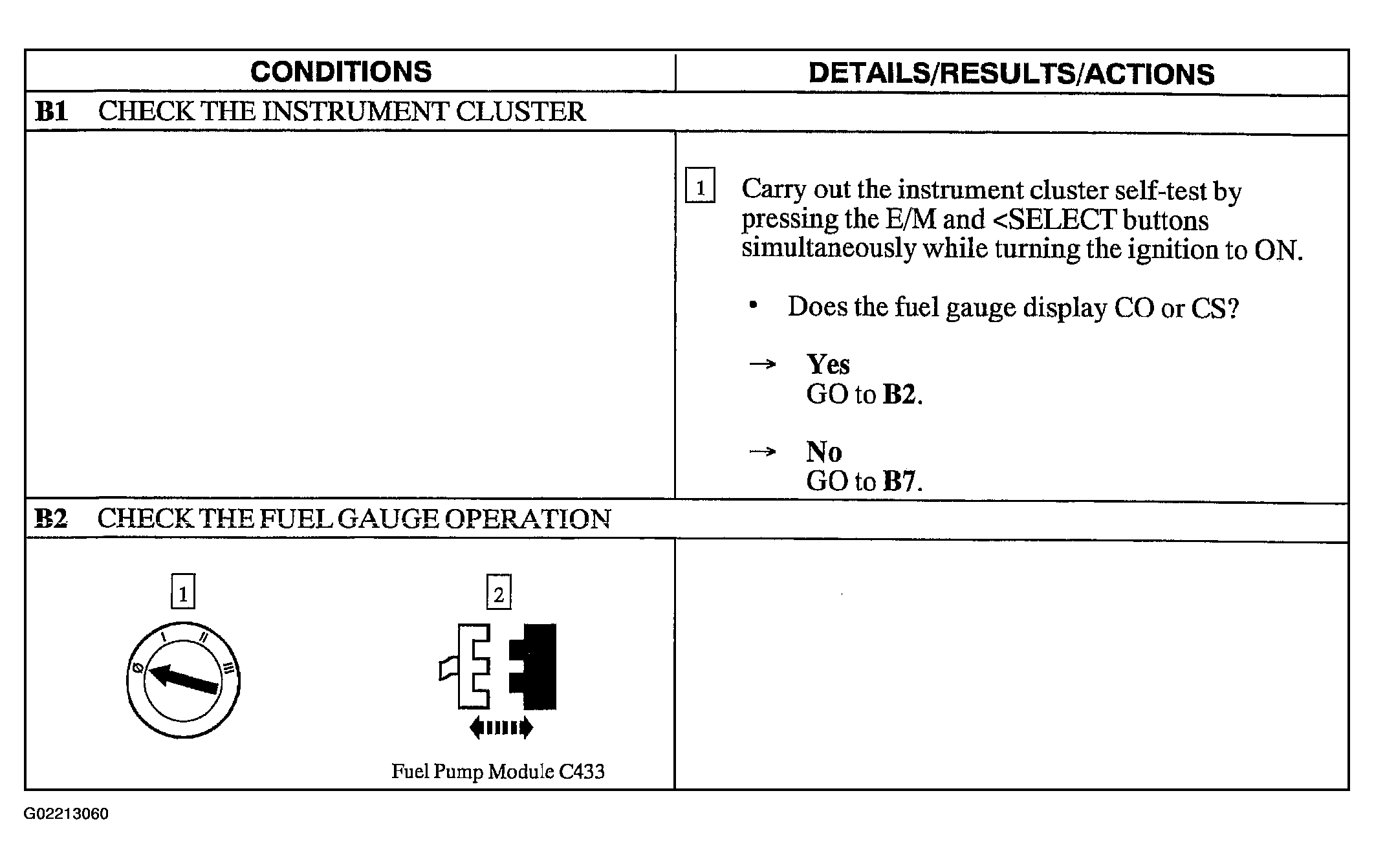

Fig 1: Pinpoint Test B: Incorrect Fuel Gauge Indication (Steps B1-B2)

Courtesy of FORD MOTOR CO.

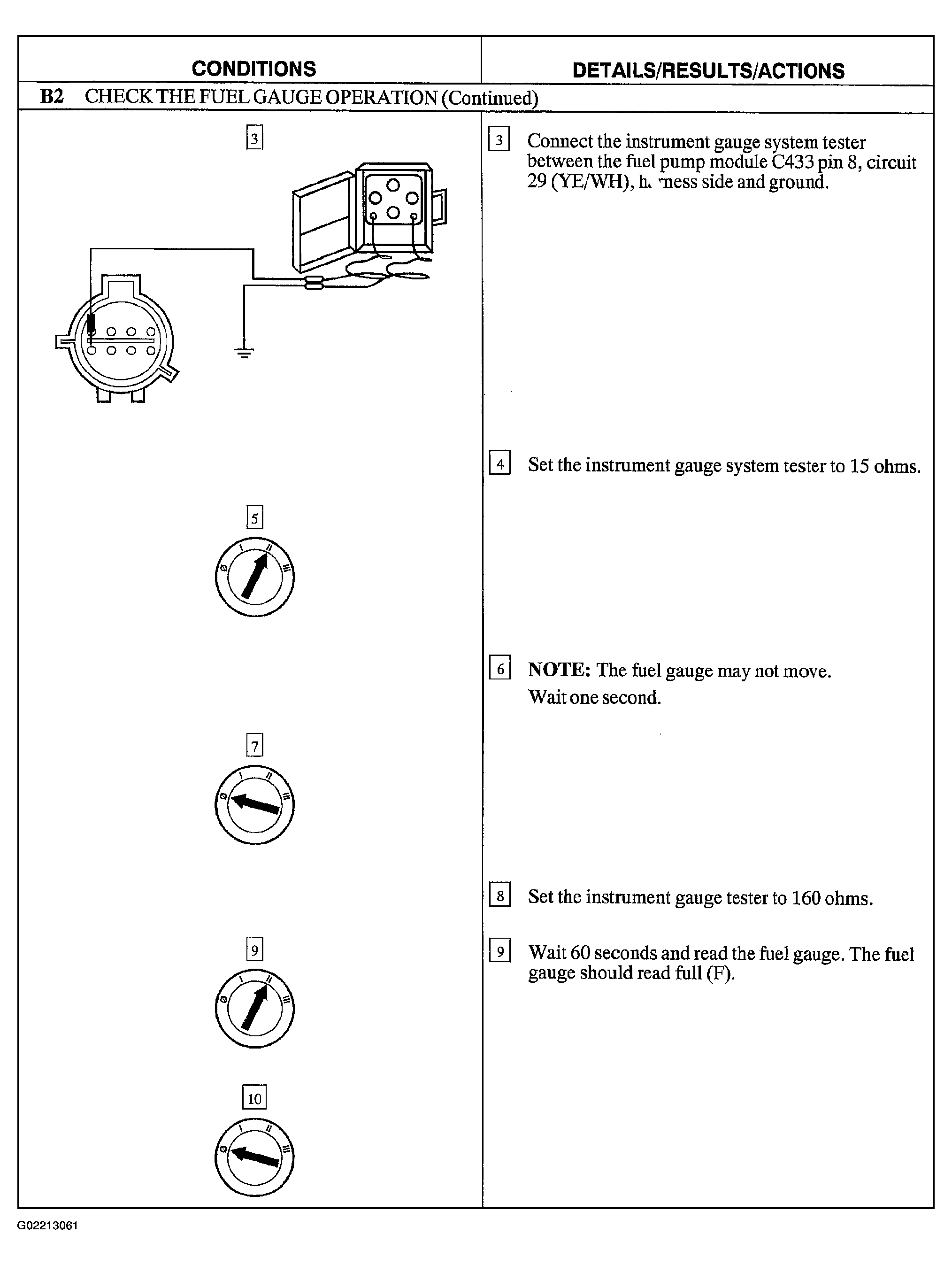

Fig 2: Pinpoint Test B: Incorrect Fuel Gauge Indication (Step B2 Cont.)

Courtesy of FORD MOTOR CO.

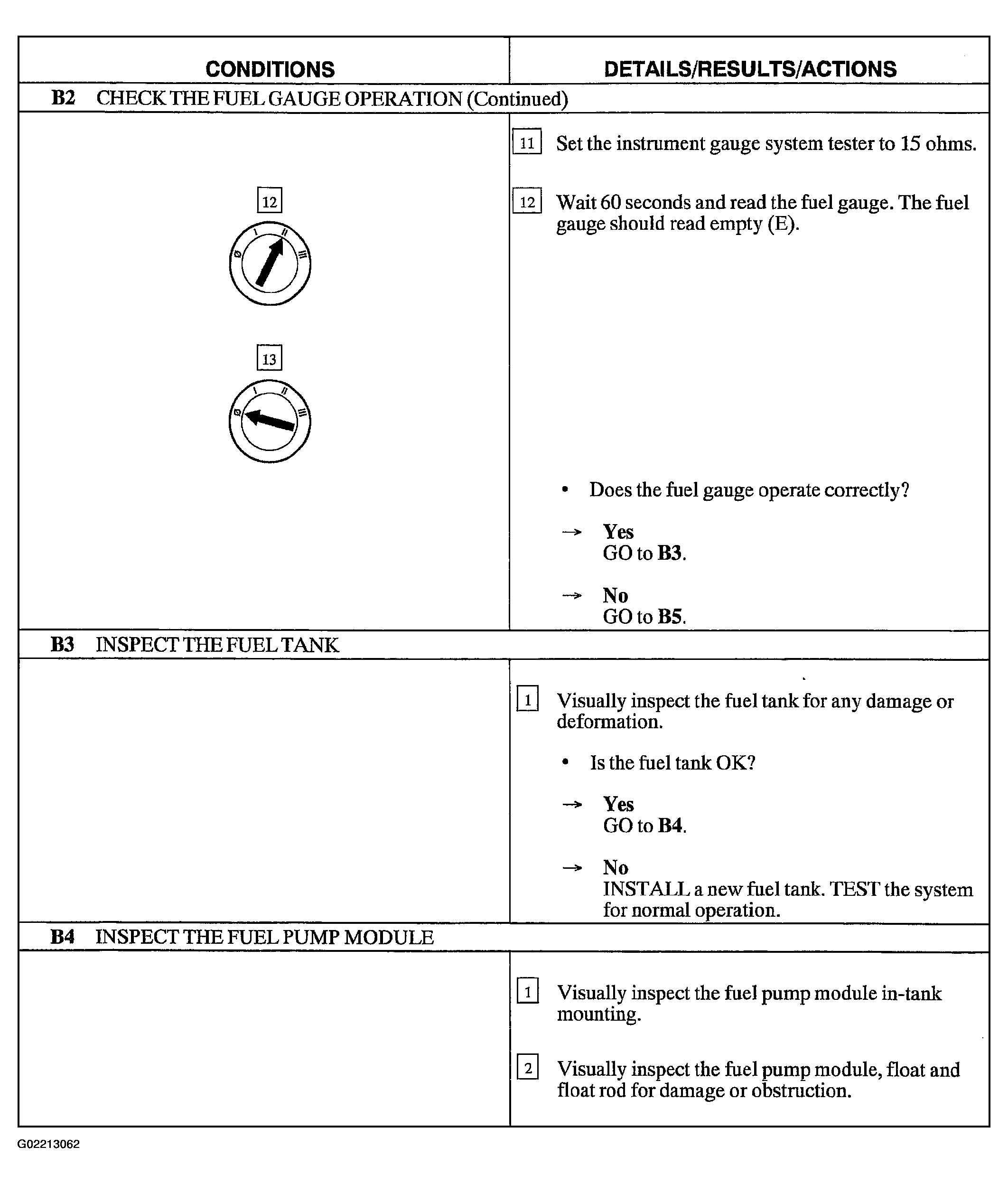

Fig 3: Pinpoint Test B: Incorrect Fuel Gauge Indication (Steps B2 Cont.-B4)

Courtesy of FORD MOTOR CO.

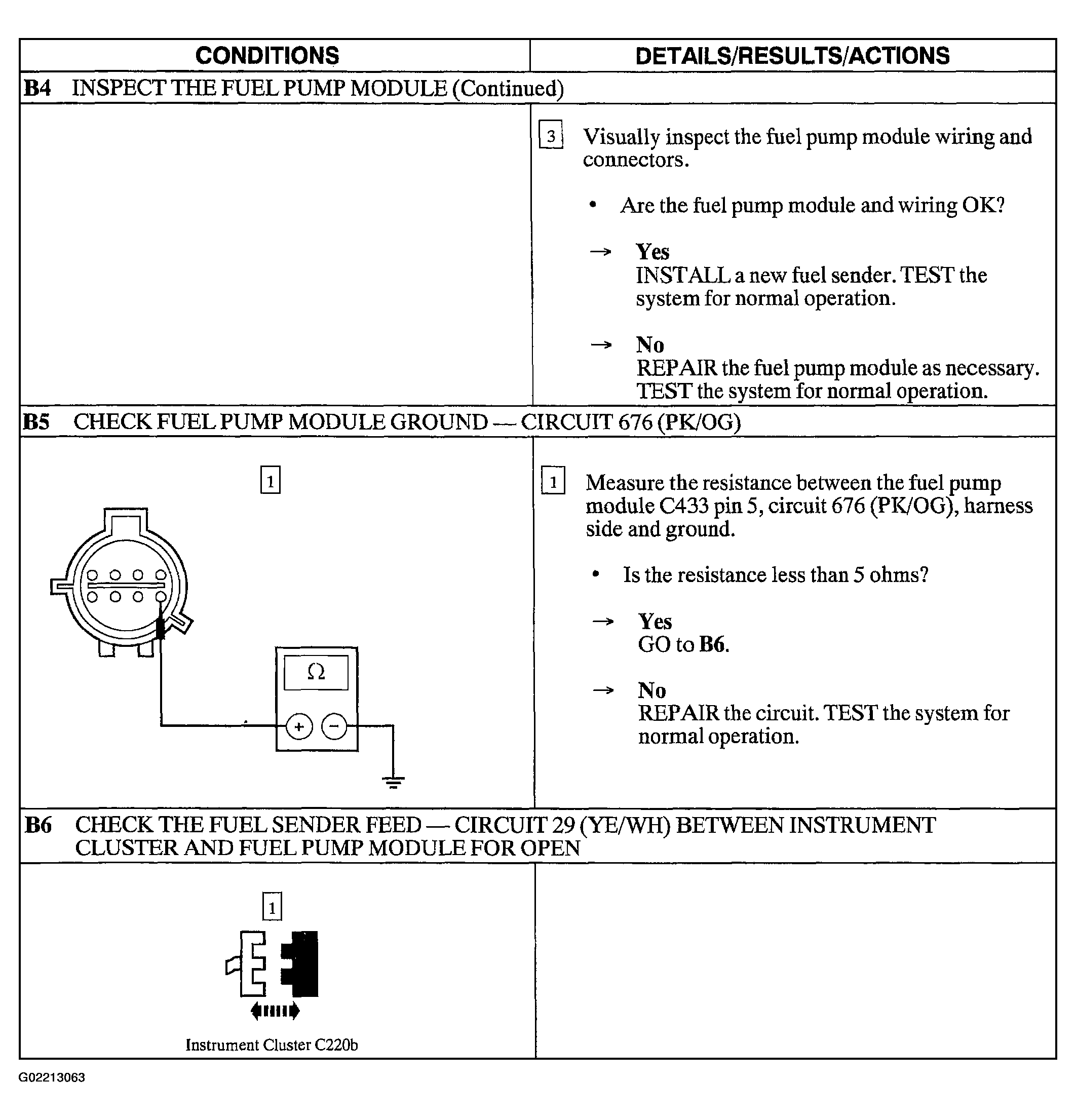

Fig 4: Pinpoint Test B: Incorrect Fuel Gauge Indication (Steps B4 Cont.-B6)

Courtesy of FORD MOTOR CO.

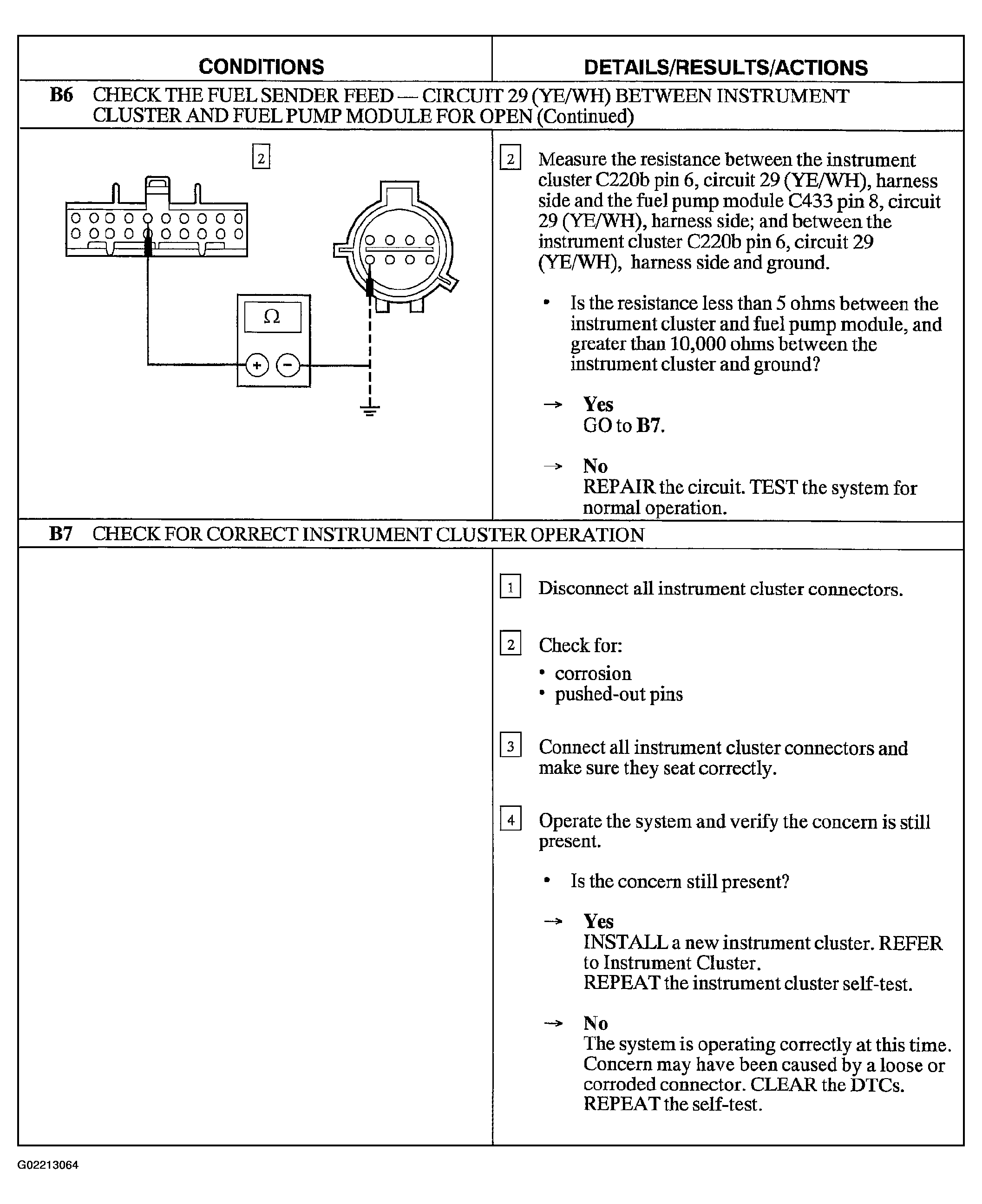

Fig 5: Pinpoint Test B: Incorrect Fuel Gauge Indication (Steps B6 Cont.-B7)

Courtesy of FORD MOTOR CO.
