Pinpoint Test D: Incorrect Oil Pressure Gauge Indication

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

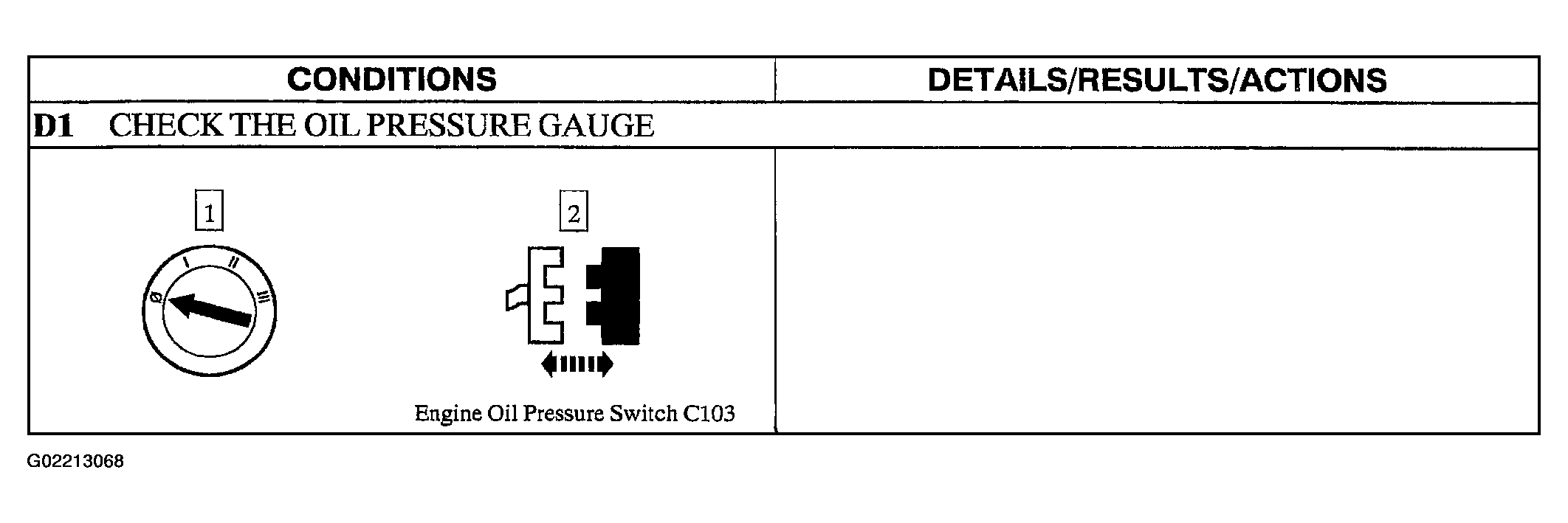

Fig 1: Pinpoint Test D: Incorrect Oil Pressure Gauge Indication (Step D1)

Courtesy of FORD MOTOR CO.

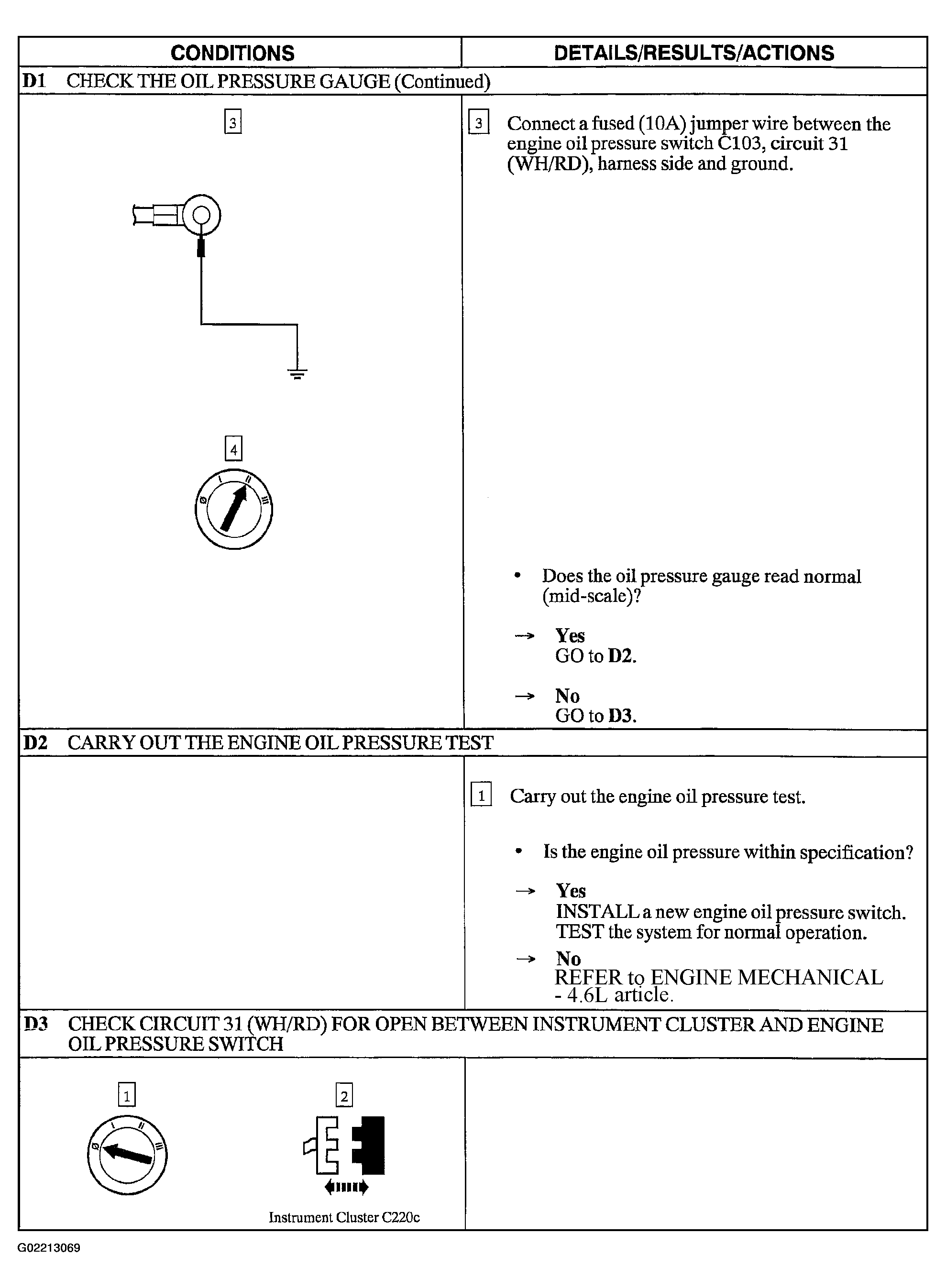

Fig 2: Pinpoint Test D: Incorrect Oil Pressure Gauge Indication (Steps D1-D3)

Courtesy of FORD MOTOR CO.

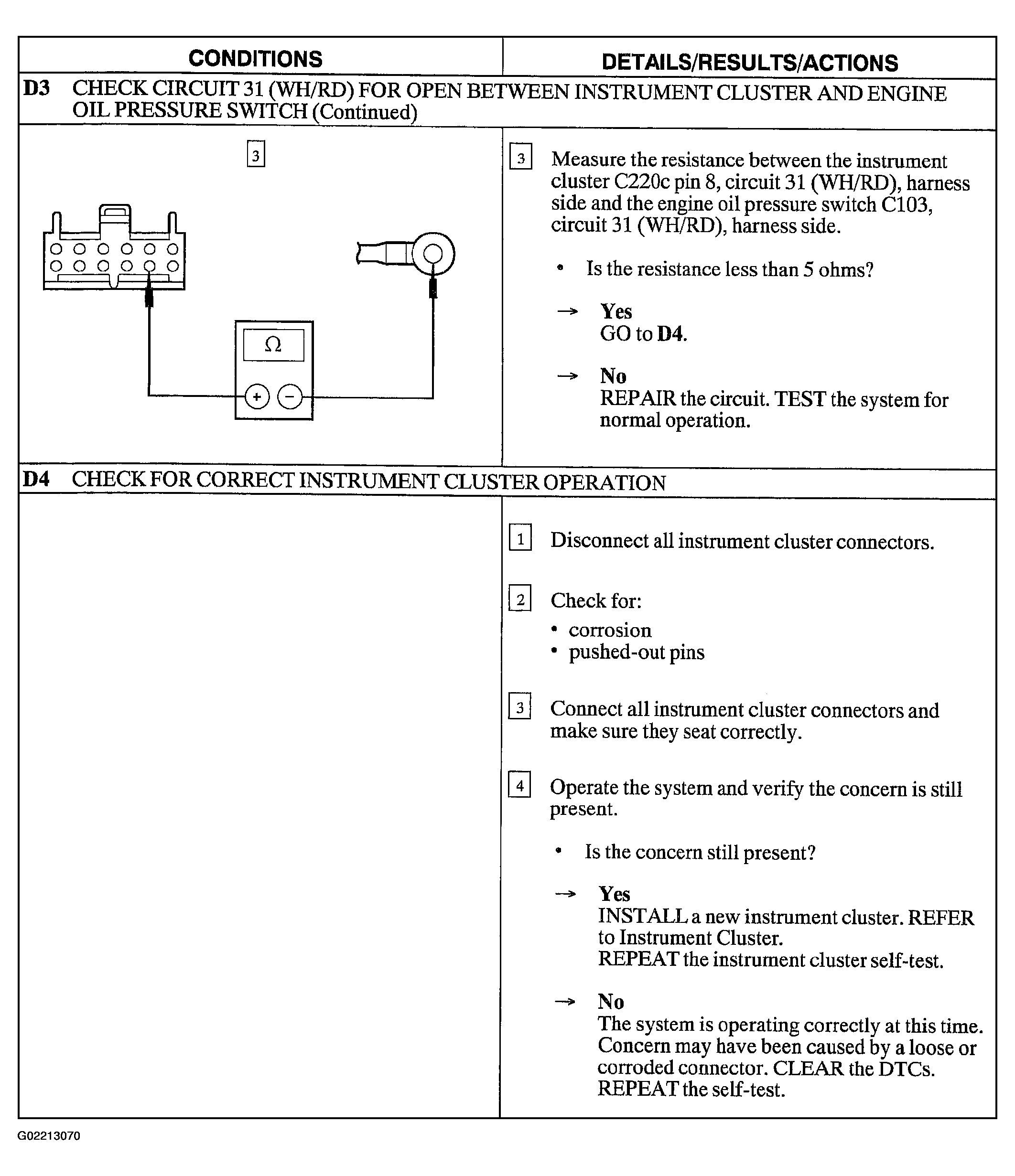

Fig 3: Pinpoint Test D: Incorrect Oil Pressure Gauge Indication (Steps D3 Cont.-D4)

Courtesy of FORD MOTOR CO.
