Pinpoint Test G: The Charging System Warning Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

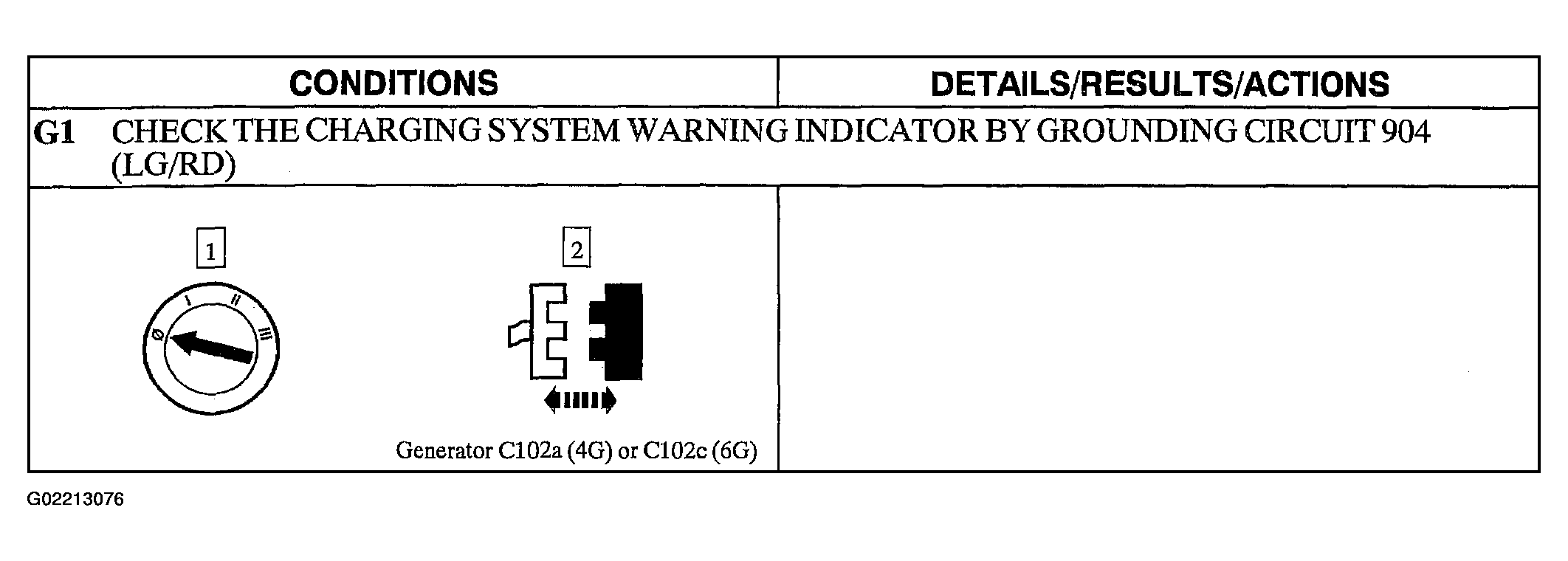

Fig 1: Pinpoint Test G: The Charging System Warning Indicator Is Never On (Step G1)

Courtesy of FORD MOTOR CO.

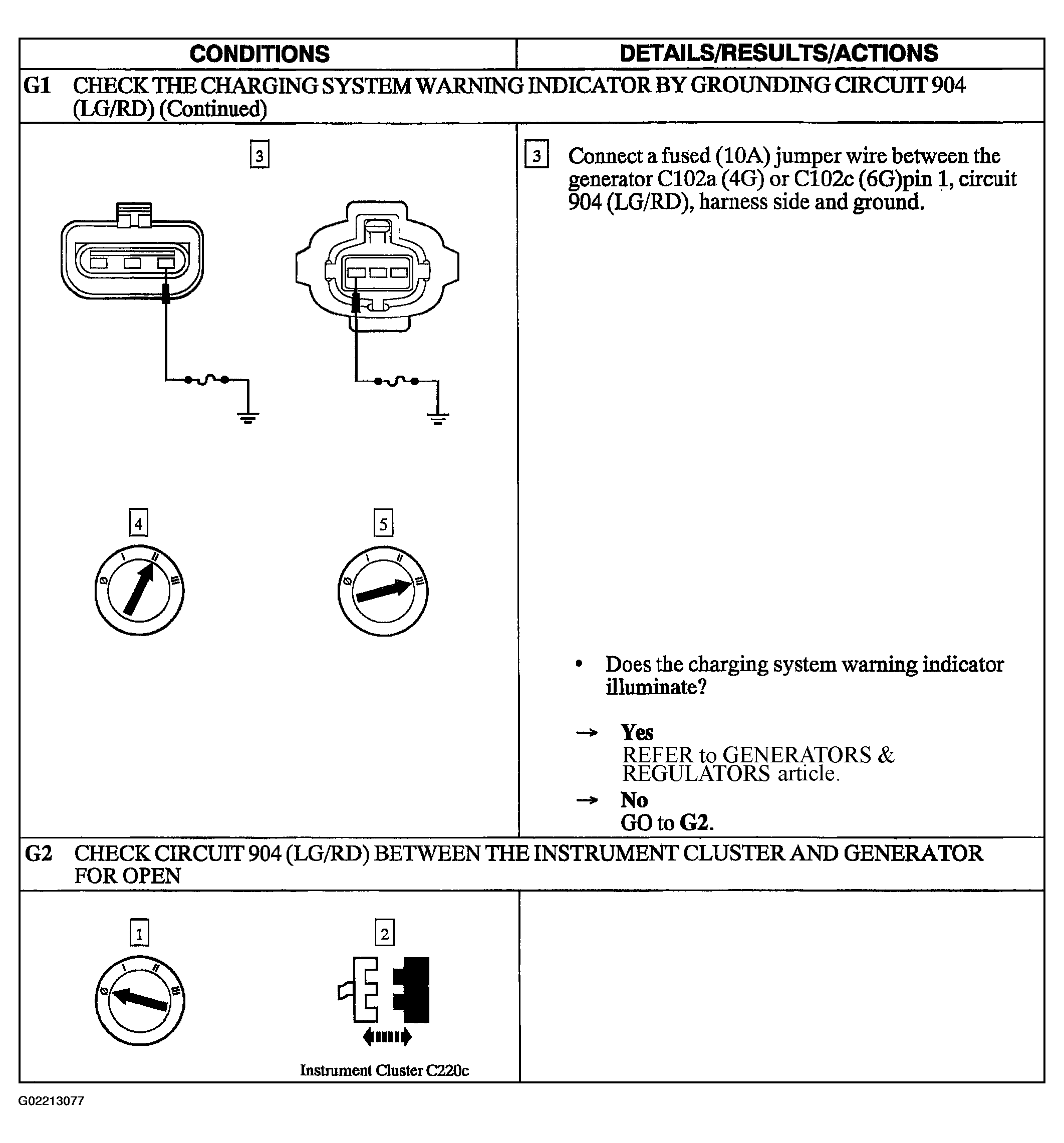

Fig 2: Pinpoint Test G: The Charging System Warning Indicator Is Never On (Steps G1 Cont.-G2)

Courtesy of FORD MOTOR CO.

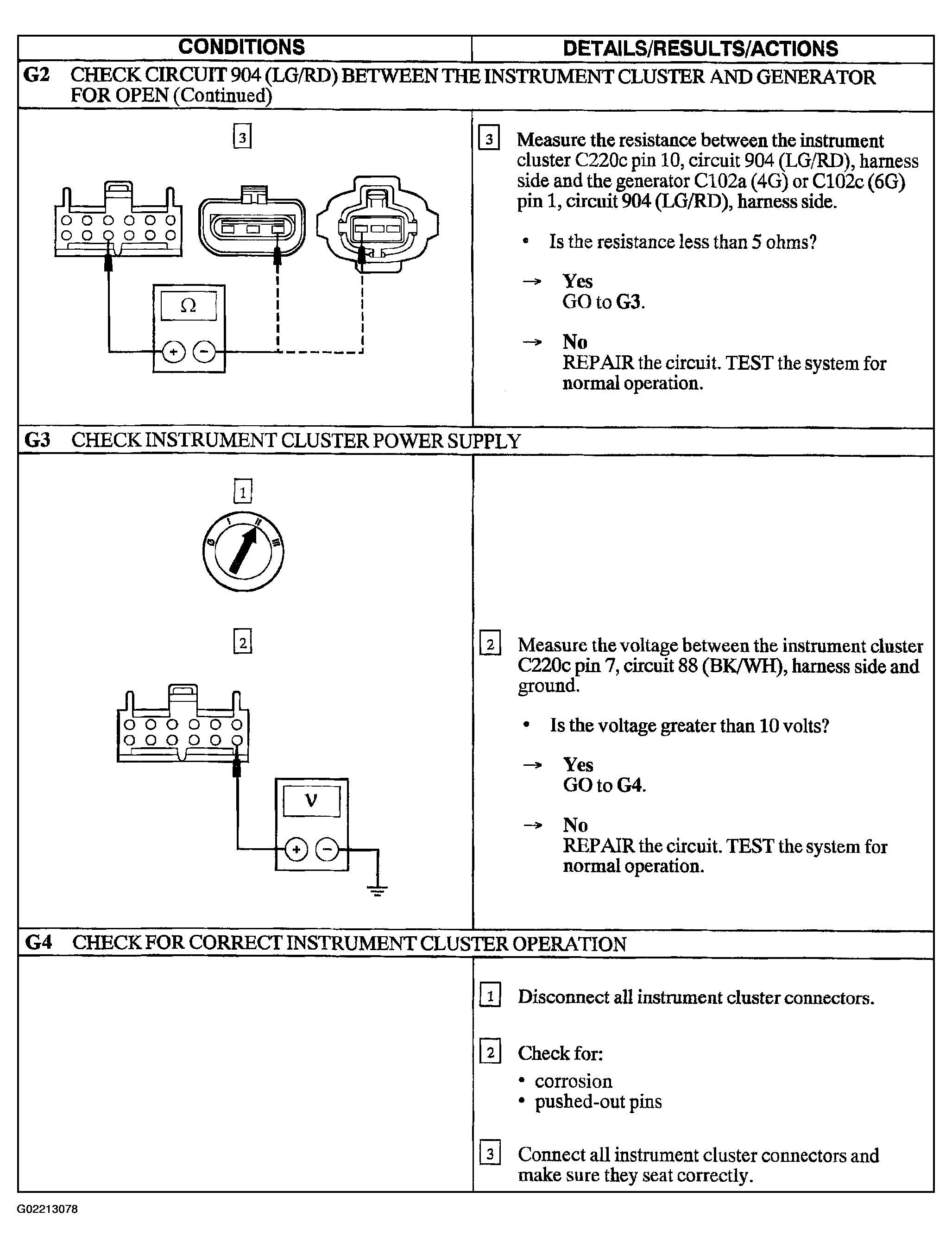

Fig 3: Pinpoint Test G: The Charging System Warning Indicator Is Never On (Steps G2 Cont.-G4.)

Courtesy of FORD MOTOR CO.

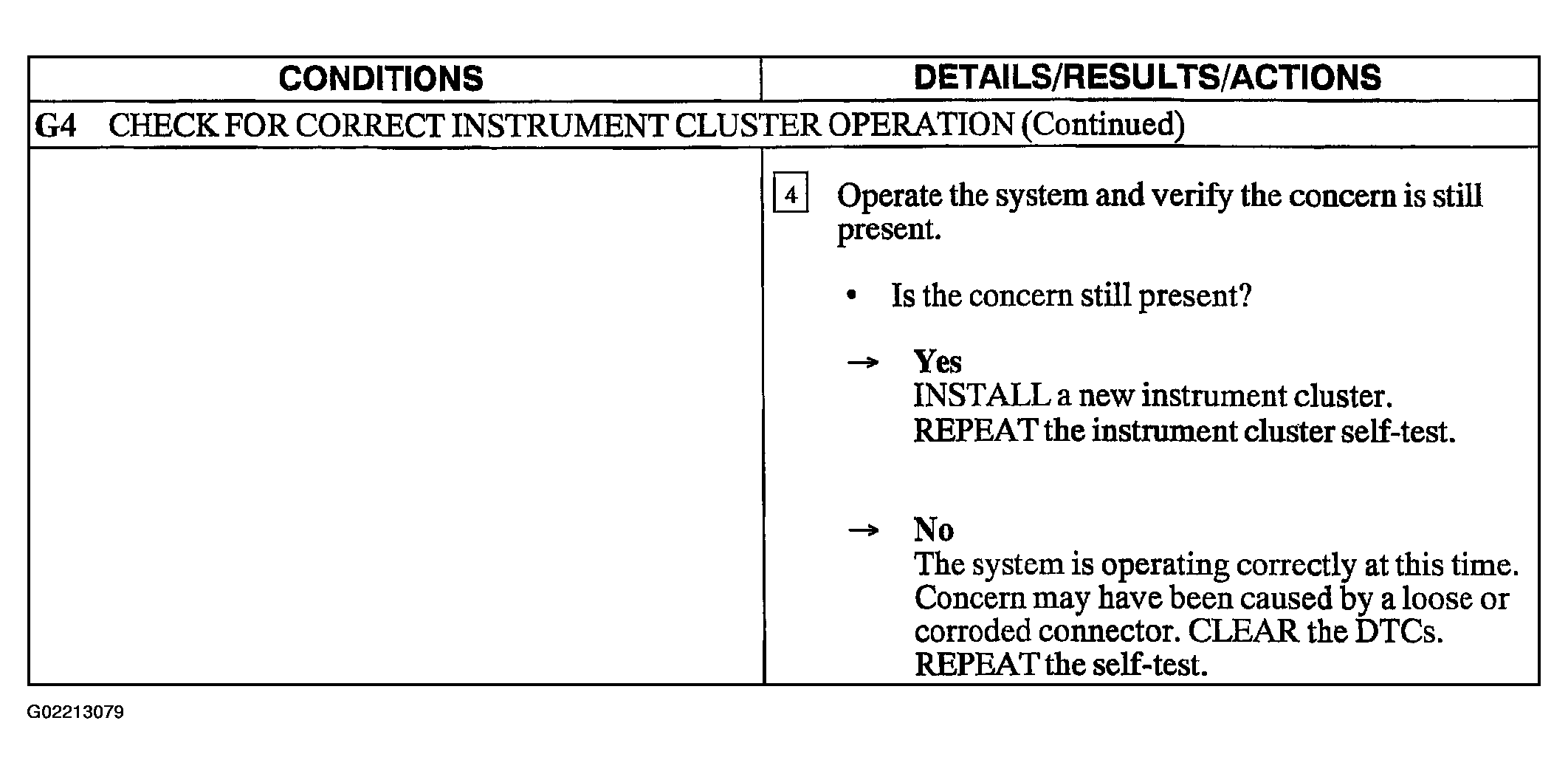

Fig 4: Pinpoint Test G: The Charging System Warning Indicator Is Never On (Step G4 Cont.)

Courtesy of FORD MOTOR CO.
