Pinpoint Test N: The High Beam Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

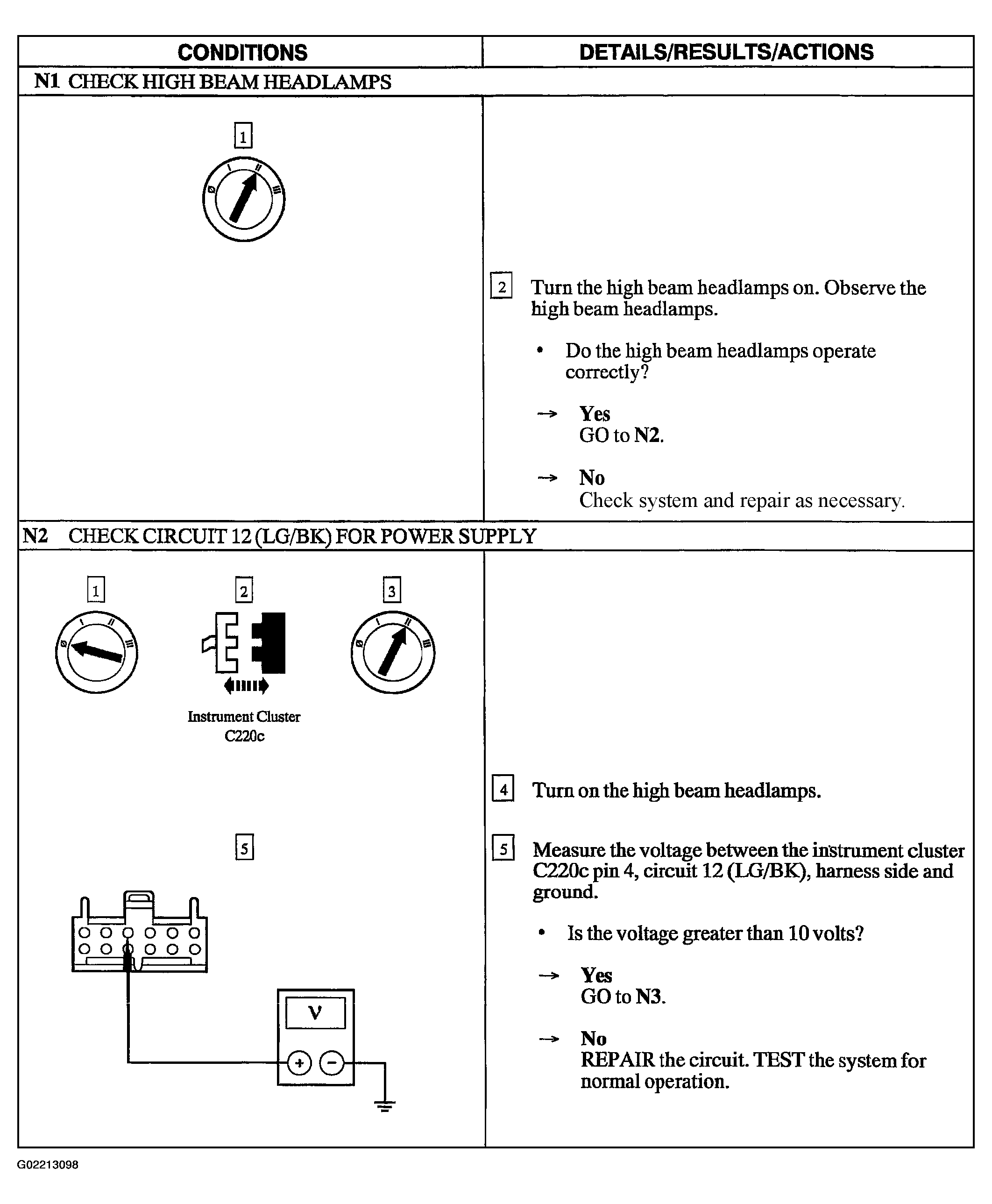

Fig 1: Pinpoint Test N: The High Beam Indicator Is Never On (StepN1-N2)

Courtesy of FORD MOTOR CO.

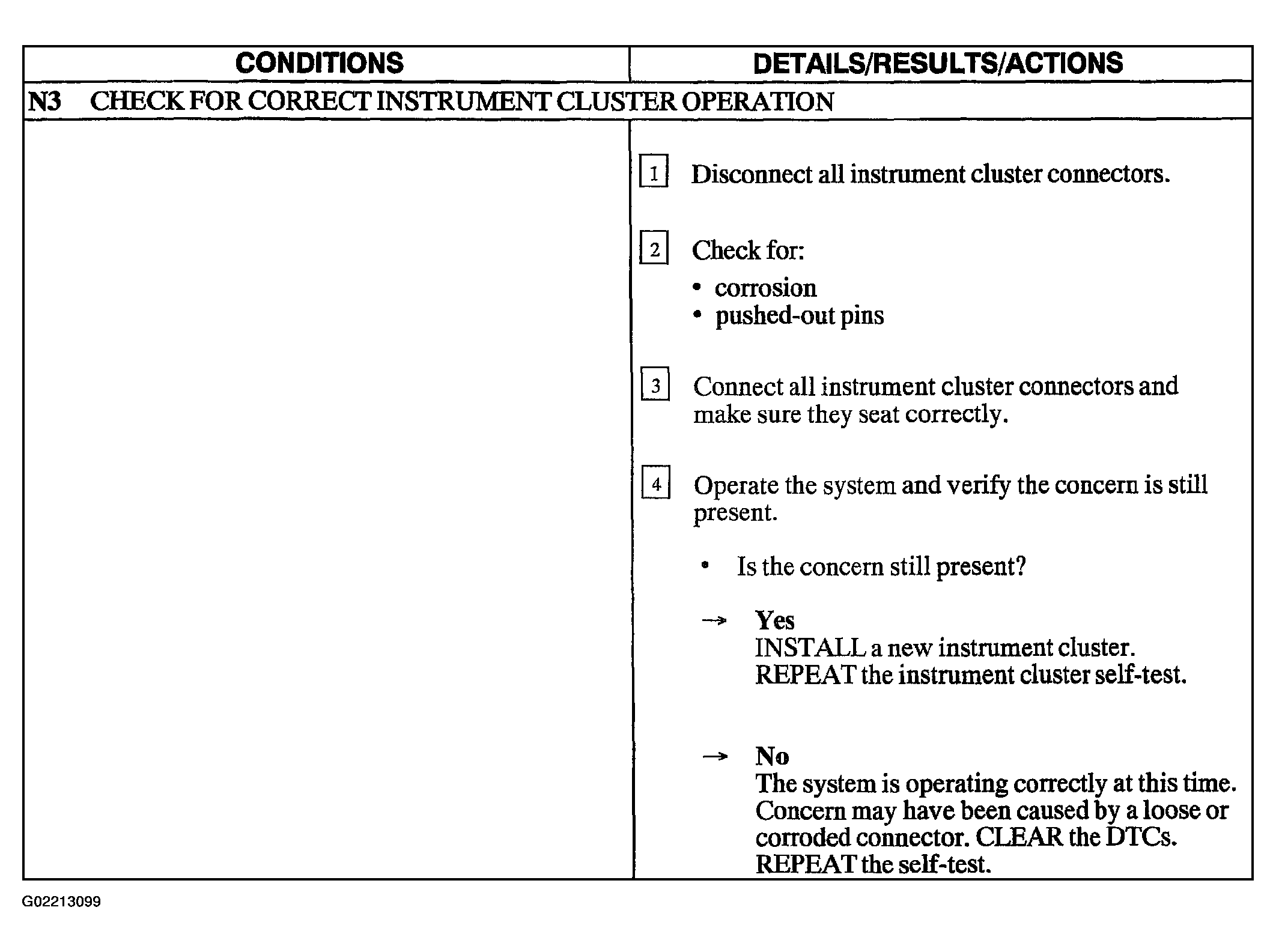

Fig 2: Pinpoint Test N: The High Beam Indicator Is Never On (Step N3)

Courtesy of FORD MOTOR CO.
