Pinpoint Test T: The Trunk Ajar Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

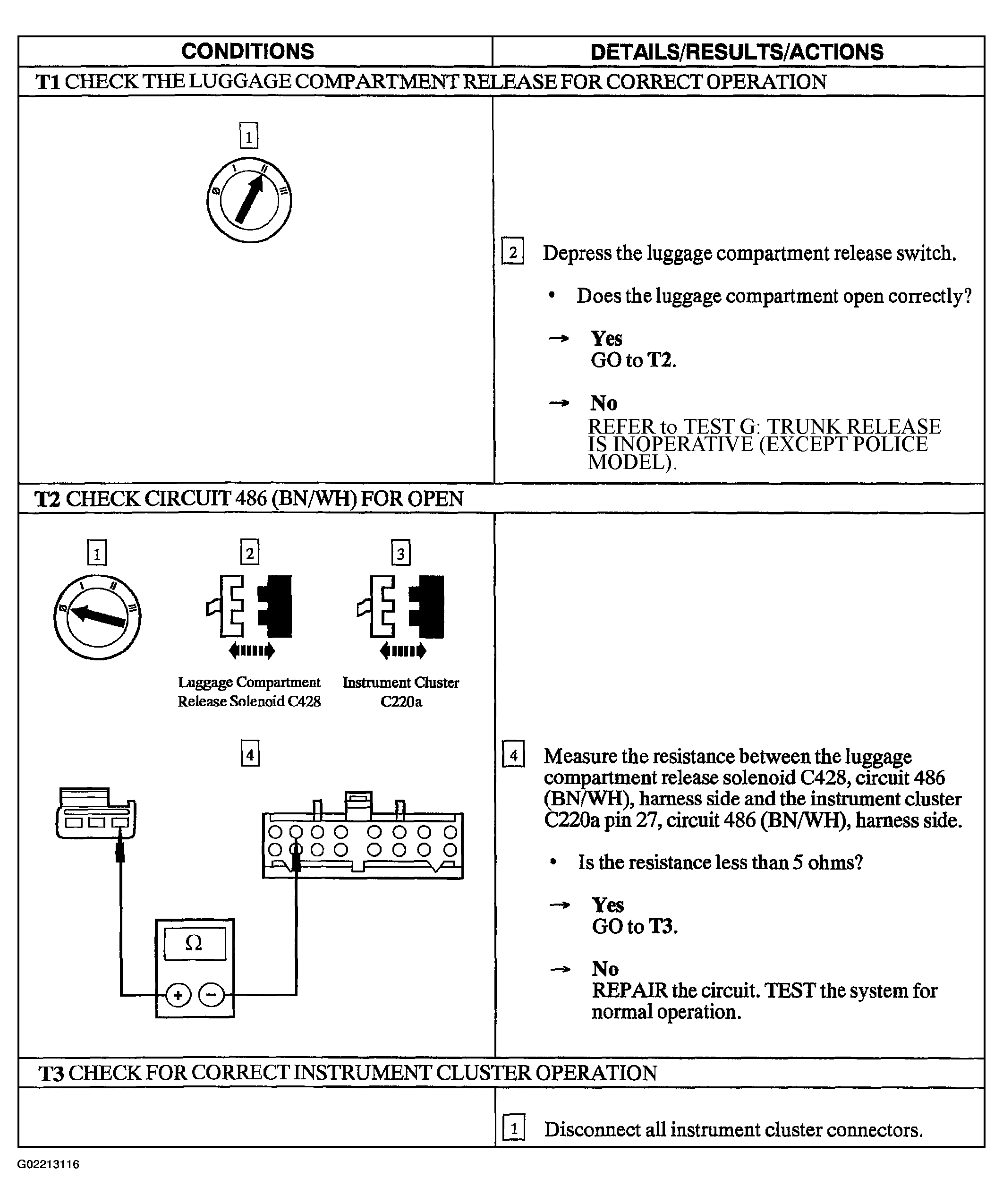

Fig 1: Pinpoint Test T: The Trunk Ajar Indicator Is Never On (Steps T1-T3)

Courtesy of FORD MOTOR CO.

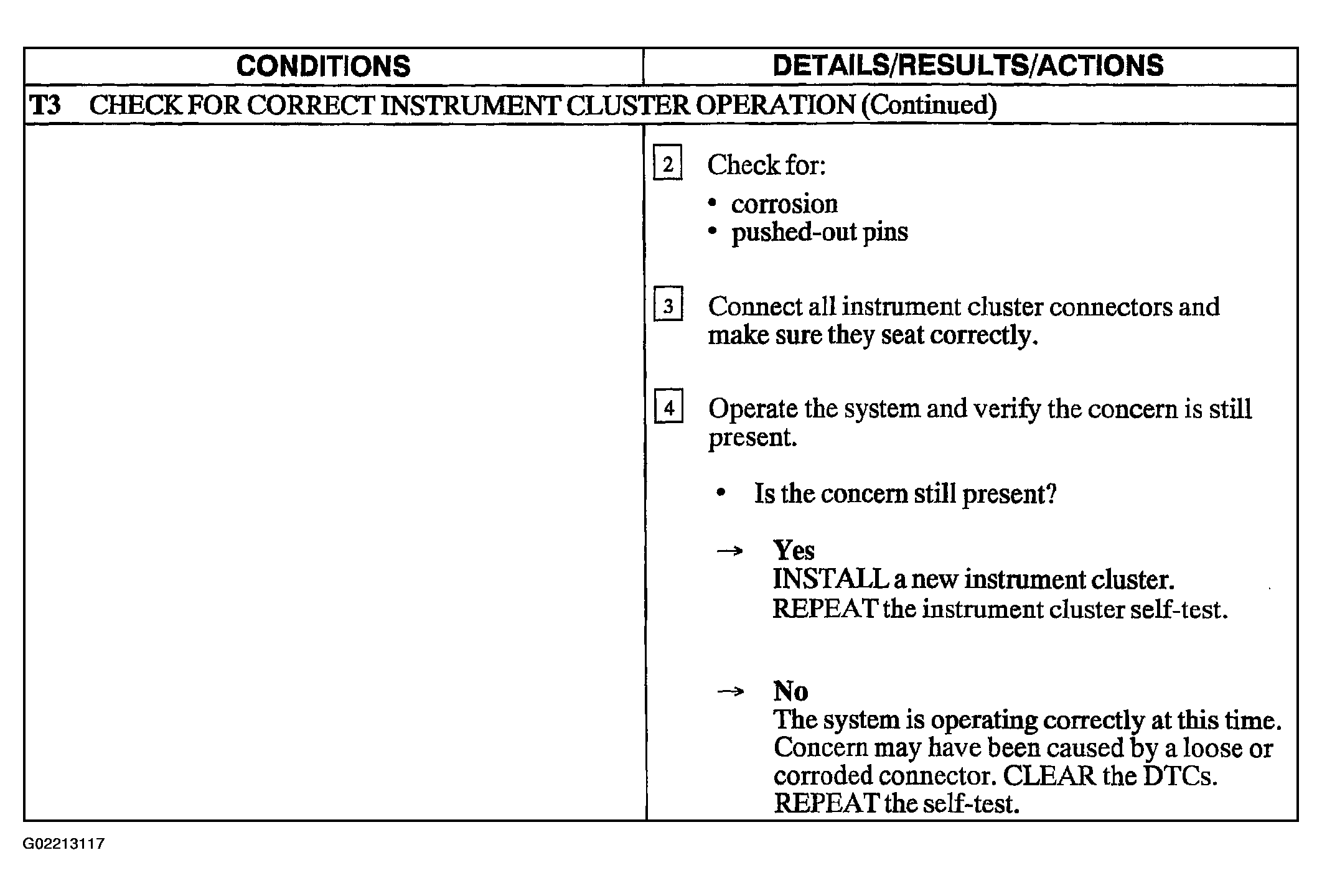

Fig 2: Pinpoint Test T: The Trunk Ajar Indicator Is Never On (Step T3 Cont.)

Courtesy of FORD MOTOR CO.
