Pinpoint Test U: The Low Washer Fluid Indicator Is Never On

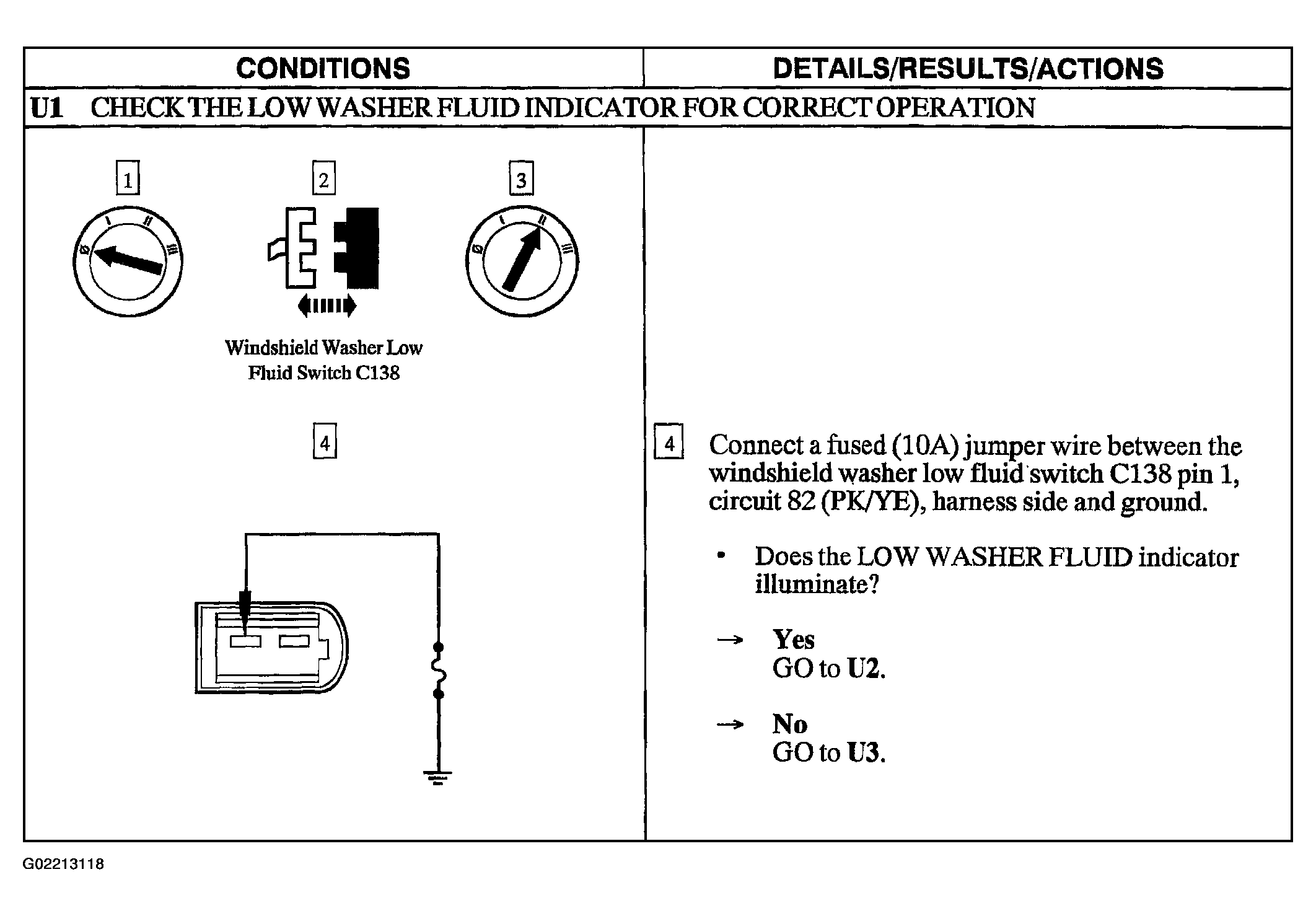

Fig 1: Pinpoint Test U: The Low Washer Fluid Indicator Is Never On (Step U1)

Courtesy of FORD MOTOR CO.

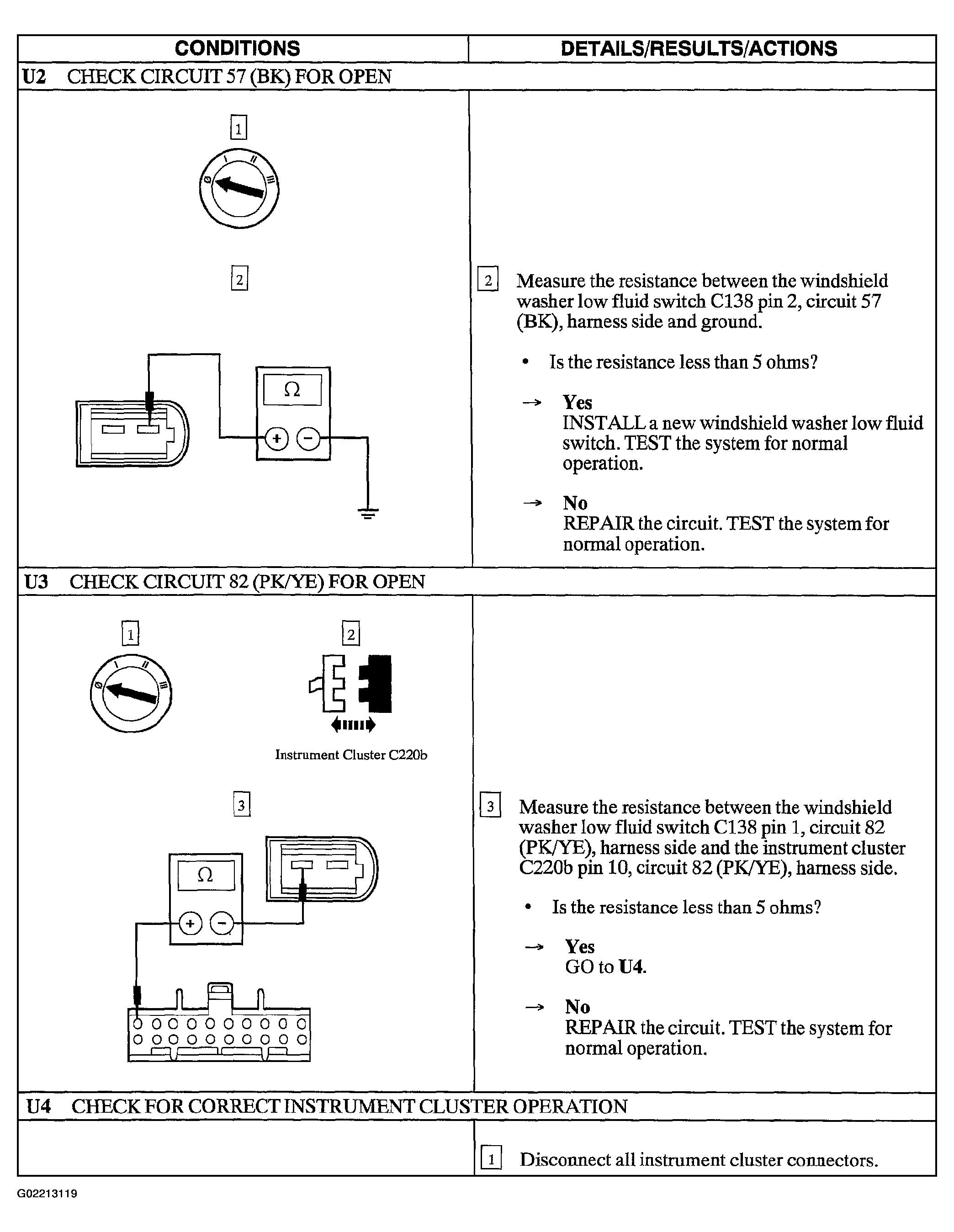

Fig 2: Pinpoint Test U: The Low Washer Fluid Indicator Is Never On (Steps U2-U4)

Courtesy of FORD MOTOR CO.

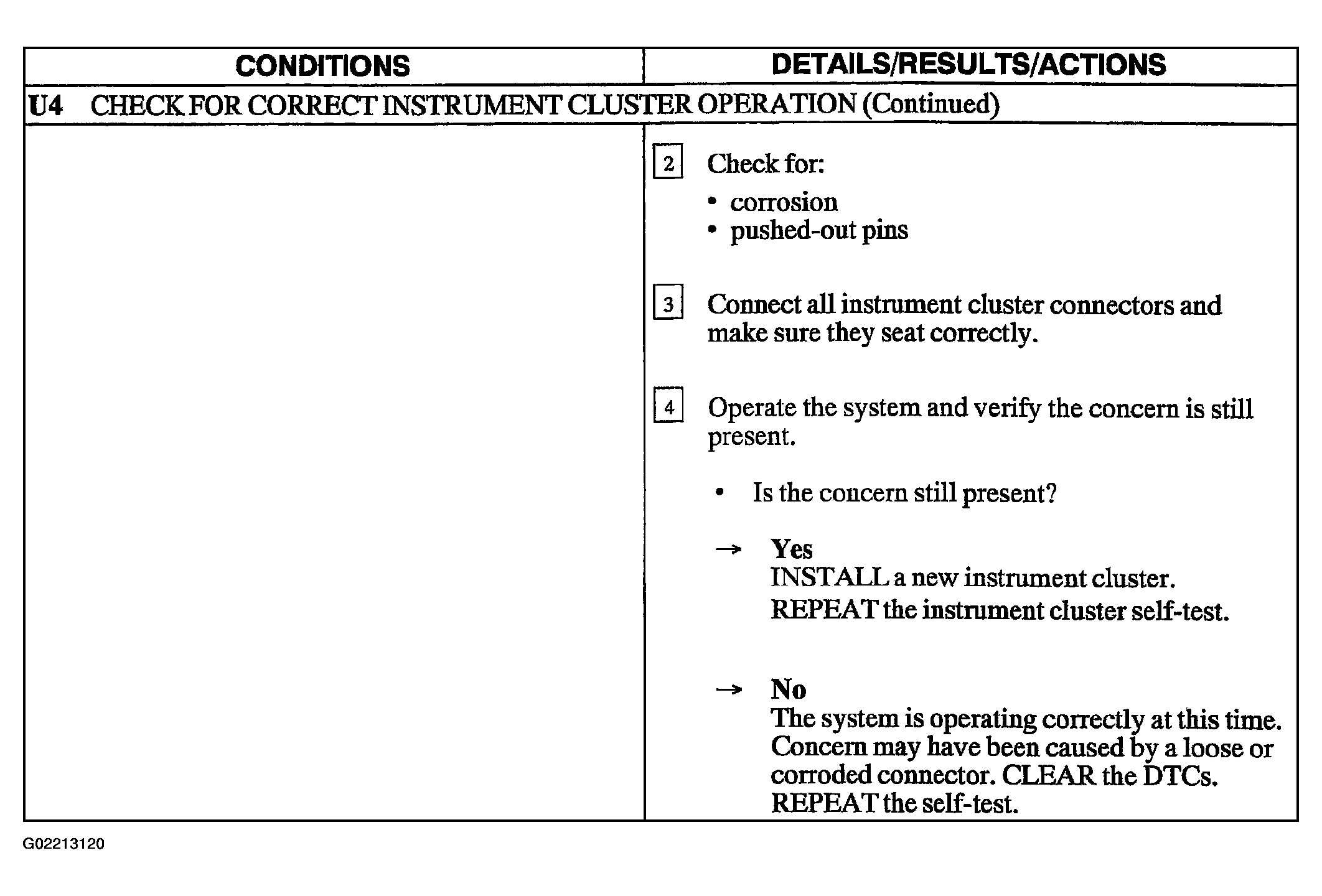

Fig 3: Pinpoint Test U: The Low Washer Fluid Indicator Is Never On (Step U4 Cont.)

Courtesy of FORD MOTOR CO.
