Vehicles Without A Torque Converter Drain Plug

Raise the vehicle on a hoist.
If the vehicle is equipped with an in-line transmission fluid filter, remove and discard the filter.

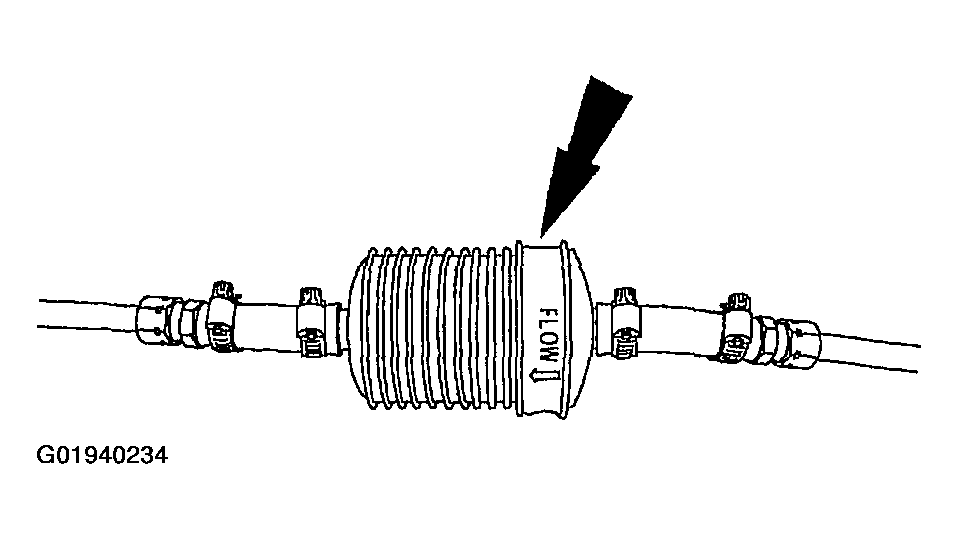

Fig 1: Identifying In-Line Transmission Fluid Filter
Courtesy of FORD MOTOR CO.
Loosen the transmission fluid pan bolts and allow the fluid to drain.

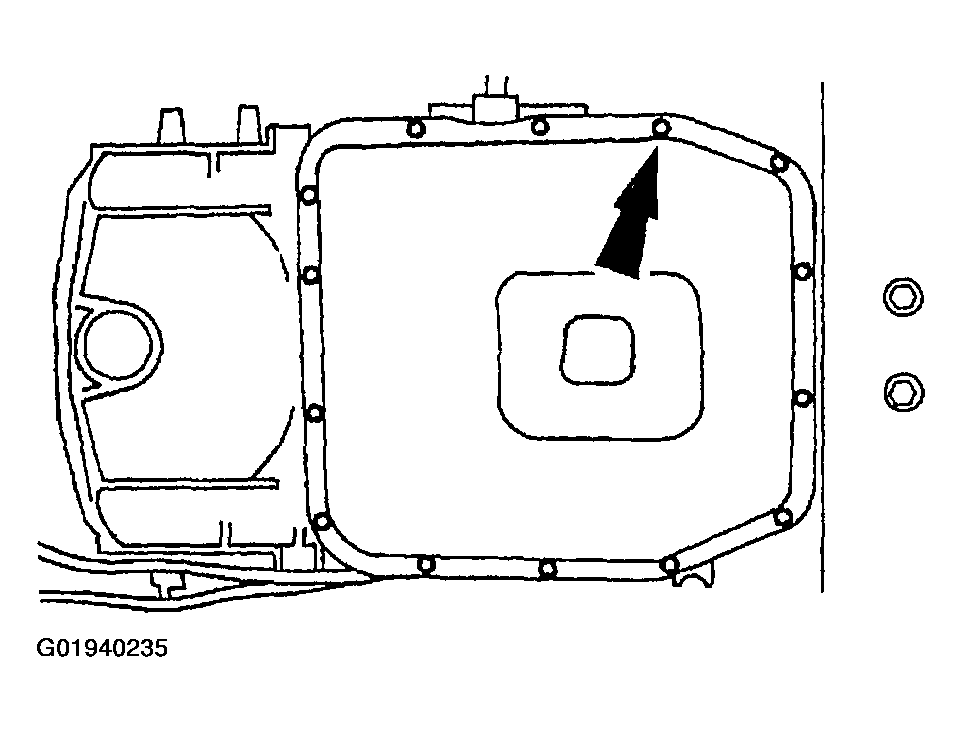

Fig 2: Identifying Transmission Fluid Pan Bolts
Courtesy of FORD MOTOR CO.
After the fluid has drained, remove the transmission fluid pan.

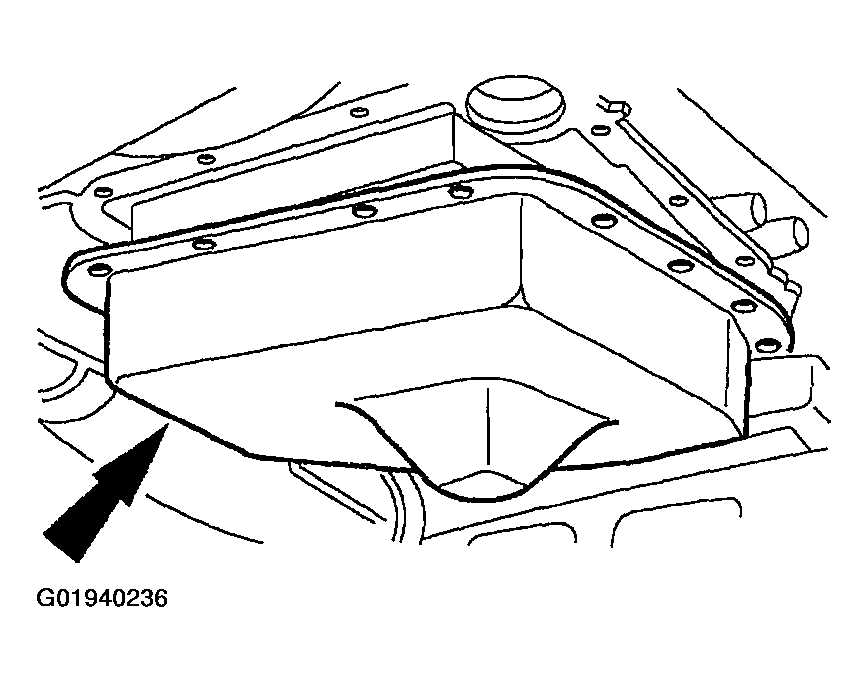

Fig 3: Identifying Transmission Fluid Pan
Courtesy of FORD MOTOR CO.
Do not remove the fluid filter. It is not necessary to change the fluid filter during a normal maintenance fluid change.
Clean and inspect the transmission fluid pan, transmission fluid pan gasket and magnet.

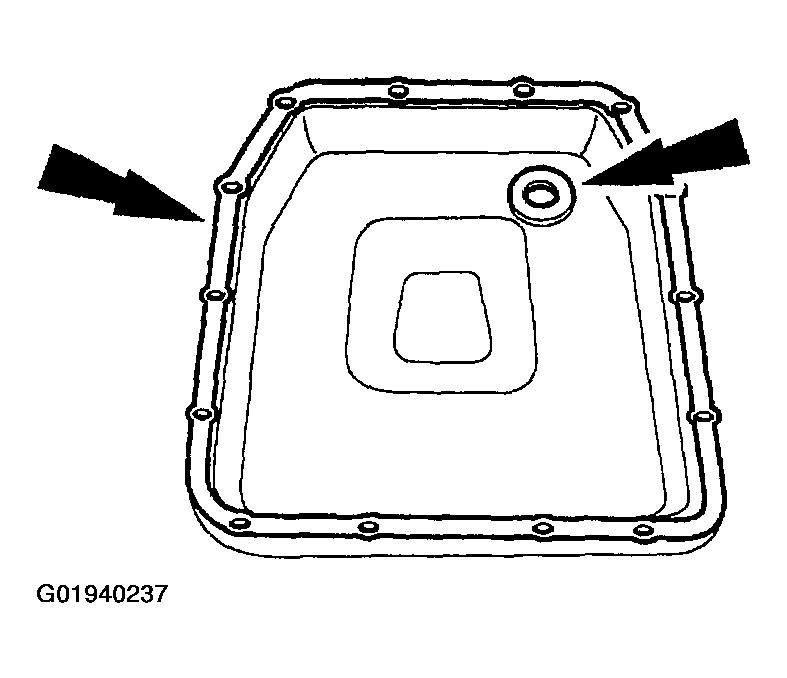

Fig 4: Identifying Transmission Fluid Pan & Magnet
Courtesy of FORD MOTOR CO.
Thoroughly flush the cooler tubes. For additional information, refer to TRANSMISSION FLUID COOLER TUBES - BACKFLUSHING & CLEANING .
Refill
Position the magnet into the transmission fluid pan.

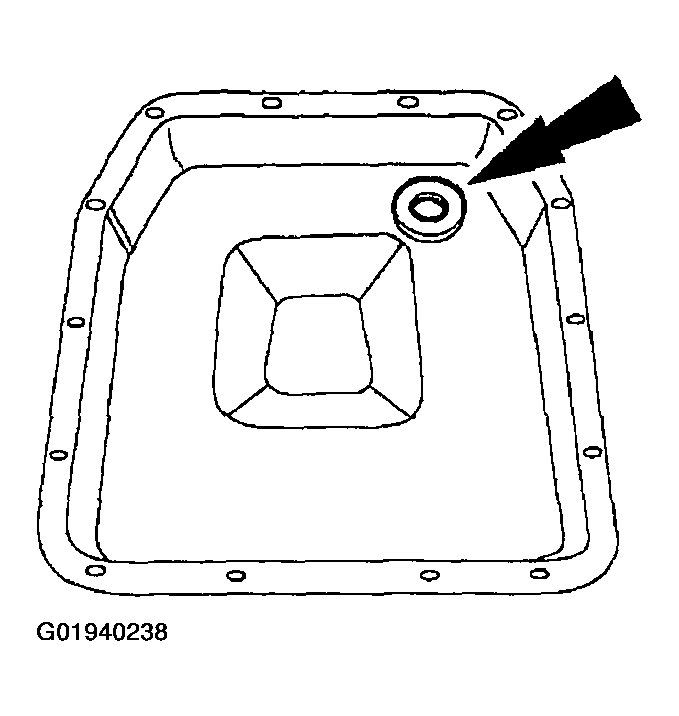

Fig 5: Identifying Transmission Fluid Pan Magnet
Courtesy of FORD MOTOR CO.

NOTE: The fluid pan gasket is reusable, clean and inspect for damage. If not damaged, the gasket should be reused.

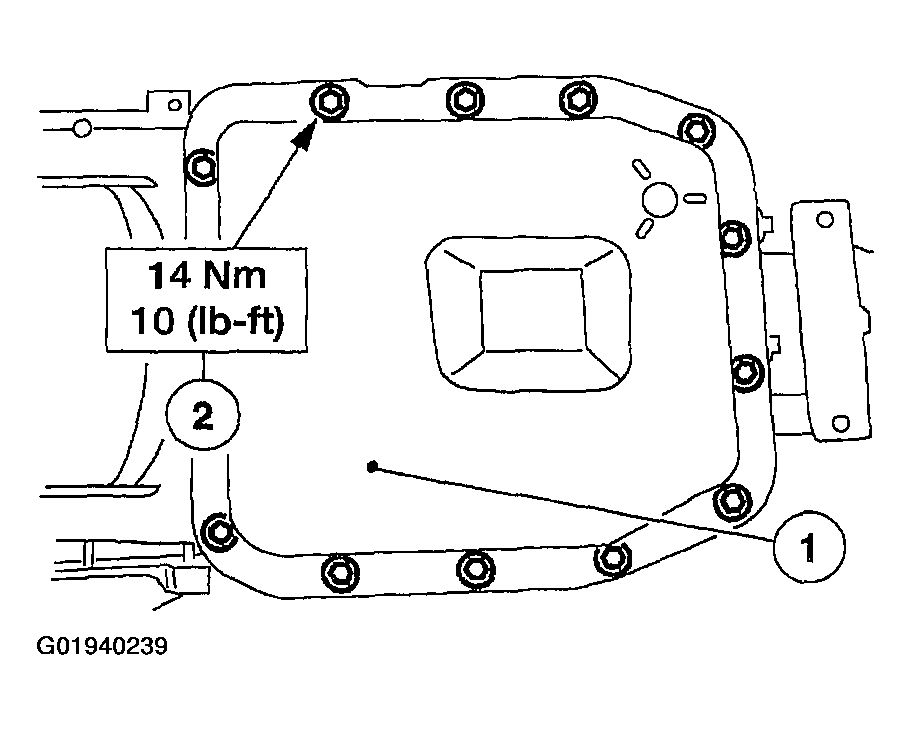

Fig 6: Tightening Transmission Fluid Pan Bolts

Courtesy of FORD MOTOR CO.

Install the fluid pan and gasket.
1. Position the fluid pan with the gasket in place.
2. Install the bolts.

NOTE: If the vehicle was equipped with a fluid filter, install a new filter (XC3Z-7B155-BA).

Fig 7: Identifying In-Line Transmission Fluid Filter

Courtesy of FORD MOTOR CO.

CAUTION: The use of any other transmission fluid can result in the transmission failing to operate in a normal manner or transmission failure.

Fill the transmission.
- Add 4.7 liters (5 qts) of clean automatic transmission fluid to the transmission through the fluid filler tube.
Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
With the engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24 liter (0.5 pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).
