Passive Anti-Theft System (PATS) - Pinpoint Tests
>>
Pinpoint Test U1147-: Faulty SCP Link Or Incorrect Pcm Calibration
Pinpoint Test U1147-: Faulty SCP Link Or Incorrect Pcm Calibration

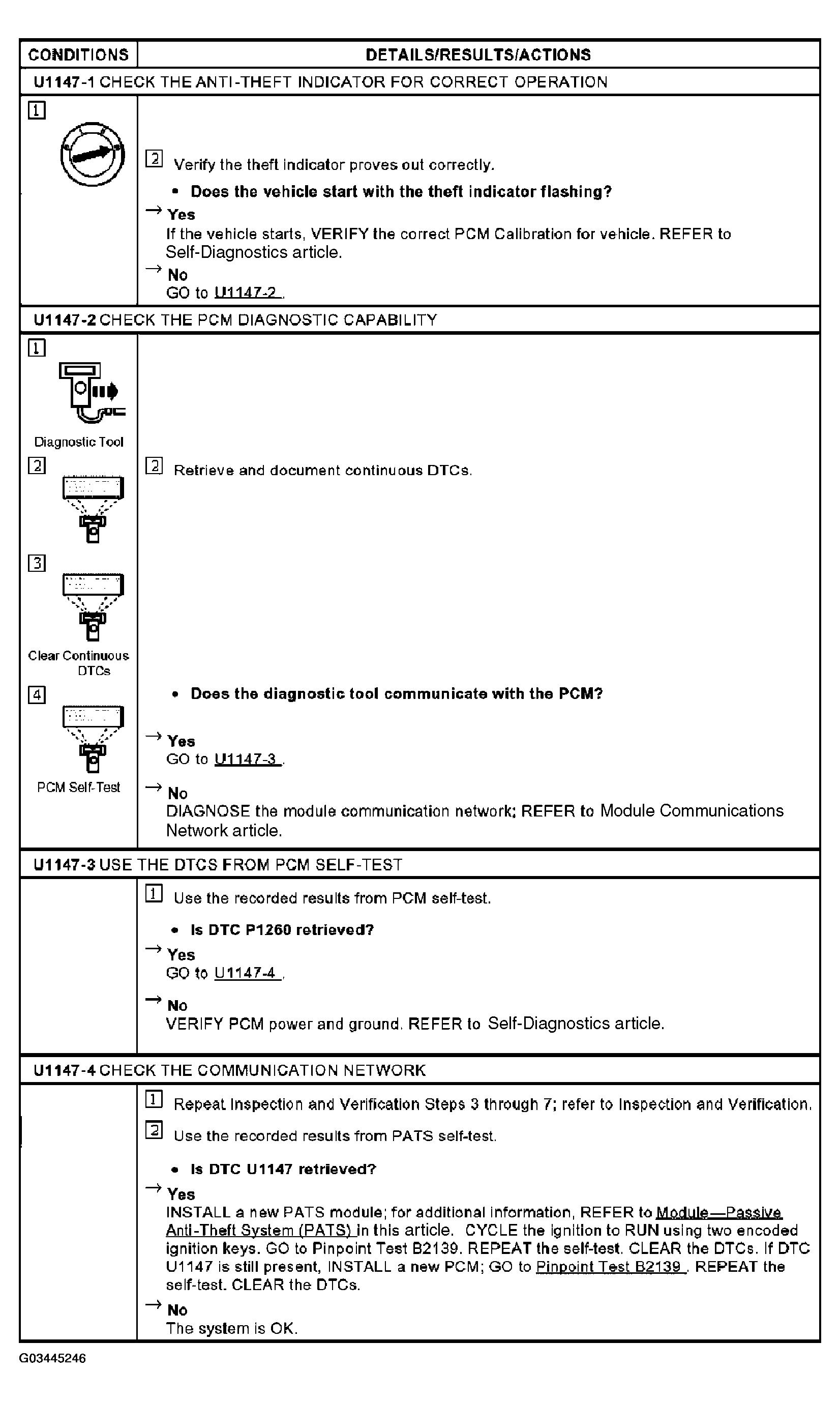

Fig 1: Pinpoint Test U1147-: Faulty SCP Link Or Incorrect PCM Calibration
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
