Special Tool(s)

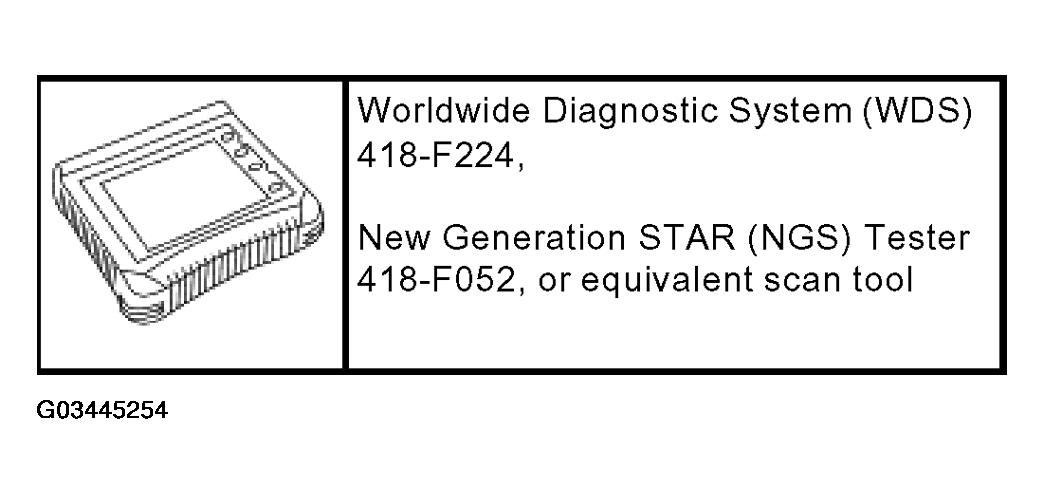

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

NOTE: The Spare Key Programming Switch is a scan tool programmable switch that provides the capability to enable/disable the Spare Key Programming Procedure. This procedure is in the Owner's Guide Spare Key Programming Procedure or in KEY PROGRAMMING - Program a Key Using Two Programmed Keys . This programmable switch is provided as a convenience for rental company fleets or other fleet purchasers who may not want the Spare Key Programming procedure available to the vehicle driver.

NOTE: The spare key programming switch state can be viewed by PATS PID SPARE_KY.

Insert a programmed ignition key into the ignition lock cylinder and turn the ignition switch to RUN.
Enter scan tool. Follow the SECURITY ACCESS PROCEDURE to obtain security access.

NOTE: The default setting on delivery of all new vehicles is < ENABLE >.

From scan tool menu, select SPARE KEY PROGRAMMING SWITCH selection to desired setting:
- < ENABLE > Spare Key Programming Procedure is accessible.
- < DISABLE > Spare Key Programming Procedure is not accessible
