Cruise Control Cable: Installation

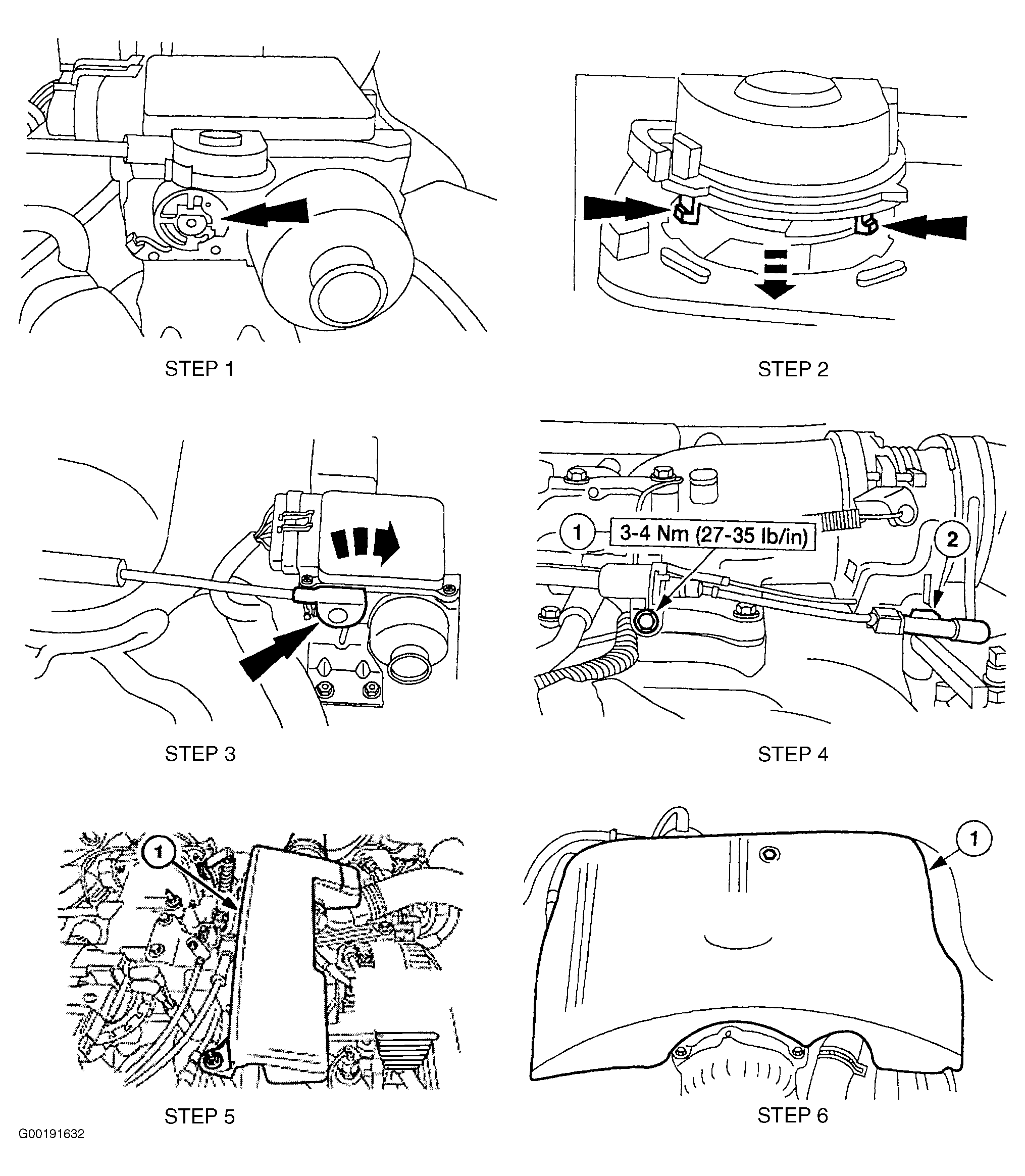

Insert cruise control cable slug into cruise control servo/actuator pulley slot. See STEP 1 in Fig 2. Release compressed spring while aligning cruise control servo/actuator cable cap tabs with slots in cruise control servo housing. See STEP 2 in Fig 2. Rotate cruise control servo/actuator cable cap until locking tab engages. See STEP 3 in Fig 2. Install retaining bolt and connect cruise control servo/actuator cable to throttle lever by snapping into place. See STEP 4 in Fig 2. Tighten cruise control servo/actuator cable retaining bolt to specification. See TORQUE SPECIFICATIONS . Adjust cruise control servo/actuator cable. See CRUISE CONTROL CABLE under ADJUSTMENTS. Position air cleaner resonator and install nut. See STEP 5 in Fig 2. Tighten air cleaner resonator nut to specification. See TORQUE SPECIFICATIONS . Position engine cover and install nut. See STEP 6 in Fig 2. Tighten nut to specification. See TORQUE SPECIFICATIONS .
