DTC B12E3: Electric Steering Lock High Level Failure of MTRCUT1

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A - Refer to: Body Electrical Troubleshooting - B-CAN System Diagnosis Test Mode A - Initial Communication and DTC ChecksBody Electrical Troubleshooting - B-CAN System Diagnosis Test Mode 1 and Test Mode 2 (without the HDS)Body Electrical Troubleshooting - B-CAN System Diagnosis Test Mode B - Control Unit Not CommunicatingBody Electrical Troubleshooting - B-CAN System Diagnosis Test Mode C - No DTCs and Output Won't Shut OFFBody Electrical Troubleshooting - B-CAN System Diagnosis Test Mode D - No DTCs and Output Won't Turn ON .

NOTE:  Before troubleshooting, make sure the No. B4 (15 A) and No. B31 (10 A) fuses in the under-dash fuse/relay box are OK.

• 1. Problem verification:

  1. Clear the DTCs with the HDS.

  2. Do this procedure 10 times: Turn the vehicle to the OFF(LOCK) mode, ACCESSORY mode, ON mode, and OFF(LOCK) mode.

  3. Check for DTCs with the HDS.

  DTC Description	DTC
  B12E3 Electric steering lock high level failure of MTRCUT1

  Is DTC B12E3 indicated?

  YES

  Go to step 2.

  NO

  Intermittent failure, the system is OK at this time. Check for loose or poor connections.

• 2. Open wire check (GND line):

  1. Turn the vehicle to the OFF (LOCK) mode.

  2. Disconnect the following connector.

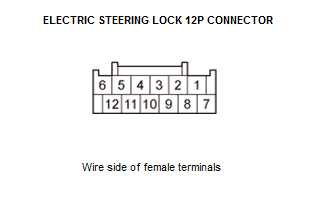

  Electric steering lock 12P connector

  3. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected
  Test point 1	Electric steering lock 12P connector No. 7
  Test point 2	Body ground

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The SGND wire is OK. Go to step 3.

  NO

  Repair an open or high resistance in the ground wire or poor ground (G502).

• 3. Open wire check (MTR CUT1 (CONT) line):

  1. Disconnect the following connector.

  Keyless access control unit connector C (24P)

  2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected Keyless access control unit connector C (24P): disconnected
  Test point 1	Electric steering lock 12P connector No. 2
  Test point 2	Keyless access control unit connector C (24P) No. 14

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The MTR CUT1 (CONT) wire is OK. Replace the steering lock . If the DTC is still present, replace the keyless access control unit .

  NO

  Repair an open or high resistance in the wire.
