Right Side

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Drain the cooling system. Refer to DRAINING AND FILLING THE ENGINE COOLING SYSTEM .
  3. Remove the air cleaner body and ducts. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
  4. Remove the front intake air tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
    GC0175048Courtesy of CHRYSLER GROUP, LLC
  5. Remove the bolts (1a) the band (1b), and the air inlet pipe (1c) complete with O-ring (1d).
    GC0207788Courtesy of CHRYSLER GROUP, LLC

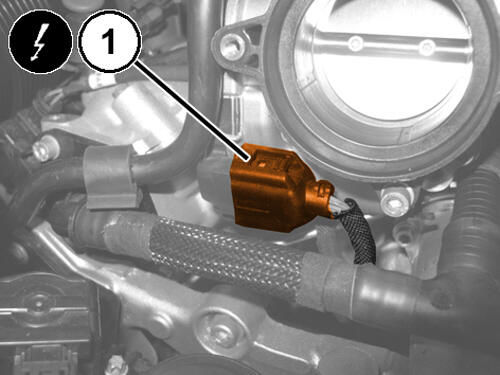

  6. Disconnect the throttle body actuator wire harness connector (1).
    GC0194164Courtesy of CHRYSLER GROUP, LLC

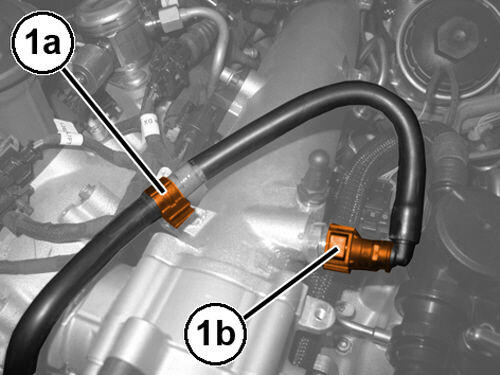

  7. Open the clip (1a) and disconnect the fuel vapor inlet pipe quick connector (1b).
    GC0194703Courtesy of CHRYSLER GROUP, LLC

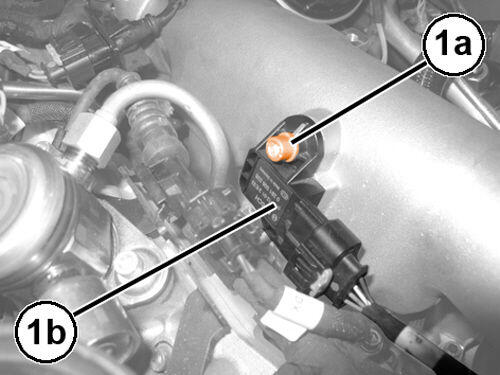

  8. Remove the bolt (1a) and the air temperature/pressure sensor (1b) and position aside.
    GC0194039Courtesy of CHRYSLER GROUP, LLC

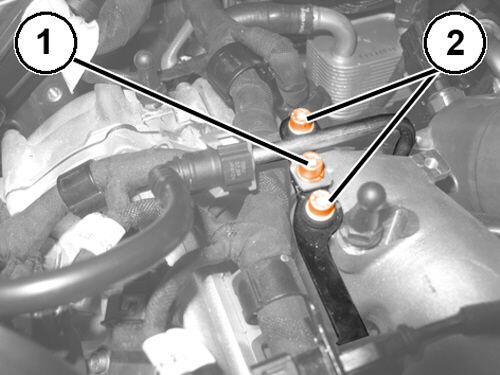

  9. Remove the low pressure fuel pipe bolt (1).
  10. Remove the connector holder bracket bolts (2).
    GC0195061Courtesy of CHRYSLER GROUP, LLC

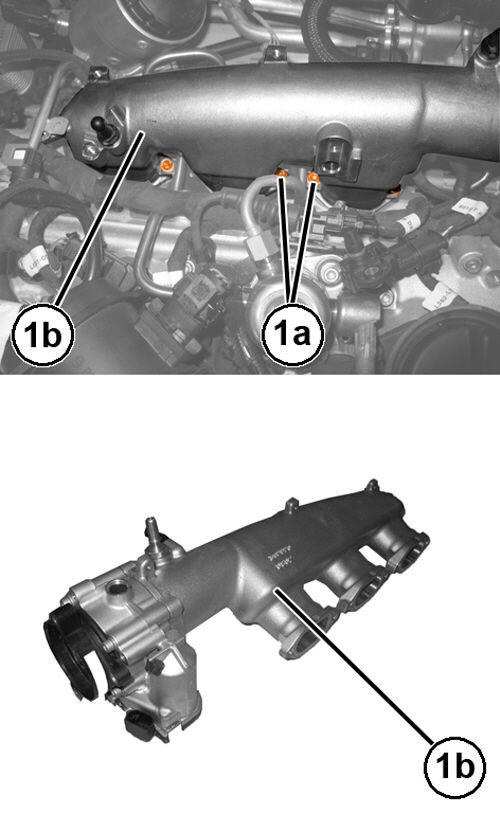

  11. Remove the bolts (1a) and the right intake manifold (1b).
  12. Remove the gasket.
    GC0197705Courtesy of CHRYSLER GROUP, LLC

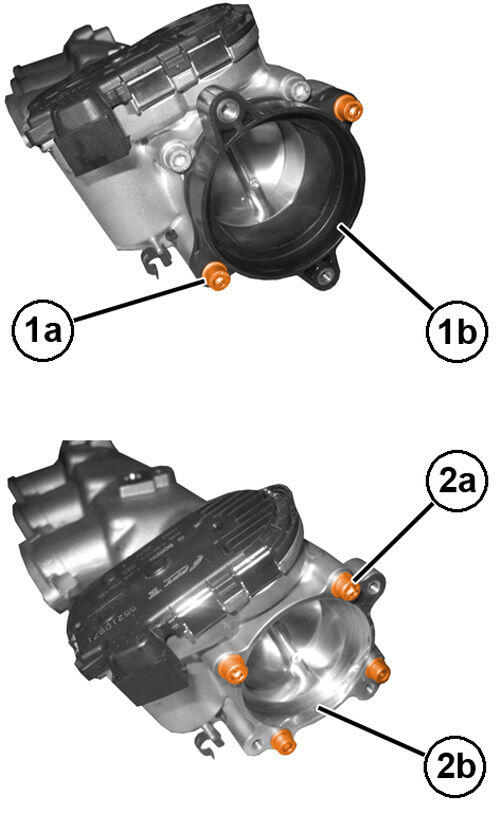

  13. If necessary, remove the bolts (1a) and spacer (1b).
  14. If necessary, remove the bolts (2a) and the throttle body (2b).

INSTALLATION

GC0197977Courtesy of CHRYSLER GROUP, LLC

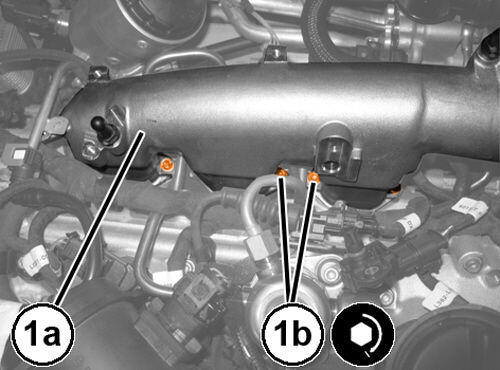

  1. Using a NEW  gasket, install the right intake manifold (1a) onto the locating pins and tighten the bolts (1b) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  2. Install the connector holder bracket bolts and securely tighten.
  3. Install the low pressure fuel pipe bolt and securely tighten.
  4. Install the air temperature/pressure sensor and securely tighten the bolt.
  5. Connect the fuel vapor inlet pipe quick connector and close the retaining clip.
  6. Connect the throttle body actuator wire harness connector.
  7. Install the air inlet pipe and tighten the band and securely tighten the bolts.
  8. Install the front intake air tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
  9. Install the air cleaner body and ducts. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
  10. Fill the cooling system. Refer to DRAINING AND FILLING THE ENGINE COOLING SYSTEM .
  11. Connect the negative battery cable.
