Removal And Installation

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the rear drive shaft. Refer to REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

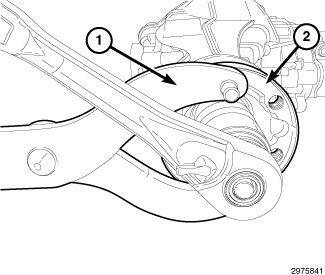

3. Using the output flange (2) holding tool (1), remove the output flange nut.

   Courtesy of CHRYSLER GROUP, LLC

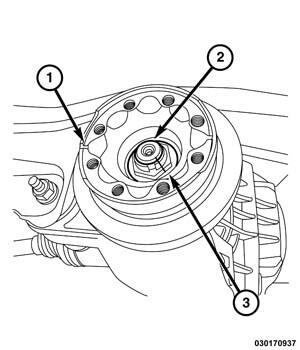

4. Remove the output flange (1).

   Courtesy of CHRYSLER GROUP, LLC

5. Remove the output flange seal (1).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Using the (special tool #2030600030, Installer, Differential Output Seal) (1), install a NEW  output flange seal.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the output flange (1) and output flange nut (2).

   Courtesy of CHRYSLER GROUP, LLC

3. Using the output flange (2) holding tool (1), install the output flange nut and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
4. Install the rear drive shaft. Refer to REMOVAL AND INSTALLATION .
5. Check the main RDU body fluid level and add as needed. Refer to STANDARD PROCEDURE  orREAR DRIVE UNIT (RDU) LEFT BODY FLUID DRAIN AND FILL  or REAR DRIVE UNIT (RDU) RIGHT BODY FLUID DRAIN AND FILL  .
6. Remove the support and lower the vehicle.
