High Pressure - Right

REMOVAL

1. Perform the fuel system pressure release. Refer to FUEL SYSTEM PRESSURE RELEASE  .
2. Disconnect and isolate the negative battery cable.
3. Drain the cooling system. Refer to DRAINING AND FILLING THE ENGINE COOLING SYSTEM .
4. Remove the right side intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

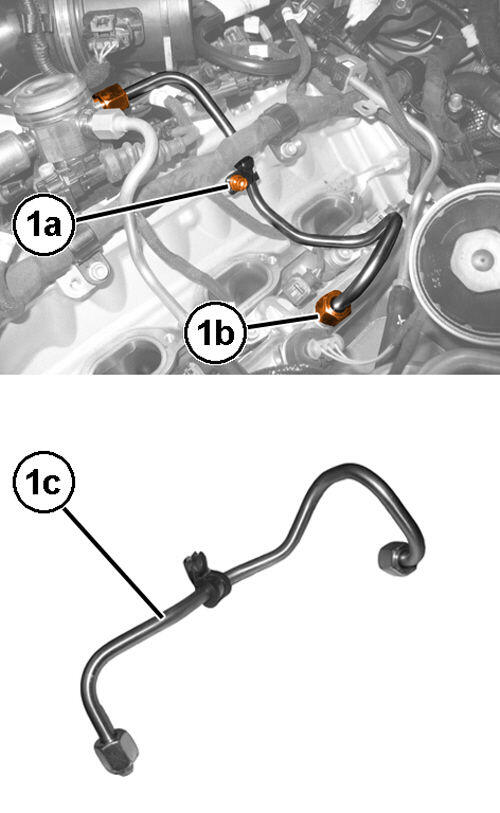

5. Remove the screw (1a) and the fittings (1b) then, remove the high pressure pipe from pressure pump to right fuel manifold pipe (1c).
   NOTE:

   Once removed, a new high pressure pipe must be used.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

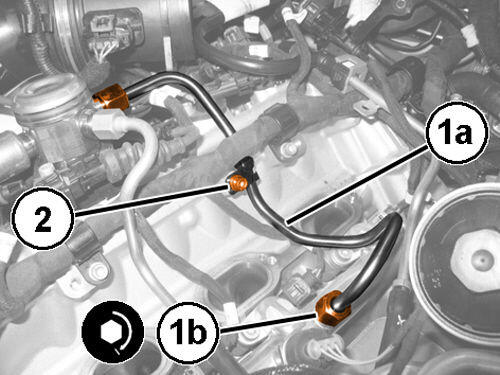

1. Place a NEW  high pressure pipe from the pressure pump to the right cylinder head fuel manifold pipe (1a) back in its housing and tighten the connectors (1b) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
2. Securely tighten the screw (2) securing the high pressure pipe support bracket to the tappet cover.
3. Install the right side intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL AND INSTALLATION .
4. Fill the cooling system. Refer to DRAINING AND FILLING THE ENGINE COOLING SYSTEM .
5. Connect the negative battery cable.
