Ht- LT Primary Radiators: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the left front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
  3. Remove the belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION or BELLY PAN, REAR, REMOVAL AND INSTALLATION or BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
  4. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  5. Drain the cooling system. Refer to DRAINING AND FILLING THE ENGINE COOLING SYSTEM  .
  6. Remove the A/C condenser. Refer to CONDENSER, A/C, REMOVAL AND INSTALLATION .
    GC0197661Courtesy of CHRYSLER GROUP, LLC
  7. Release the retaining clip (1a) and remove the quick coupling (1b) of the water supply pipe to the radiator.
  8. Release the retaining clip (2a) and remove the quick coupling (2b) of the water supply pipe to the heat exchanger cooling system radiator.
    GC0197544Courtesy of CHRYSLER GROUP, LLC
  9. Release the retaining clip (1a) and remove the quick coupling (1b) of the water outlet pipe from the radiator.
  10. Release the retaining clip (2a) and remove the quick coupling (2b) of the water outlet pipe from the heat exchanger cooling system radiator.
    GC0197510Courtesy of CHRYSLER GROUP, LLC
  11. Remove the clamp (1a) and degassing pipe (1b) from heat exchanger cooling system radiator.
    GC0095257Courtesy of CHRYSLER GROUP, LLC
  12. Using the (special tool #C-4829A, Remover, Trim) tool (1a) to release the wiring retaining clips (1b).
    GC0095258Courtesy of CHRYSLER GROUP, LLC
  13. Disconnect the cooling fan wire harness connector (1).
    GC0198573Courtesy of CHRYSLER GROUP, LLC
  14. Remove the radiator support mounts bolts on both sides.
    GC0198536Courtesy of CHRYSLER GROUP, LLC
  15. Release the retaining clip (1a) and remove the bolt (1b) securing the multi-way inlet hose to the water pump of the heat exchanger cooling system (1c).
    GC0198241Courtesy of CHRYSLER GROUP, LLC
  16. Remove the complete engine coolant radiator (1), releasing the lower pins from the support brackets flexible mountings.
    GC0198400Courtesy of CHRYSLER GROUP, LLC

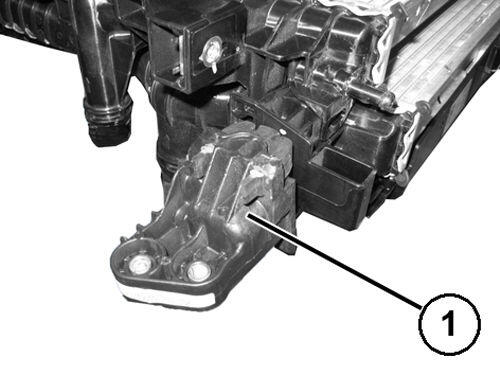

  17. Remove the radiator support flexible mounting (1).
    GC0198465Courtesy of CHRYSLER GROUP, LLC

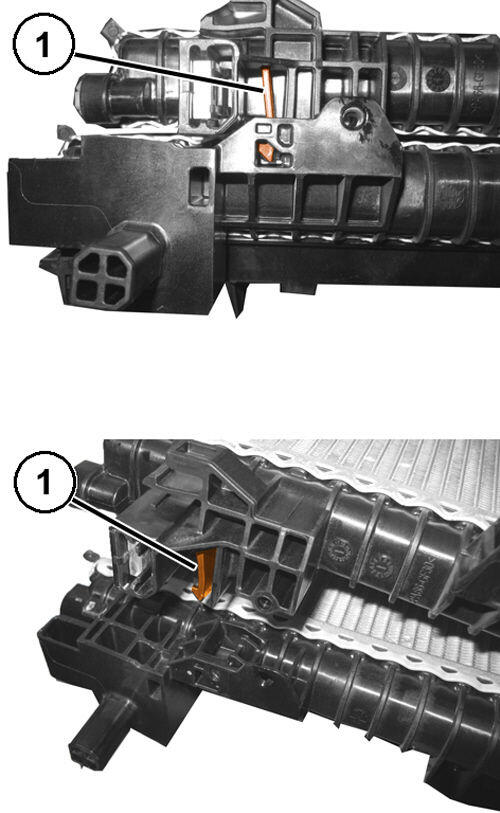

  18. Release the retaining clips (1) on both sides and remove the turbocharger air water cooling system radiator.
    GC0197865Courtesy of CHRYSLER GROUP, LLC

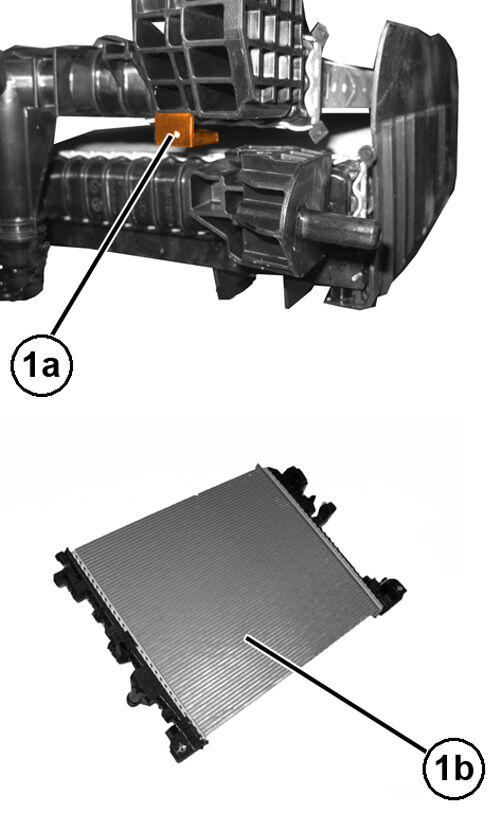

  19. Release the lower retaining clips (1a) and remove the turbocharger air water cooling system radiator (1b).
    GC0198024Courtesy of CHRYSLER GROUP, LLC
  20. Remove the bolts (1a) and lower air duct (1b) from the fan.
    GC0198414Courtesy of CHRYSLER GROUP, LLC
  21. Release the retaining clips (1a) and remove the fan from the lower clip (1b).
    GC0197897Courtesy of CHRYSLER GROUP, LLC
  22. Remove the fan (1a) from the radiator (1b).
    GC0207805Courtesy of CHRYSLER GROUP, LLC

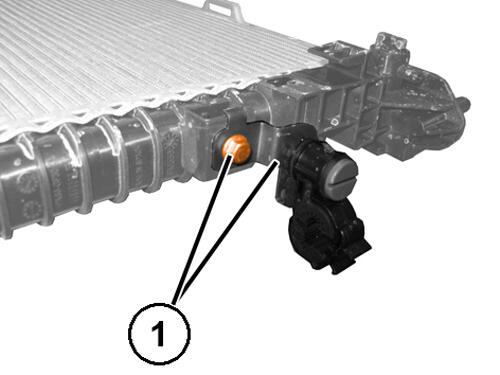

  23. Remove the bolt and pipe support bracket from the condenser to the intermediate fitting.
