Ht Secondary Radiator: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
- Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
- Drain the cooling system. Refer to DRAINING AND FILLING THE ENGINE COOLING SYSTEM
.

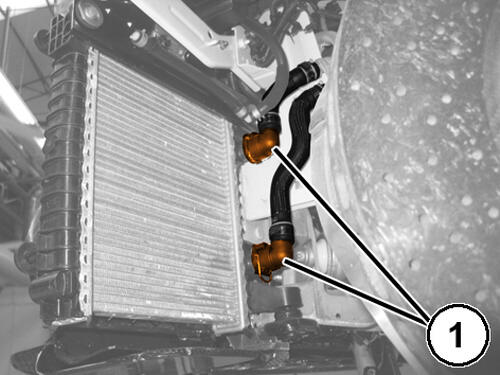

- Remove the quick couplings for the secondary engine coolant radiator water supply and return hoses (1).

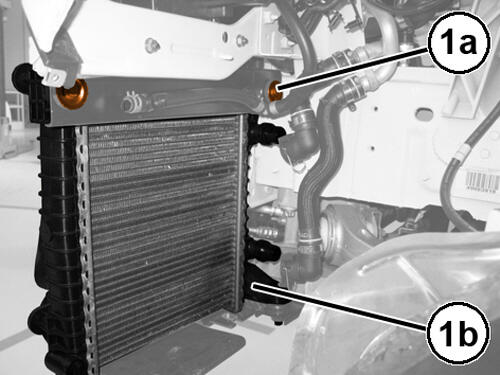

- Remove the bolts (1a) and the secondary engine coolant radiator releasing it from the flexible mounting (1b).

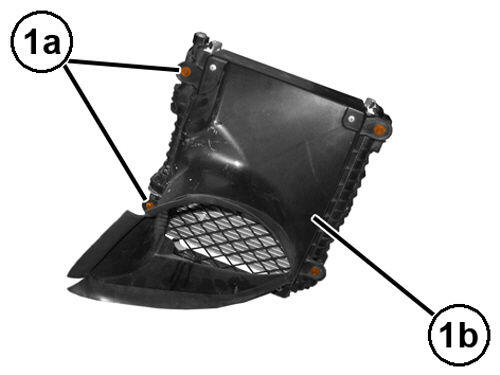

- Remove the bolts (1a) and the air duct (1b) from the additional engine coolant radiator.
